DATASHEET

MACHINE DETAILS

Stock No.
1022-H09042
Machinetype
CNC Turning- and Milling Center
Make
NILES-SIMMONS
Type
N 40 MC
Year of construction
2019
Control
CNC
Location
south of germany
Country of origin
Germany
Delivery time
To be discussed
Quotation
ex foundation
Price

TECHNICAL DETAILS



turning diameter
820 (Umlauf) mm
turning length
6000 mm
control
Siemens 840 Si D sl
total power requirement
155 kVA
weight of the machine ca.
65 t
dimensions of the machine ca.
16350 x 3700 x 3850 mm


DESCRIPTION

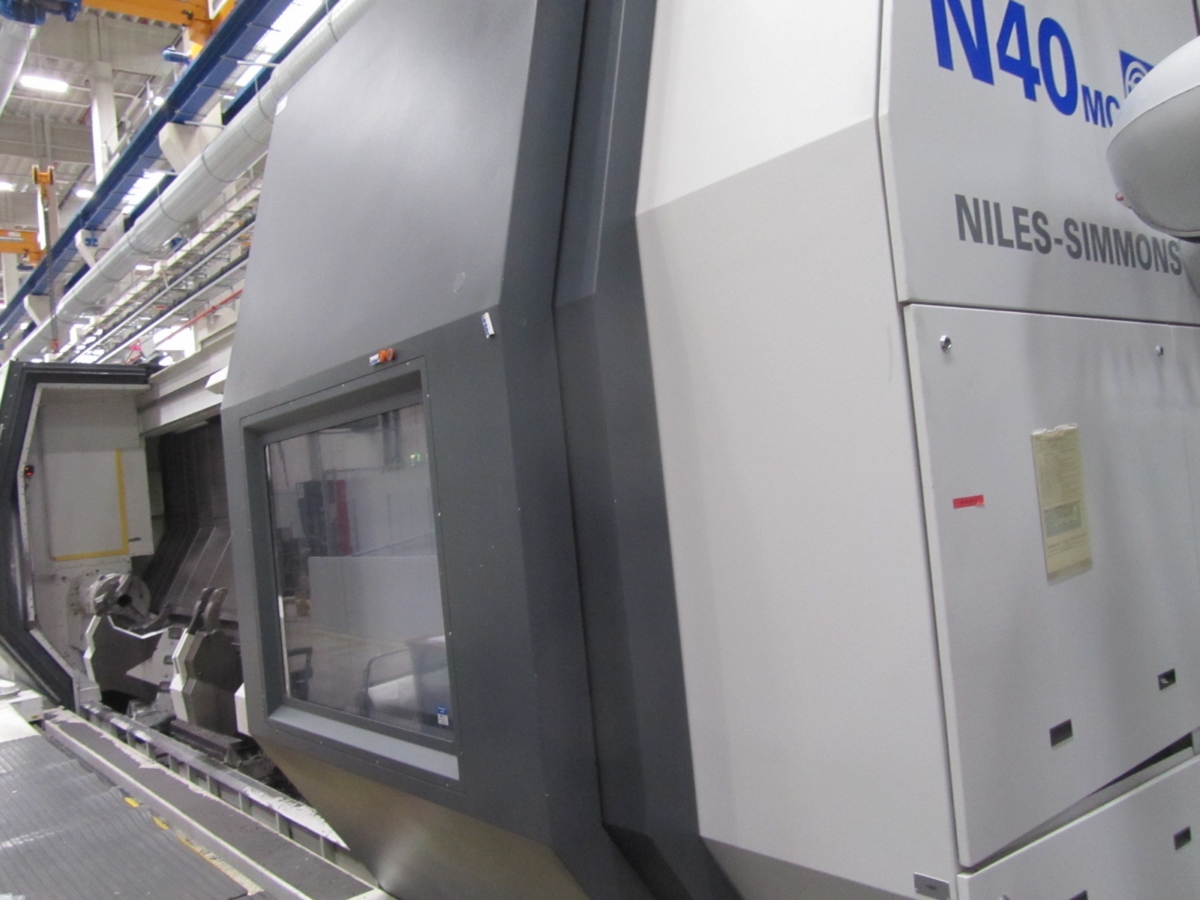

Turning and Milling Machining Center N40MC

Technical Specifications:

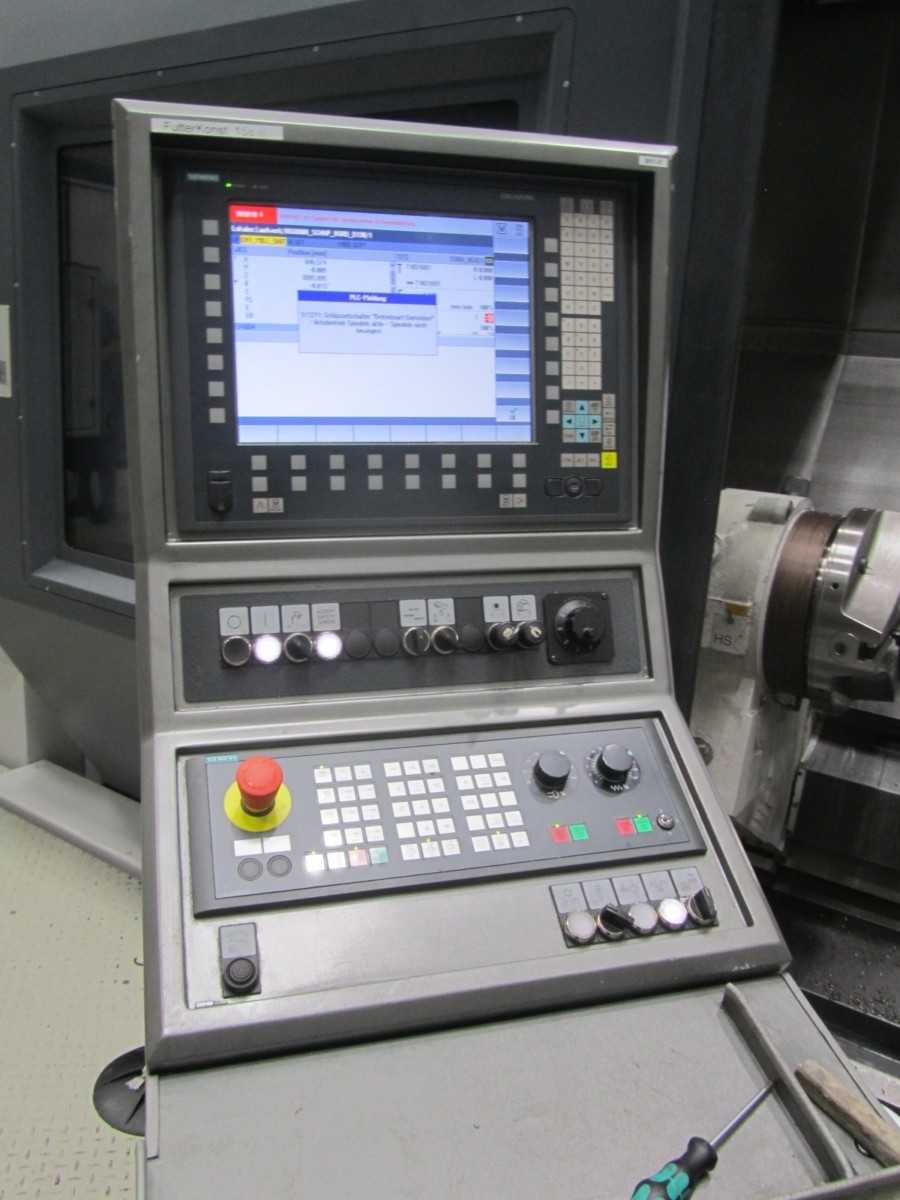

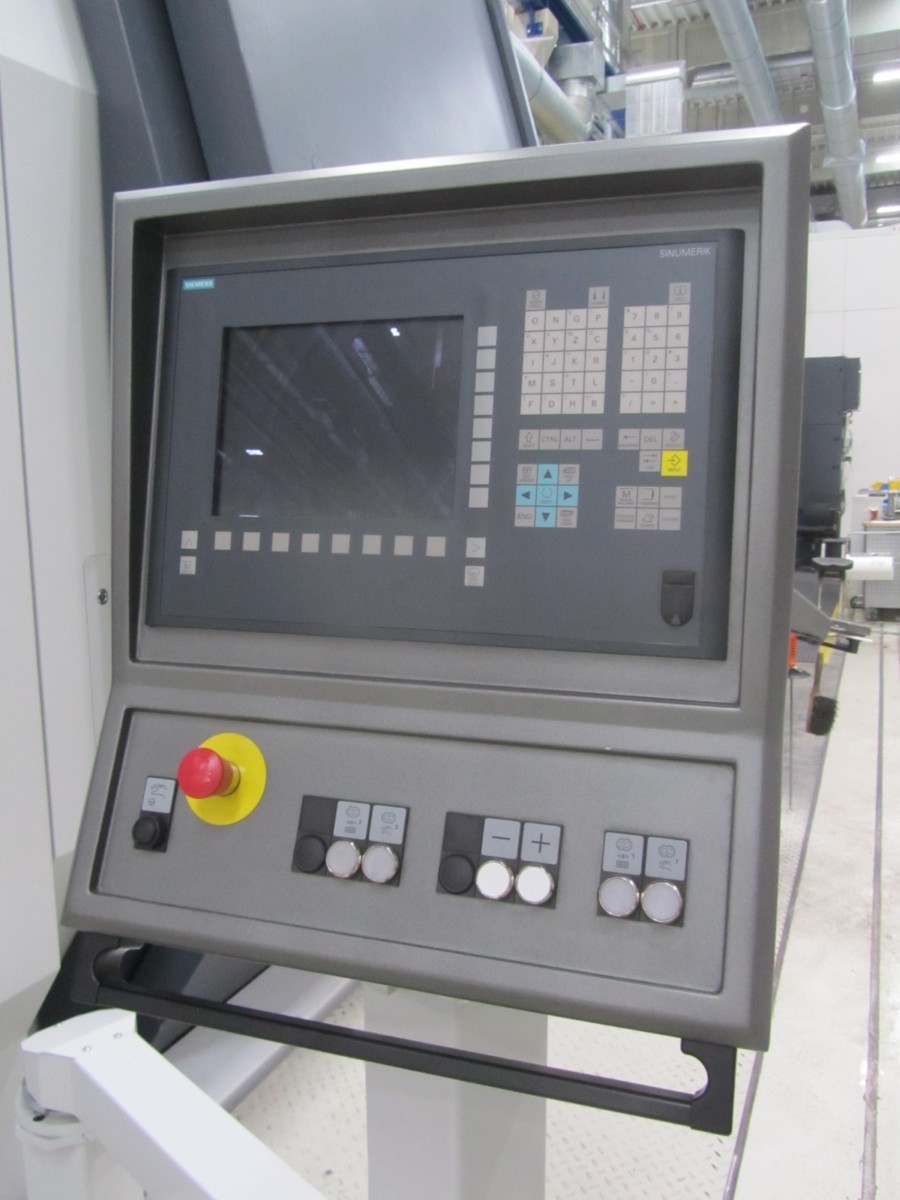

Siemens 840 Si D sl CNC Control

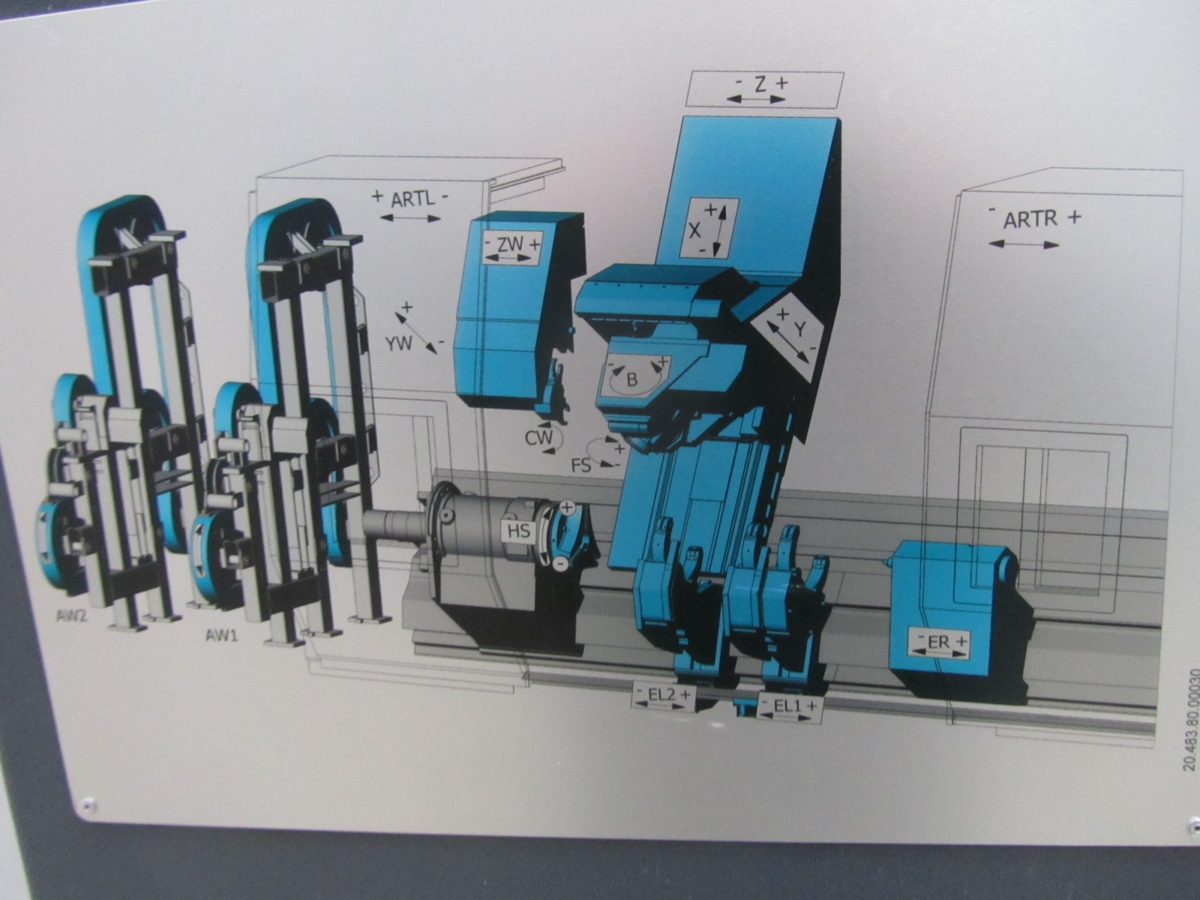

Controlled Axes: X/Y/Z/B and C-axis 0.001 deg
Turning Length 6000 mm
Swing Diameter 820 mm
Maximum Spindle Speed ??1800 rpm

Drive power 77 kW
Spindle bore 160 mm
Travels:
Z-axis 6820 mm
X-axis 850 mm

Equipment:

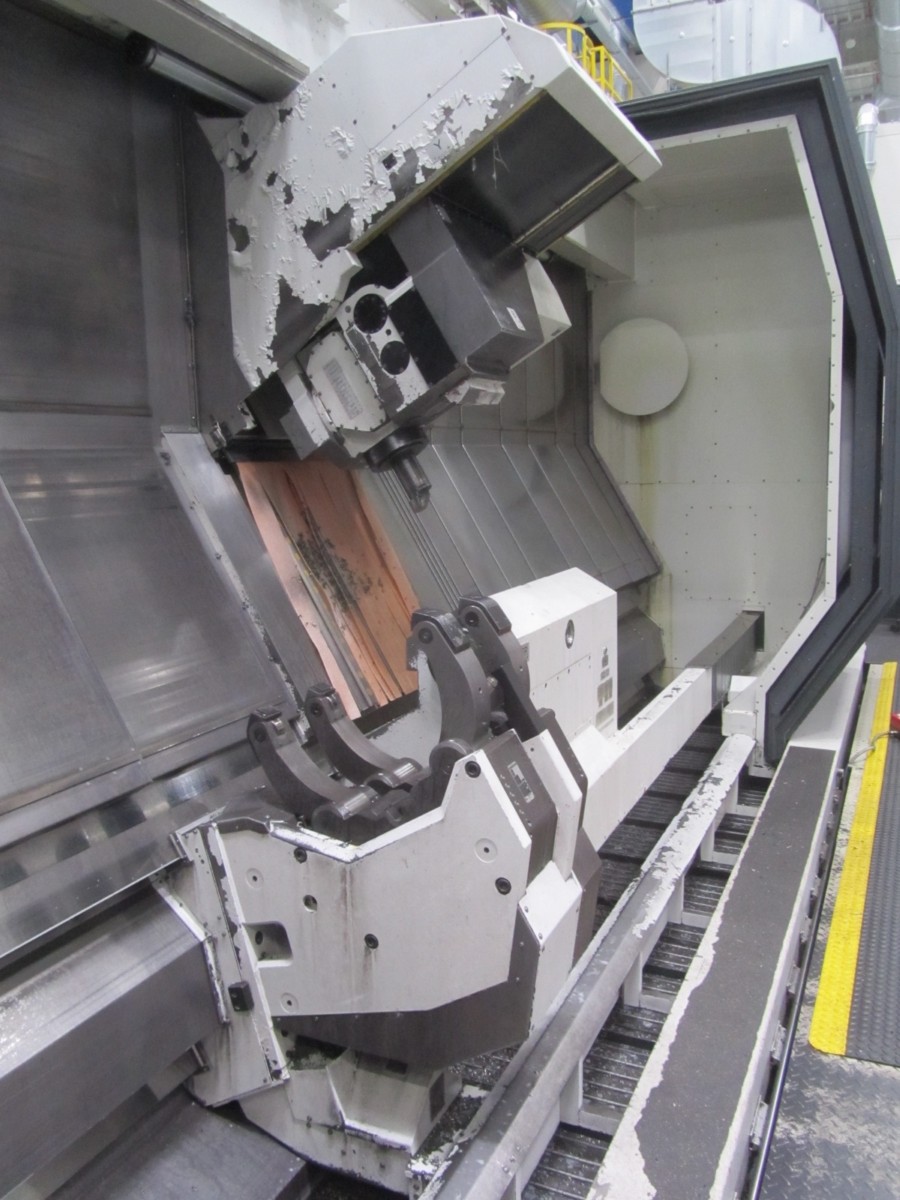

2 traveling steady rests

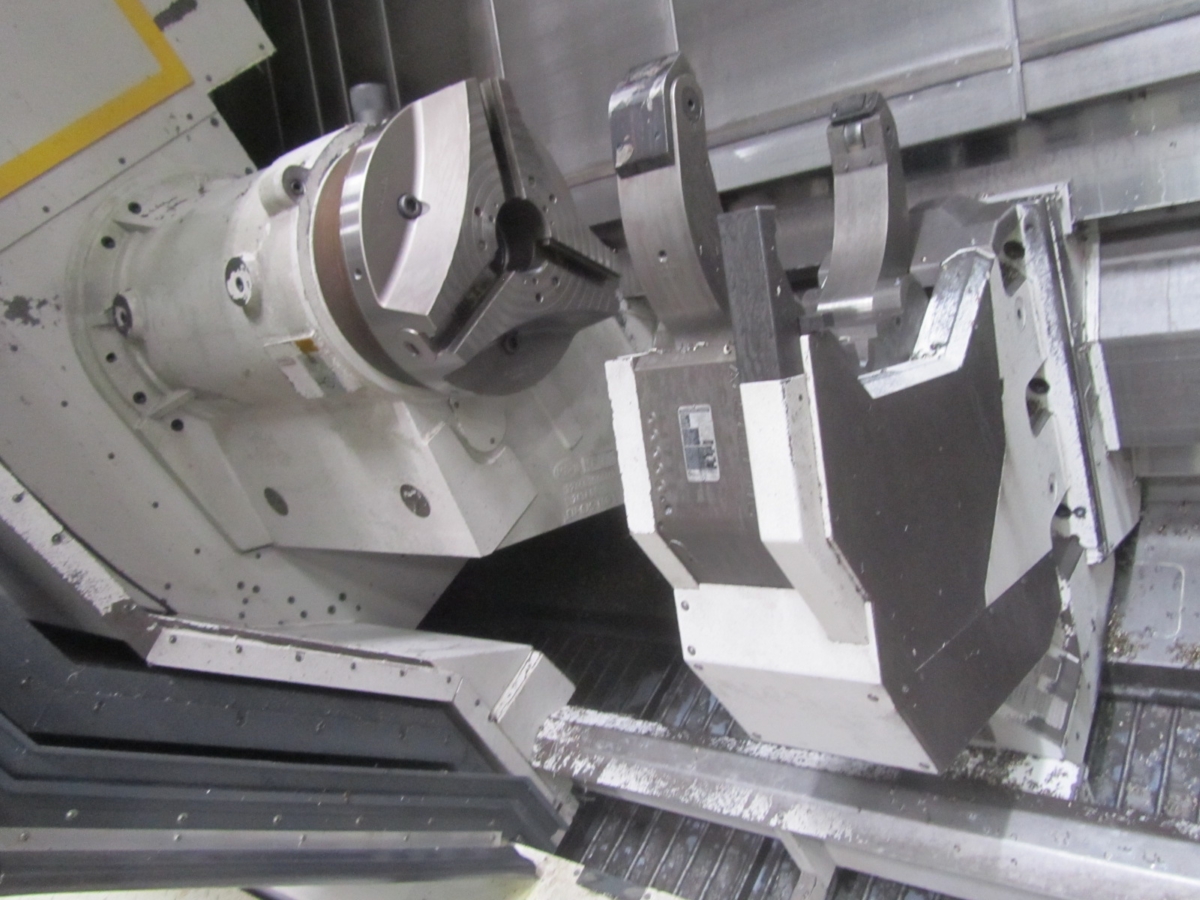

KSF power chuck, 400 mm diameter

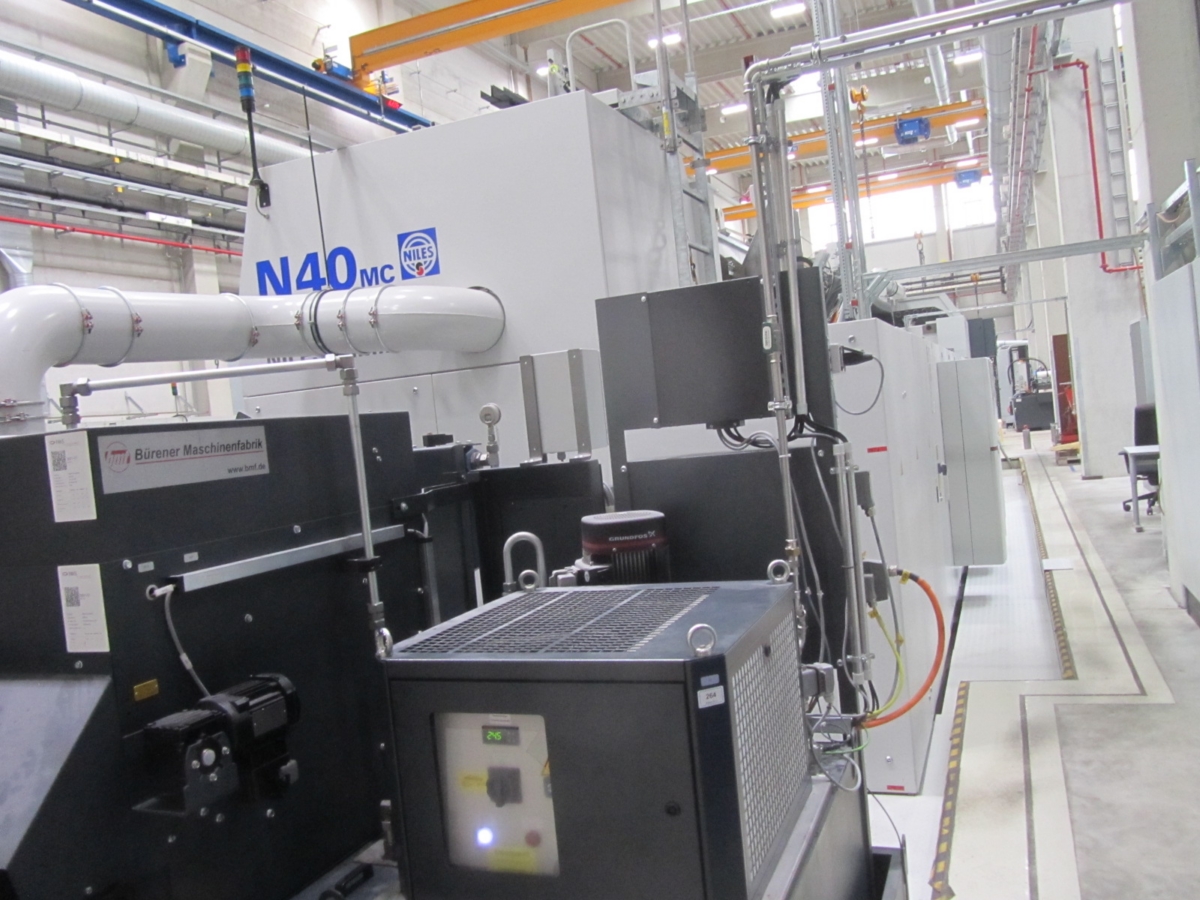

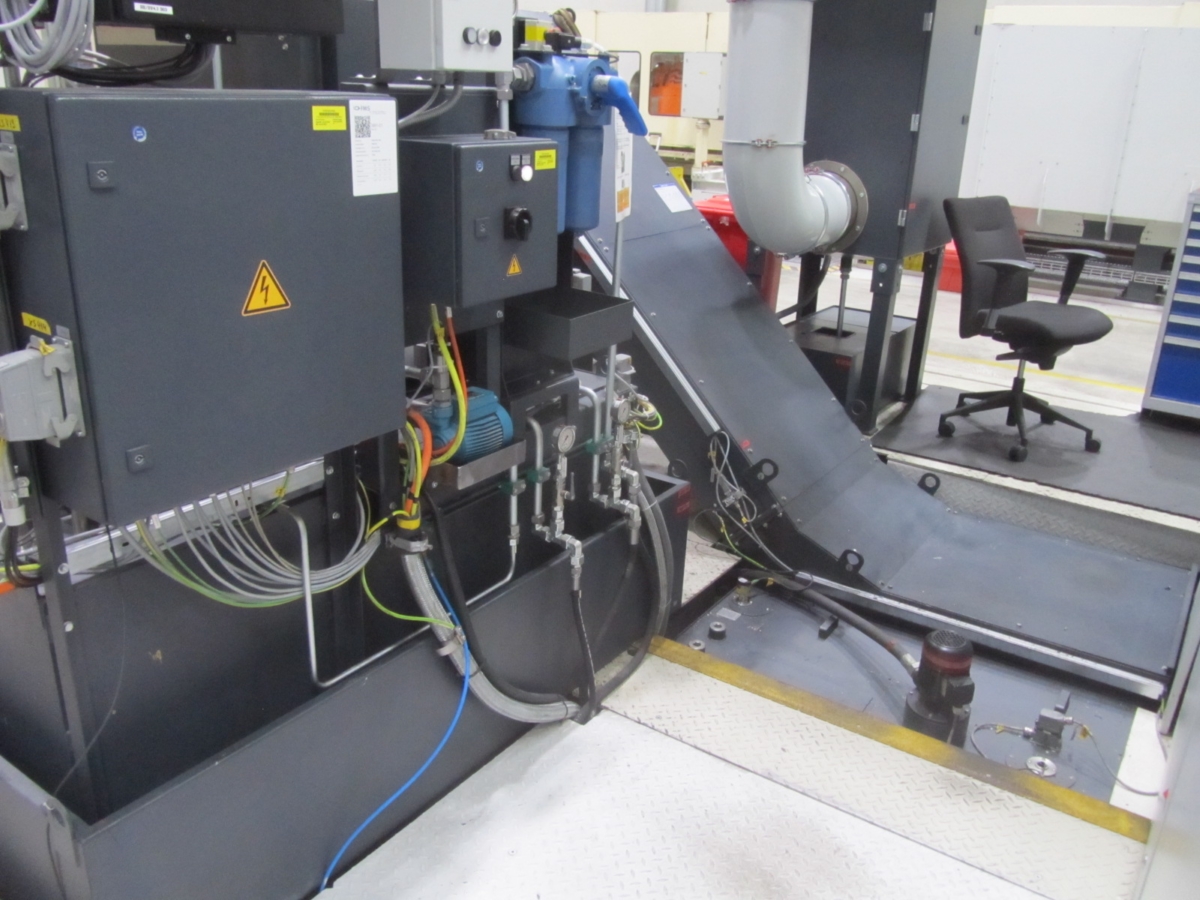

Coolant system
Full clamping cylinder
48-position tool changer, HSK 100 tool holder

Dimensions:
Machine length with chip conveyor 16350 mm
Machine width 3700 mm
Machine height 3850 mm
Machine weight approx. 52 tons




Changes and errors in the technical details and information reserved.
