DATASHEET

MACHINE DETAILS

Stock No.
1022-H09034
Machinetype
CNC Turning- and Milling Center
Make
MAZAK
Type
HQR-150MSY
Year of construction
2023
Control
CNC
Location
England
Country of origin
Japan
Delivery time
Immediately
Quotation
Ex Works
Price

TECHNICAL DETAILS



turning diameter
300 mm
turning length
- mm
control
-
total power requirement
kW
weight of the machine ca.
9,1 t
dimensions of the machine ca.
2862 x 2290 x 2413 mm


DESCRIPTION

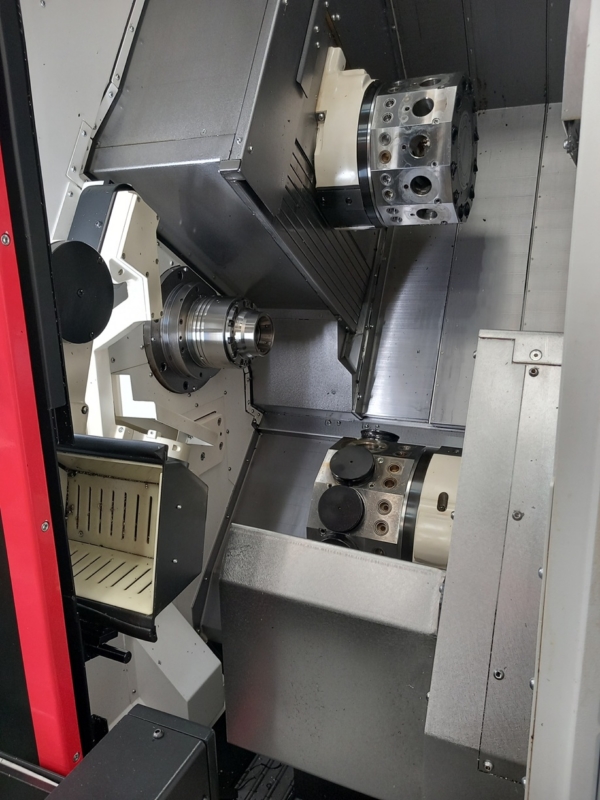

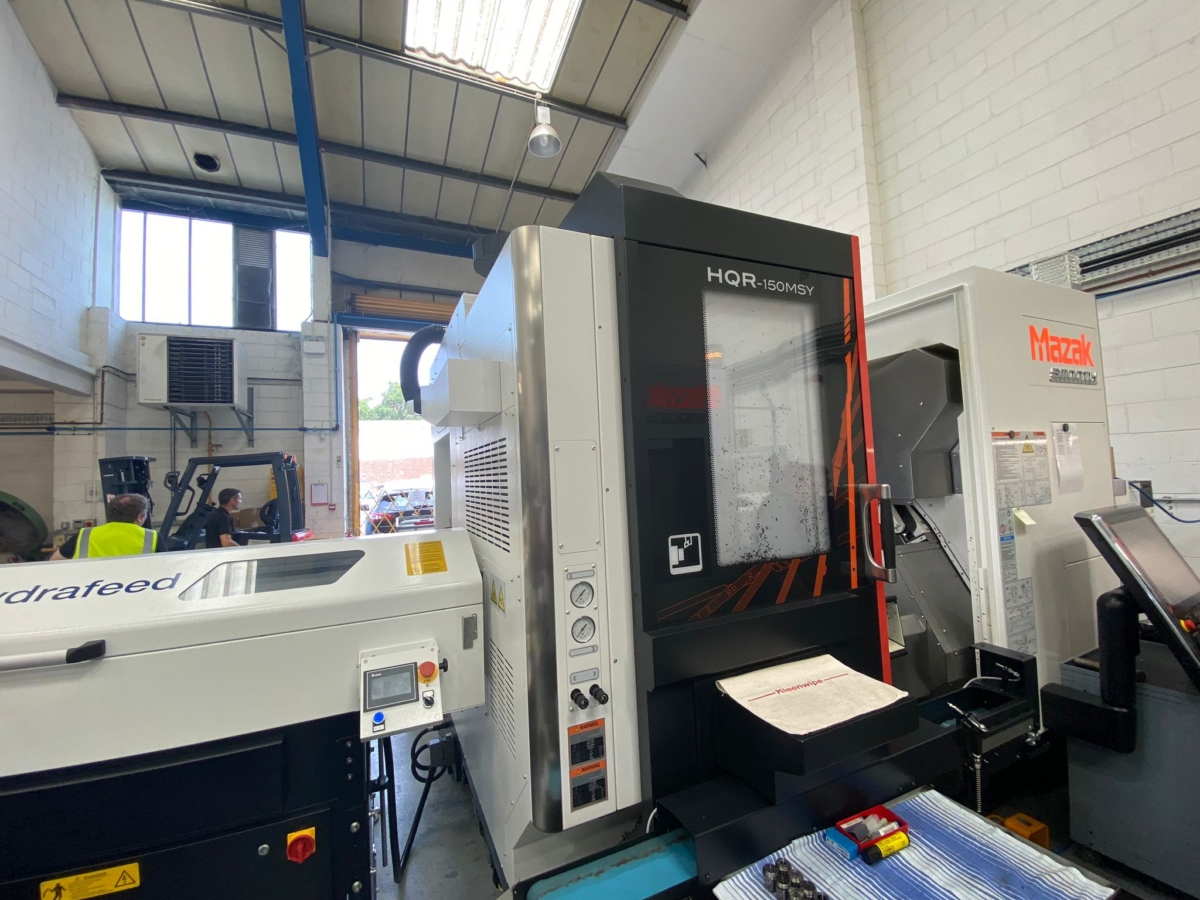

MAZAK HQR-MSY CNC Lathe with Twin Turret
Sub Spindle & Y Axis. Smooth Control. Year 2023
Only 360 Cutting Hours from New !!

Max swing (upper/lower turret) 320/270mm.
Max machining diameter (upper/lower turret) 300/172mm.
Distance between chuck jaw faces 620mm.
Bar work capacity 65mm.
Travels (upper turret) X/Y/Z 175/100/520mm.
Travels (lower turret) X/Y/Z 111/70/580mm.
Main spindle: Spindle speed 5000rpm.
Spindle nose A2-6.
Spindle bore 76mm.
Rapid traverse (C axis) 555rpm.
Second spindle: Spindle speed 6000rpm.
Spindle nose A2-5. Spindle bore 61mm.
Second headstock stroke (W axis) 625mm.
Second headstock positioning speed (W axis) 30,000mm/min.
Rapid traverse (C axis) 555rpm.
Turret type 12 position drum turret (VDI).
Number of tools 12. Turning tool shank 20mm.
Boring bar shank diameter 32mm.
Turret indexing time 0.2s / 1 step.
Rotary tool spindle: Spindle speed 6000rpm.
Milling capacity: Drill 16mm, Endmill 16mm, Tap M16 x 2.0.
Feedrate (upper turret) X/Y/Z 30000/26000/40000mm/min.
Feedrate (lower turret) X/Y/Z 24000/20000/40000mm/min.
Motors: Main spindle (30min/cont.) 15kw/11kw.
Second spindle (30min/cont.) 11kw/7.5kw.
Rotary tool spindle (10min) 5.5kw.
Power requirement 39.2 kVA.
Coolant tank capacity 251 litres.

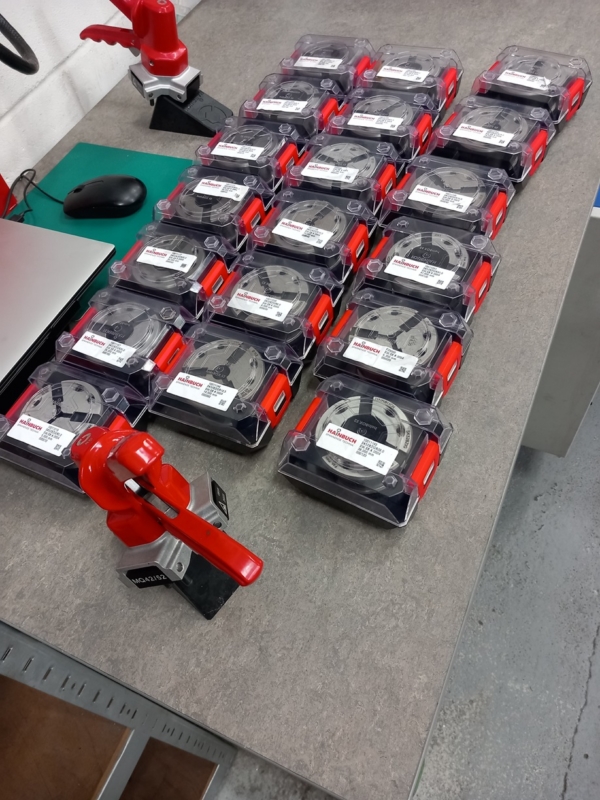

HAINBUCH Collet Chuck System with Collets.
Selection of Live Tooling

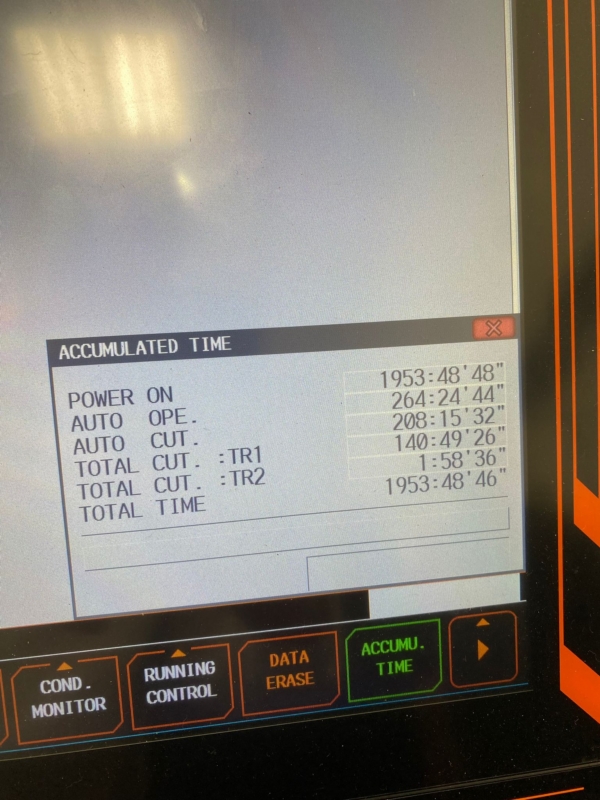

Cutting time 380 Hours.
The machine has had very little use.
Dimensions L x W x H 2862mm x 2290mm x 2413mm
Weight 9100kg




Changes and errors in the technical details and information reserved.
