DATASHEET

MACHINE DETAILS

Stock No.
1022-E06354
Machinetype

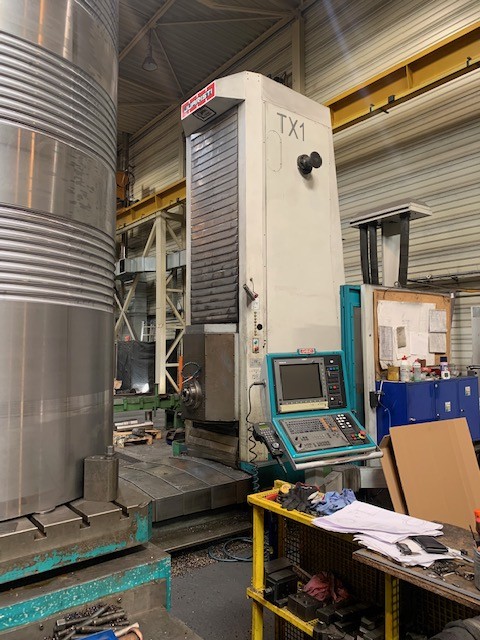

Table Type Boring and Milling Machine
Make
JUARISTI
Type
TX-1
Year of construction
2006
Control
CNC
Location
Poland
Country of origin
Spain
Delivery time
Short-dated
Quotation
Ex site, without dismantling and loading
Price

TECHNICAL DETAILS



spindle diameter
125 mm
x-travel
3000 mm
y-travel
2000 mm
z-travel
1500 mm
W-axis (spindle longitudinal)
600 mm
table-size
1250 x 1600 mm
table load capacity - central/maximum
5000 kg
Control
Heidenhain iTNC 530
tool taper
ISO 60
spindle turning speed range
5 - 3000 U/min
spindle drive motor
37 kW
max. torque on the spindle
1646 Nm
transmission ratio
2
total power requirement
kW
weight of the machine ca.
t
dimensions of the machine ca.
m


DESCRIPTION

Working hours:
- Machine on: 59.078 h
- Autom. cycle: 24.207 h

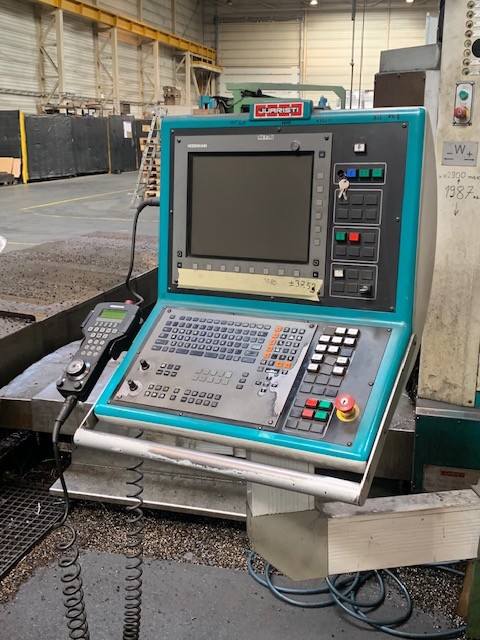

* CNC-control HEIDENHAIN iTNC 530
* Coolant equipment
* Table B-axis, 360.000 positions




Changes and errors in the technical details and information reserved.
