DATASHEET

MACHINE DETAILS

Stock No.
1022-E06353
Machinetype

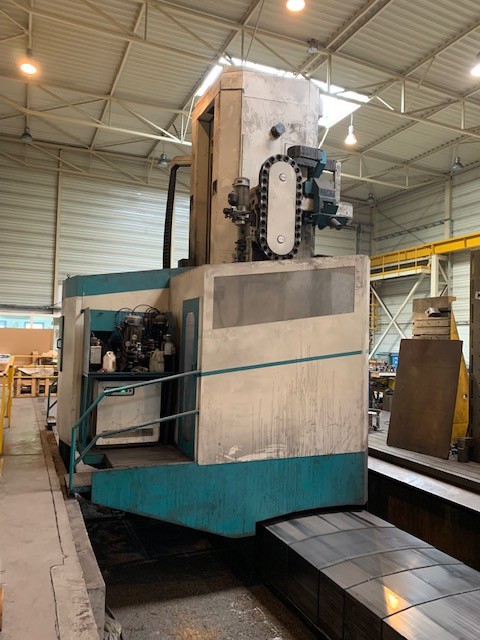

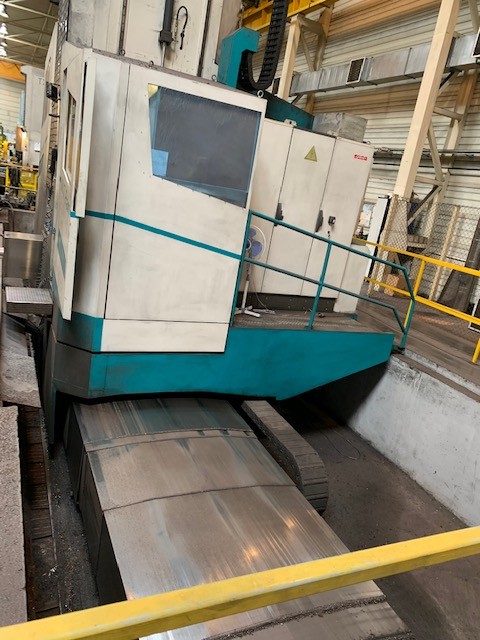

Floor Type Boring and Milling M/C - Hor.
Make
JUARISTI
Type
MX-7 RAM
Year of construction
2006
Control
CNC
Location
Poland
Country of origin
Spain
Delivery time
Short-dated
Quotation
Ex site, without dismantling and loading
Price

TECHNICAL DETAILS



spindle diameter
160 mm
x-travel
8000 mm
y-travel
4000 mm
z-travel
(RAM) 1000 mm
W-axis (spindle longitudinal)
800 mm
Control
Heidenhain iTNC 530
tool taper
ISO 50 DIN 69871
spindle turning speed range
5 - 2500 U/min
spindle drive motor
40 kW
max. torque on the spindle
2024 Nm
total power requirement
kW
weight of the machine ca.
t
dimensions of the machine ca.
m


DESCRIPTION

Working hours:
- Machine on: 27.315 h
- Autom. cycle: 11.533 h

* CNC-control HEIDENHAIN iTNC 530
* 30-pos. ATC
* Floor plates 8000 x 4000 mm
* Coolant equipment with coolant through spindle
* Swarf conveyor
* movable operators platform
* Documentation




Changes and errors in the technical details and information reserved.
