DATASHEET

MACHINE DETAILS

Stock No.
1022-E06340
Machinetype

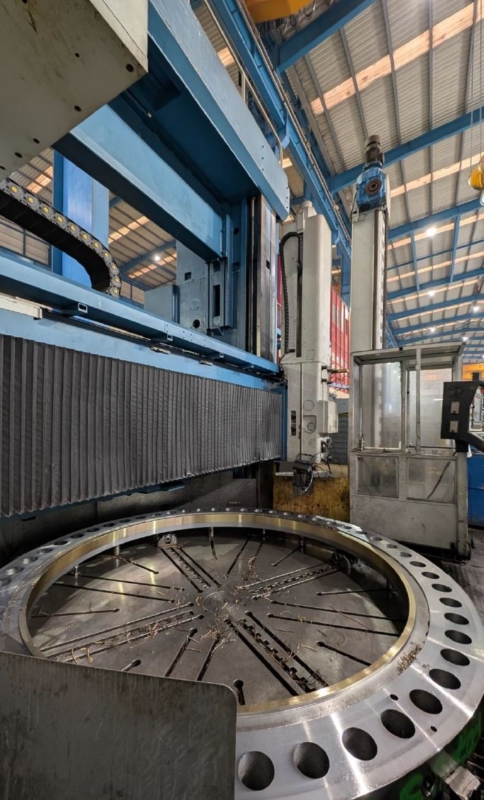

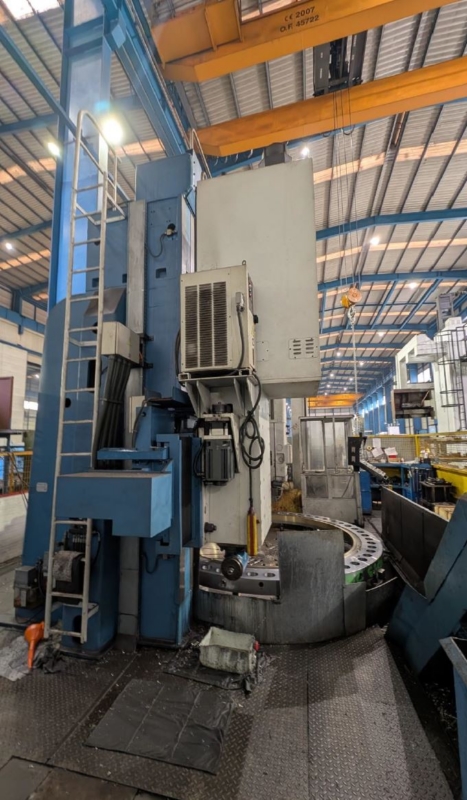

Vertical Turret Lathe - Double Column
Make
SCHIESS
Type
TVMF 320-3000
Year of construction
2009 retrofit
Control
CNC
Location
Spain
Country of origin
Germany
Delivery time
Immediately
Quotation
Ex site, without dismantling and loading
Price

TECHNICAL DETAILS



faceplate diameter
2950 mm
swing diameter
3200 mm
turning height
3500 mm
table load
20 t
feed range
3000 mm/min
main drive motor
70 kW
milling drive
16,1 kW
Control
total power requirement
kW
weight of the machine ca.
t
dimensions of the machine ca.
m


DESCRIPTION

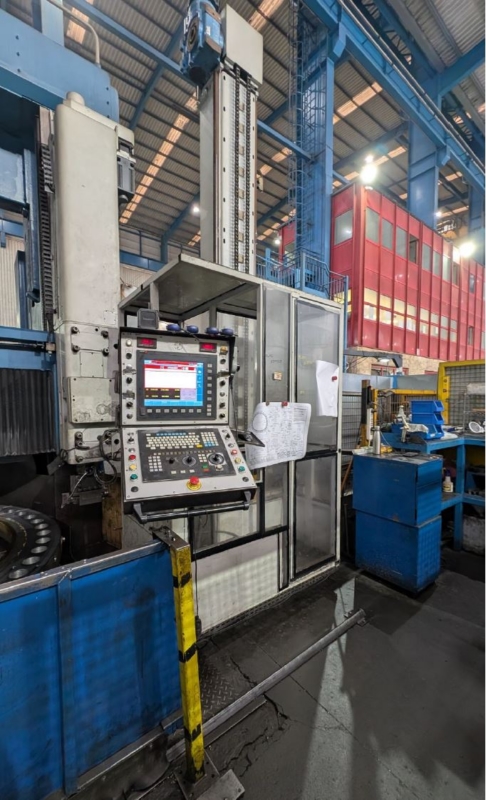

* CNC-control FAGOR 8070
* C-axis with 360,000 positions

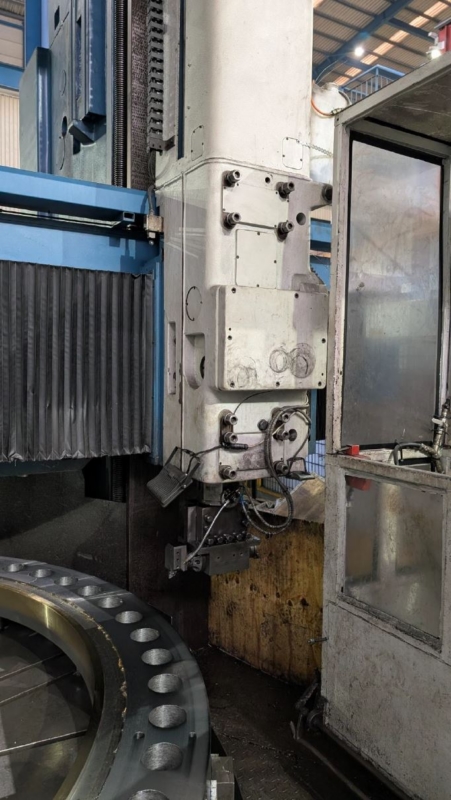

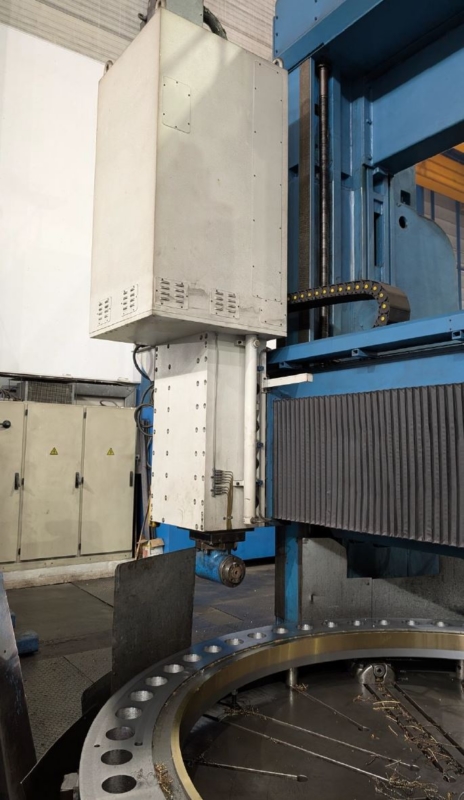

* Milling head

Inspection under power in the factory possible.
Machine location is Spain.




Changes and errors in the technical details and information reserved.

Documents & videos

#1022-E06340 - Vertical Turret Lathe - Double Column SCHIESS TVMF 320-3000
