DATASHEET

MACHINE DETAILS

Stock No.
1022-E06338
Machinetype

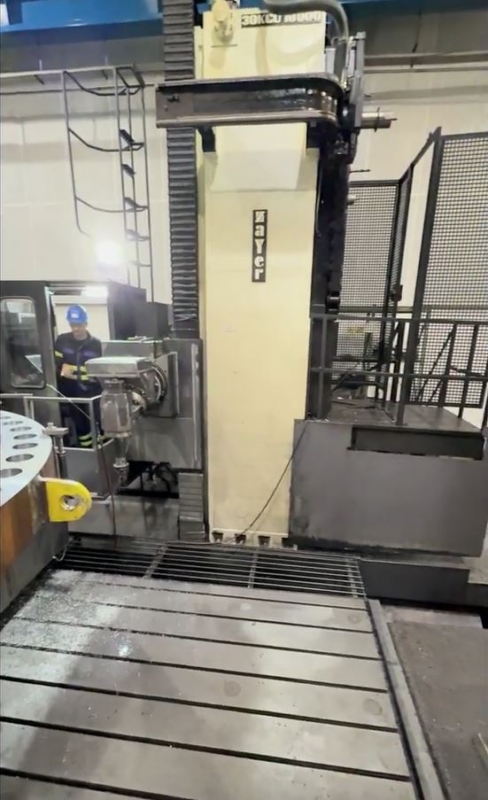

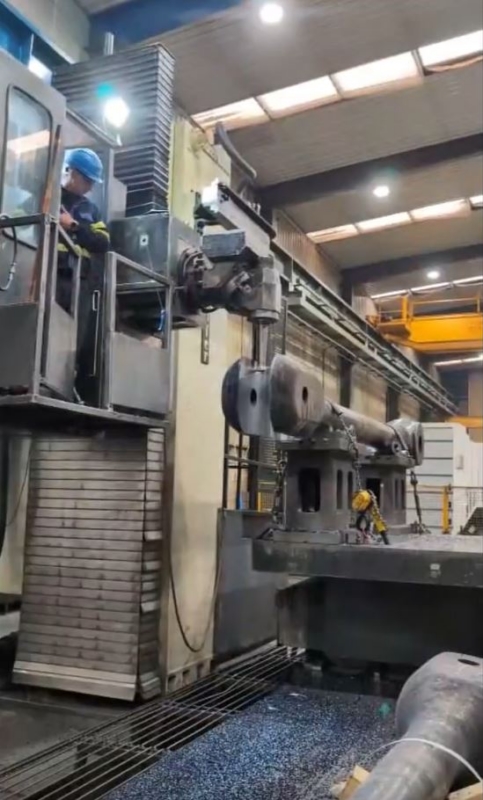

Travelling column milling machine
Make
ZAYER
Type
30 KCU 10000
Year of construction
1999
Control
CNC
Location
Spain
Country of origin
Spain
Delivery time
Short-dated
Quotation
Ex site, without dismantling and loading
Price

TECHNICAL DETAILS



x-travel
10000 mm
y-travel
1500 mm
z-travel
3000 mm
Control
Heidenhain TNC 430
tool taper
ISO 50
spindle turning speed - stepless
10 - 3000 U/min
feed range
10000 mm/min
rapid traverse
15 m/min
main drive motor
37 kW
total power requirement
kW
weight of the machine ca.
t
dimensions of the machine ca.
m


DESCRIPTION

* CNC-control HEIDENHAIN TNC 430
* 40-station ATC

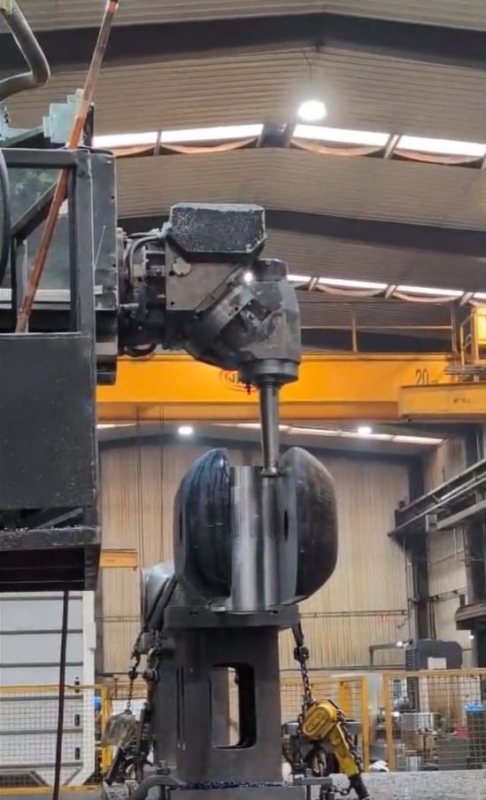

* NC-Universal Milling head, automatic positioning (A/B axis 0.001 / 0.001 deg)
* Chip conveyor

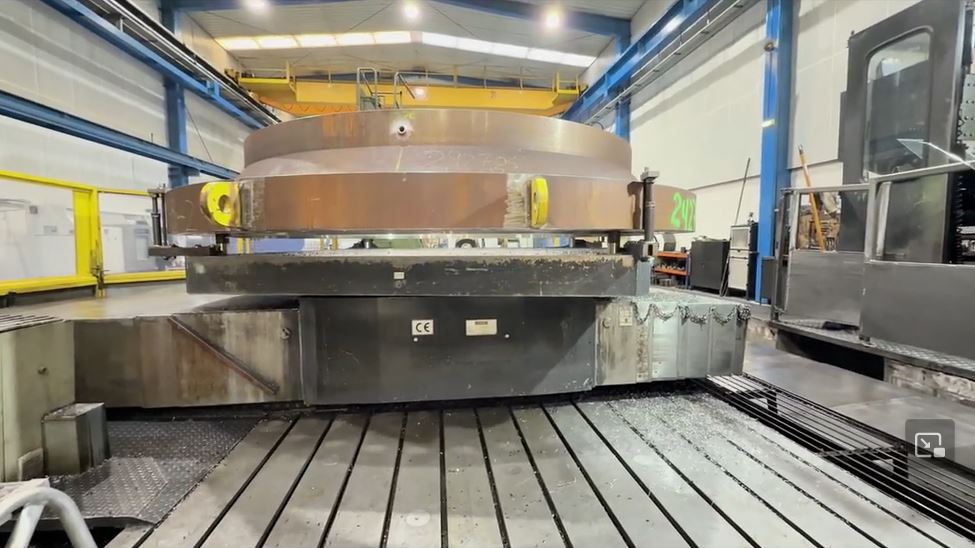

Optional (price upon request): CNC rotary table Juaristi 3000 x 3000 mm
- Table load 30 to
- Longitudinal movement 2000mm
- Separate CNC-control FAGOR




Changes and errors in the technical details and information reserved.
