DATASHEET

MACHINE DETAILS

Stock No.
1022-2431
Machinetype

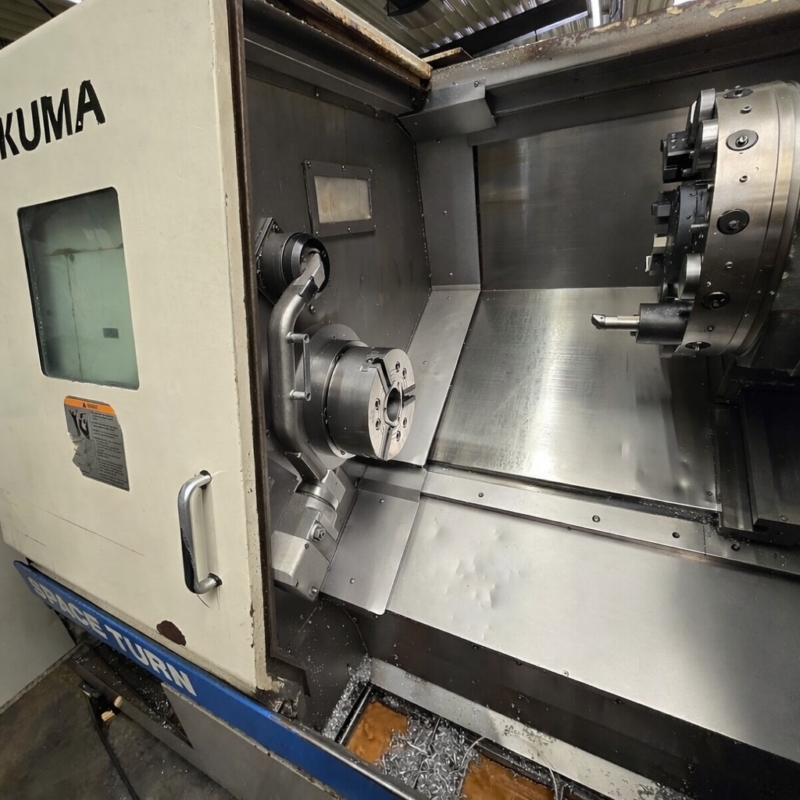

CNC Turning- and Milling Center
Make
OKUMA
Type
LB400M-1SC
Year of construction
2000
Control
CNC
Location
Monheim (Germany)
Country of origin
Japan
Delivery time
Immediately
Quotation
Ex warehouse, loaded on truck
Price

TECHNICAL DETAILS



turning diameter
420 mm
turning length
650 mm
control

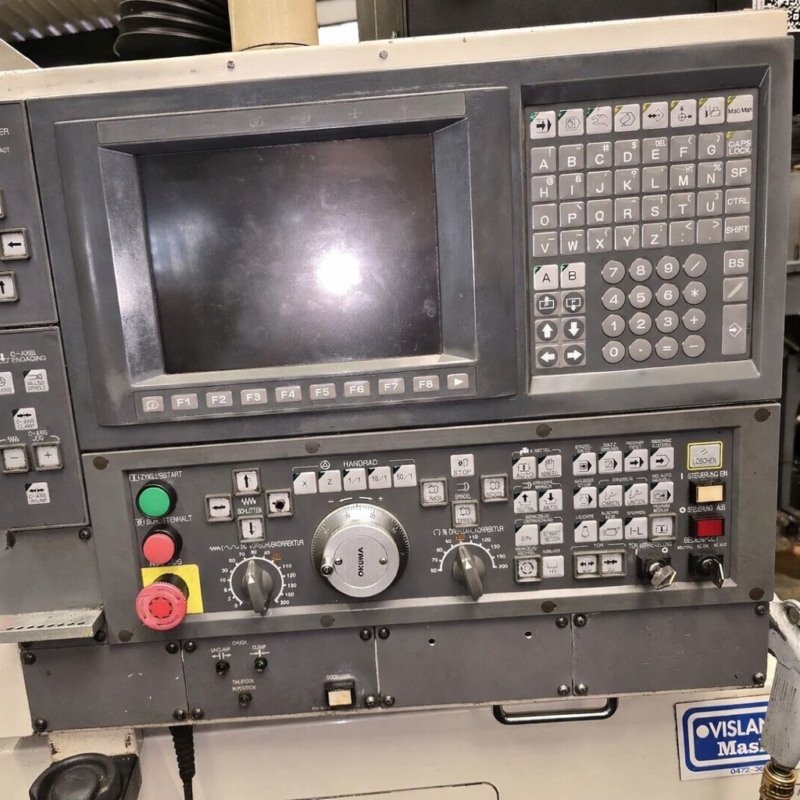

Okuma OSP-U100L
spindle bore
95 mm
spindle turning speed range
2800 U/min
travel -x axis
300 mm
travel -z axis
675 mm
main drive motor
22/30 kW
weight of the machine ca.
5,5 t
dimensions of the machine ca.
2700 x 1900 x 1885 mm


DESCRIPTION

First put into operation 2001.

Spindle hours: 16.653 hrs.

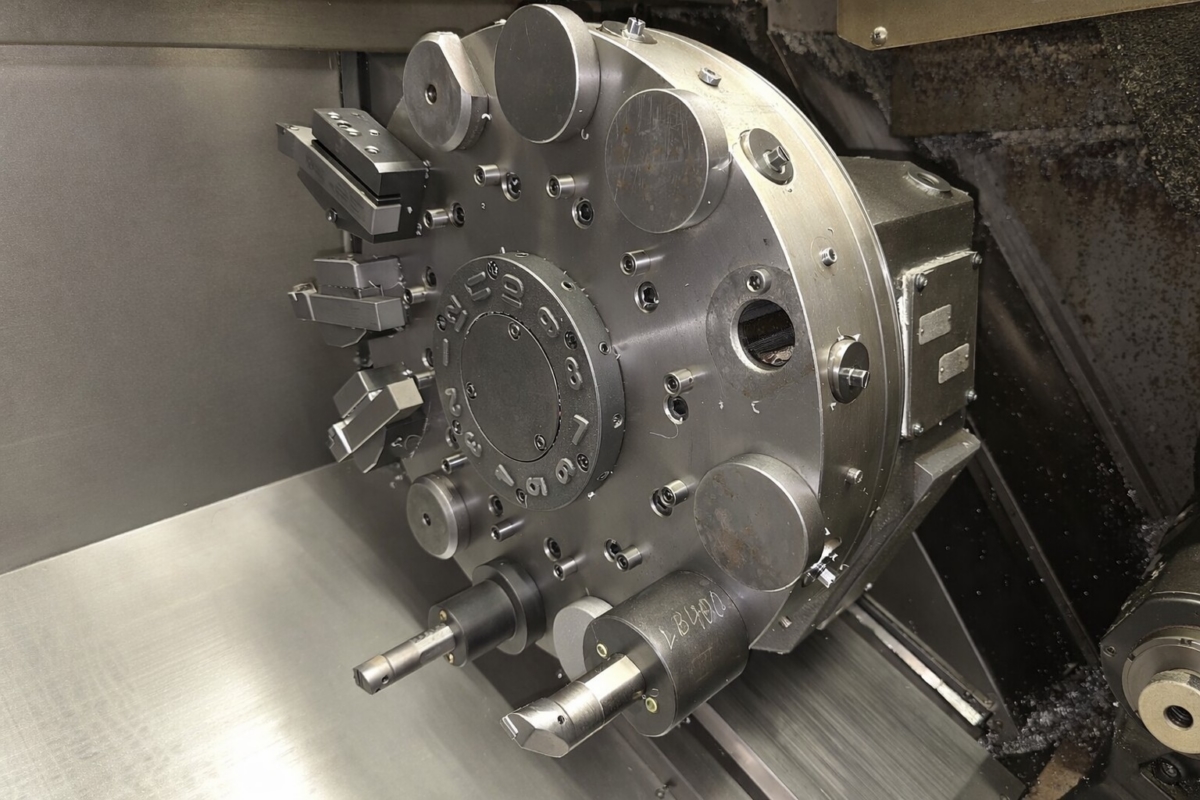

- 12-station turret (VDI 40) with driven tool stations, 3,000 rpm, 5.5 kW
- Internal extraction system by Hengst Filtration (year of manufacture 2023)

- Touchsetter, tool measurement
- C-axis (main spindle)
- Tool breakage and wear monitoring
- 3-jaw chuck, Kitagawa B210, Ø250
- Tailstock
- Coolant supply, also through the tool
- IGF dialog programming
- Chip conveyor (scraper)




Changes and errors in the technical details and information reserved.
