DATASHEET

MACHINE DETAILS

Stock No.
1022-2418
Machinetype
Machining Center - Vertical
Make
MIKRON
Type
VCP 1350
Year of construction
1999
Control
CNC
Location
south of germany
Country of origin
Switzerland
Delivery time
Immediately
Quotation
Ex site, without dismantling and loading
Price

TECHNICAL DETAILS



x-travel
1350 mm
y-travel
900 mm
z-travel
750 mm
power capacity - milling spindle
22 kW
table surface area
1400 x 840 mm
spindle turning speed range
12000 U/min
tool taper
ISO 40
feed range
0 - 10000 mm/min
rapid traverse
30 m/min
table load
1,8 t
total power requirement
46 kW
weight of the machine ca.
10,1 t
dimensions of the machine ca.
m



DESCRIPTION

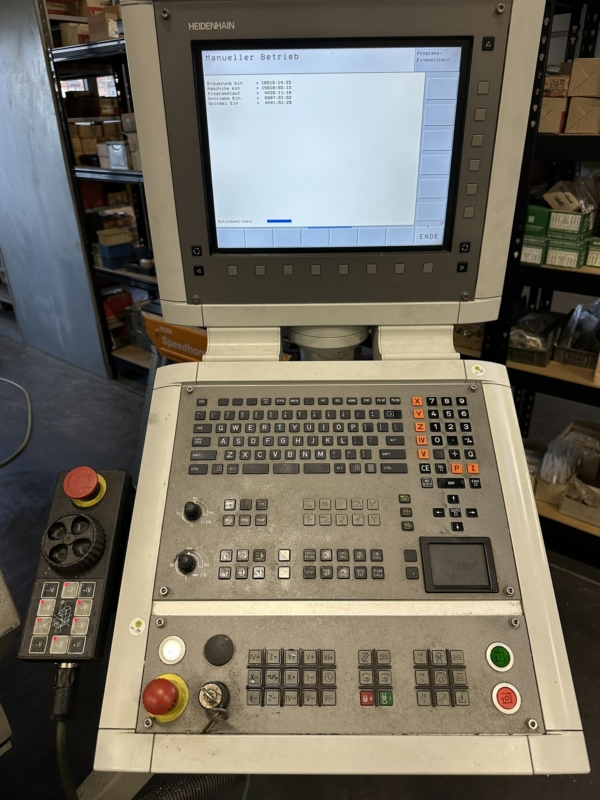

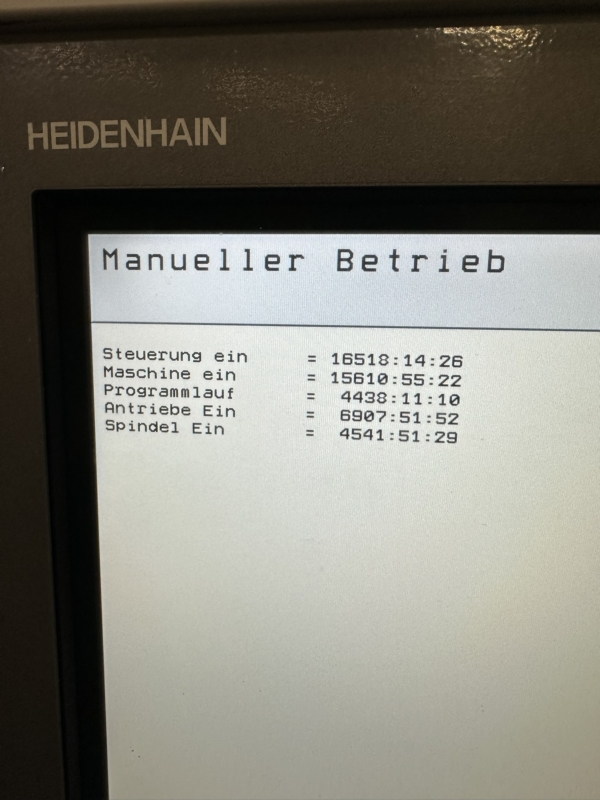

CNC-control Heidenhain TNC 426 M

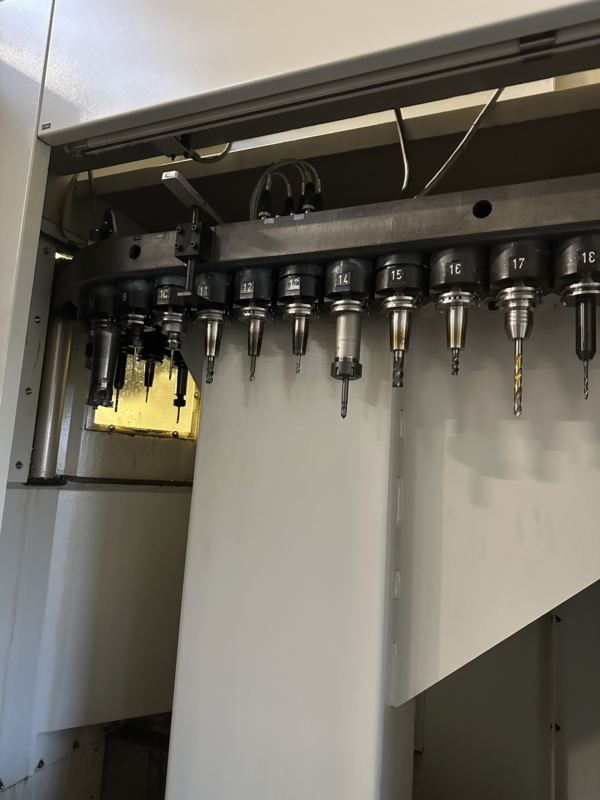

46-station ATC
Coolant system
Coolant through spindle
Chip conveyor
Direct measuring system with 0.001 mm resolution
Electronic handwheel
Measuring probe




Changes and errors in the technical details and information reserved.

Documents & videos

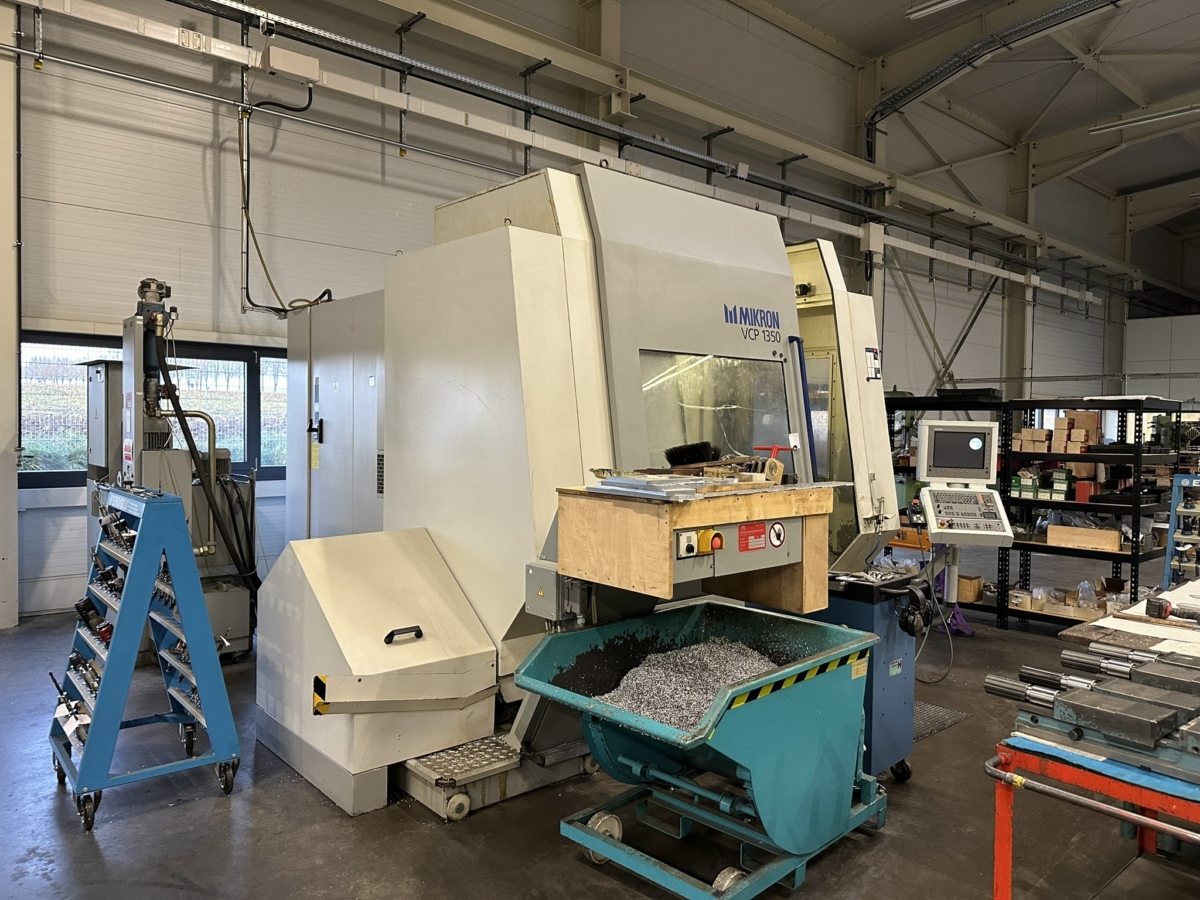

#1022-2418 - Machining Center - Vertical MIKRON VCP 1350
