DATASHEET

MACHINE DETAILS

Stock No.
1022-2417
Machinetype
Machining Center - Universal
Make
FPT
Type
Dino
Year of construction
2002
Control
CNC
Location
south of germany
Country of origin
Italy
Delivery time
Immediately
Quotation
Ex site, without dismantling and loading
Price

TECHNICAL DETAILS



x-travel
2800 mm
y-travel
2200 mm
z-travel
800 mm
Control
Heidenhain iTNC 530

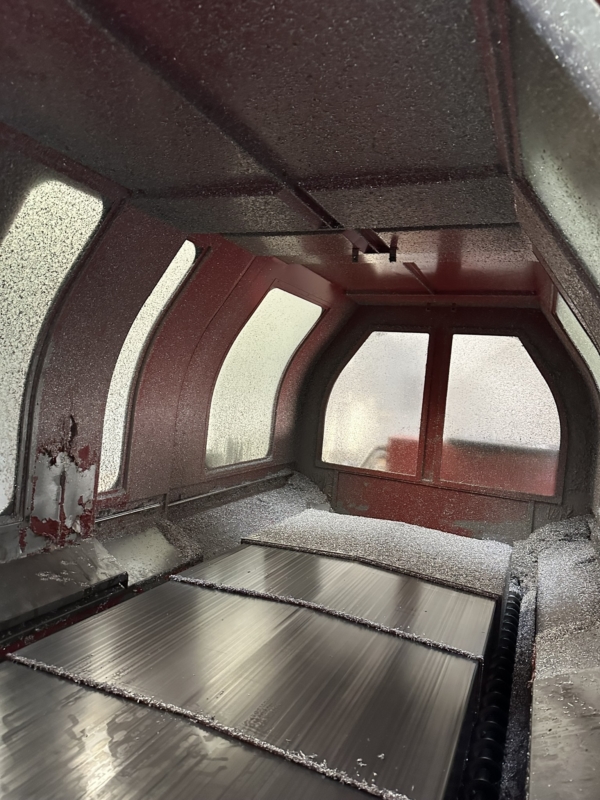

table surface area
3000 x 1200 mm
tool taper
HSK-A-63
spindle turning speed range
12000 U/min
power capacity
18 kW
feed range
35000 mm/min
total power requirement
68,7 kW
weight of the machine ca.
t
dimensions of the machine ca.
12,4 x 3,5 x 4,6 m



DESCRIPTION

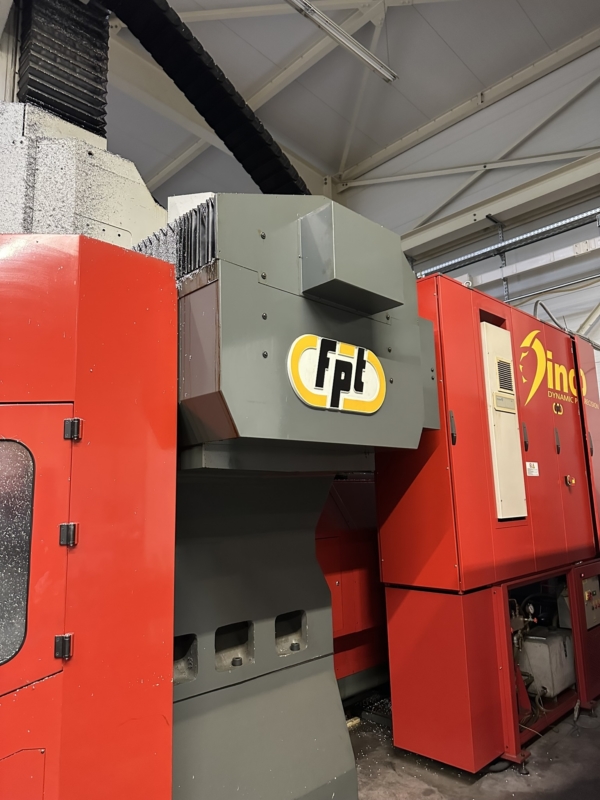

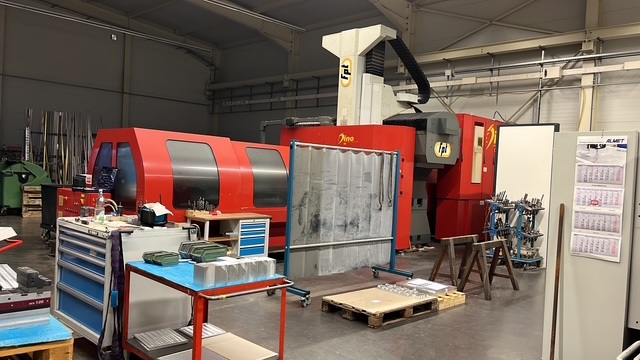

The FPT DINO is a 5-axis portal milling machine designed for the precise machining of large components.

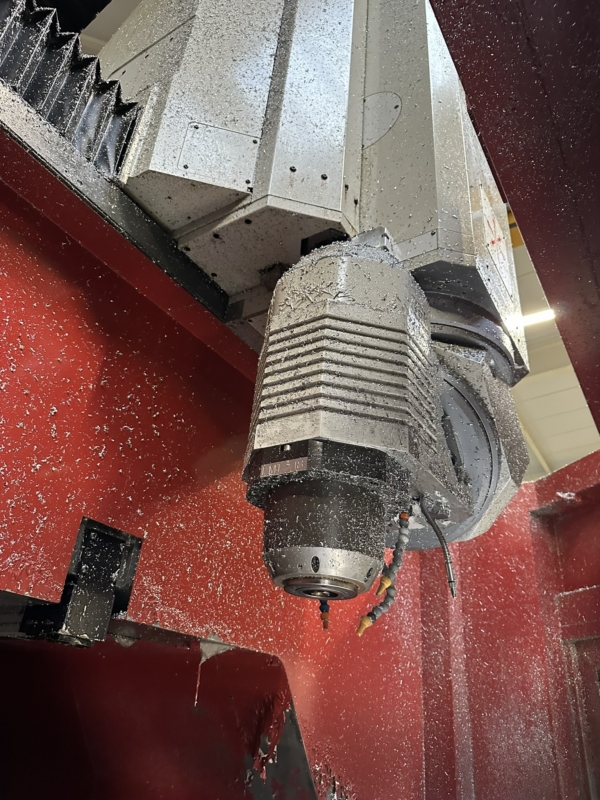

With a cross travel of 2200 mm and a high-speed spindle with 12,000 rpm, this machine combines high machining volume with outstanding dynamics in finishing.

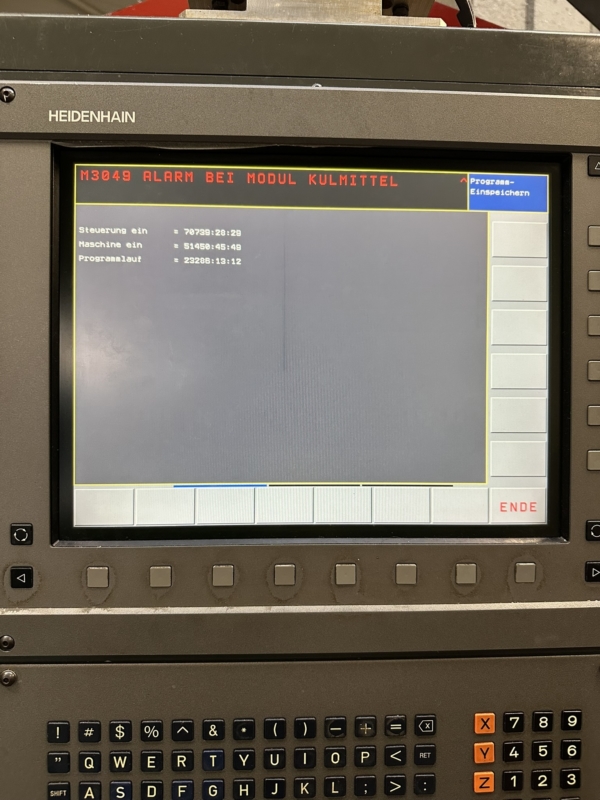

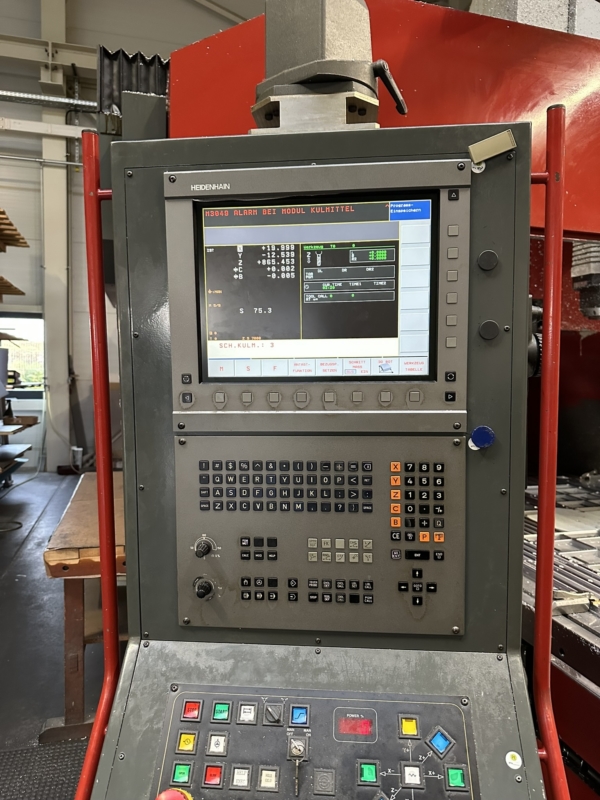

Heidenhain iTNC 530 CNC path control
Number of controlled axes (simultaneously): X/Y/Z/C/B

Travels:
X-axis (longitudinal travel) 2800 mm
Y-axis (cross travel) 2200 mm
Z-axis (vertical travel) 800 mm


Machine length: 12,434 mm
Machine width: 3,597 mm
Machine height: 4,622 mm

Coolant equipment (no coolant through spindle)
Chip conveyor




Changes and errors in the technical details and information reserved.
