DATASHEET

MACHINE DETAILS

Stock No.
1022-2413
Machinetype

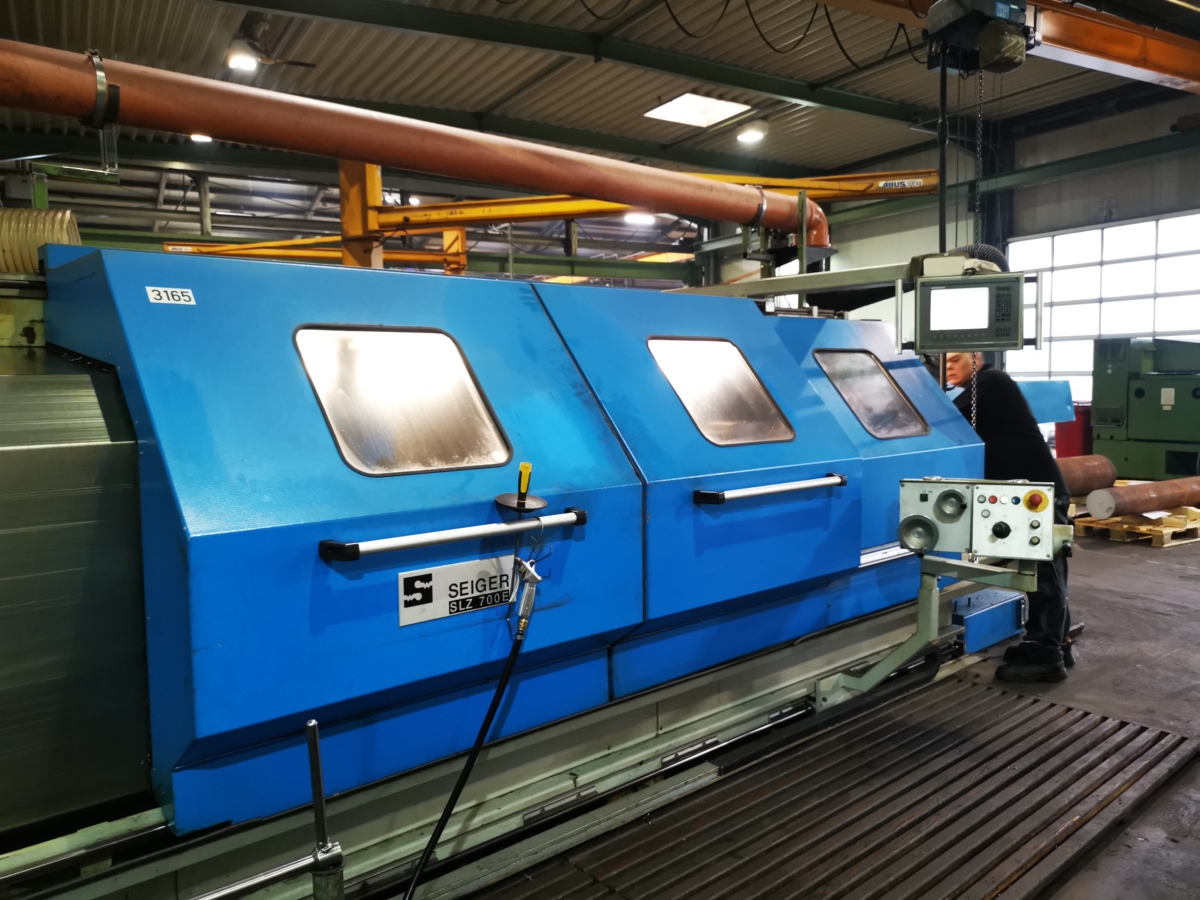

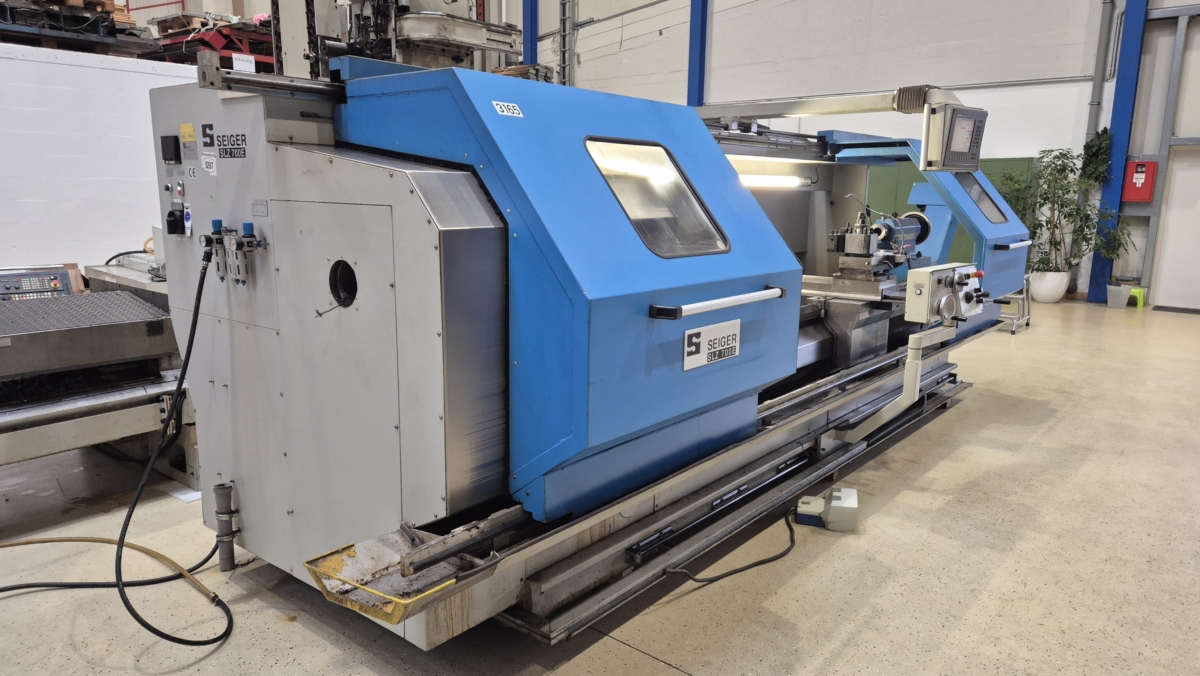

Lathe - cycle-controlled
Make
SEIGER
Type
SLZ 700 E x 3000
Year of construction
2005
Control
CNC
Location
Germany
Country of origin
Germany
Delivery time
Immediately
Quotation
Ex warehouse, loaded on truck
Price

TECHNICAL DETAILS



swing over bed
730 mm
centre distance
3000 mm
control
Heidenhain MANUALplus4110
total power requirement
kW
weight of the machine ca.
t
dimensions of the machine ca.
m


DESCRIPTION

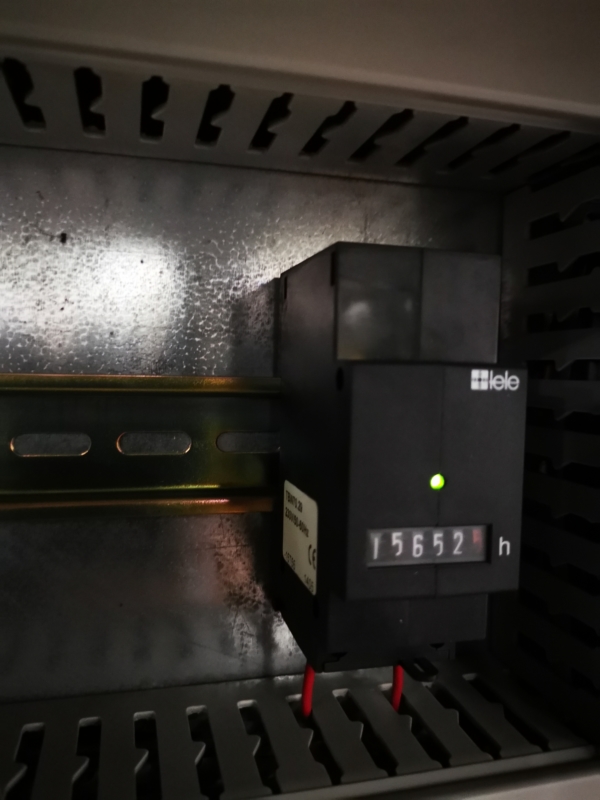

Very well-maintained cycle lathe with only 15652 operating hours.

Working area:
Center distance 3000 mm
Swing diameter over bed 730 mm
Swing diameter over cross slide 450 mm

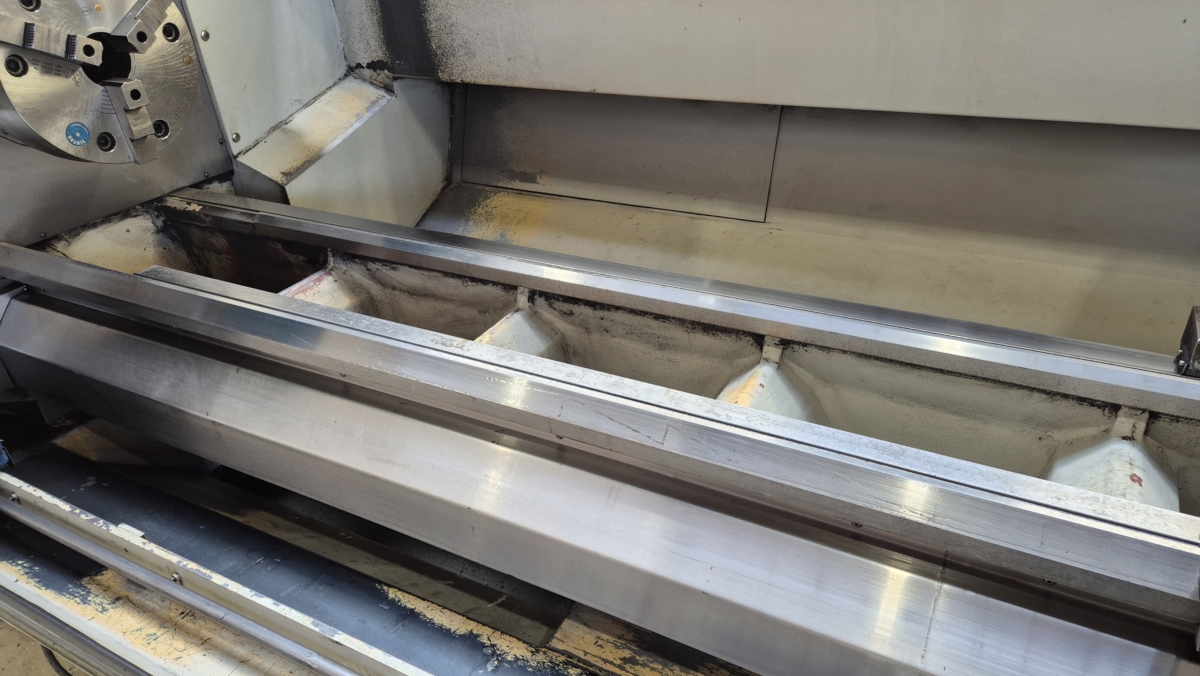

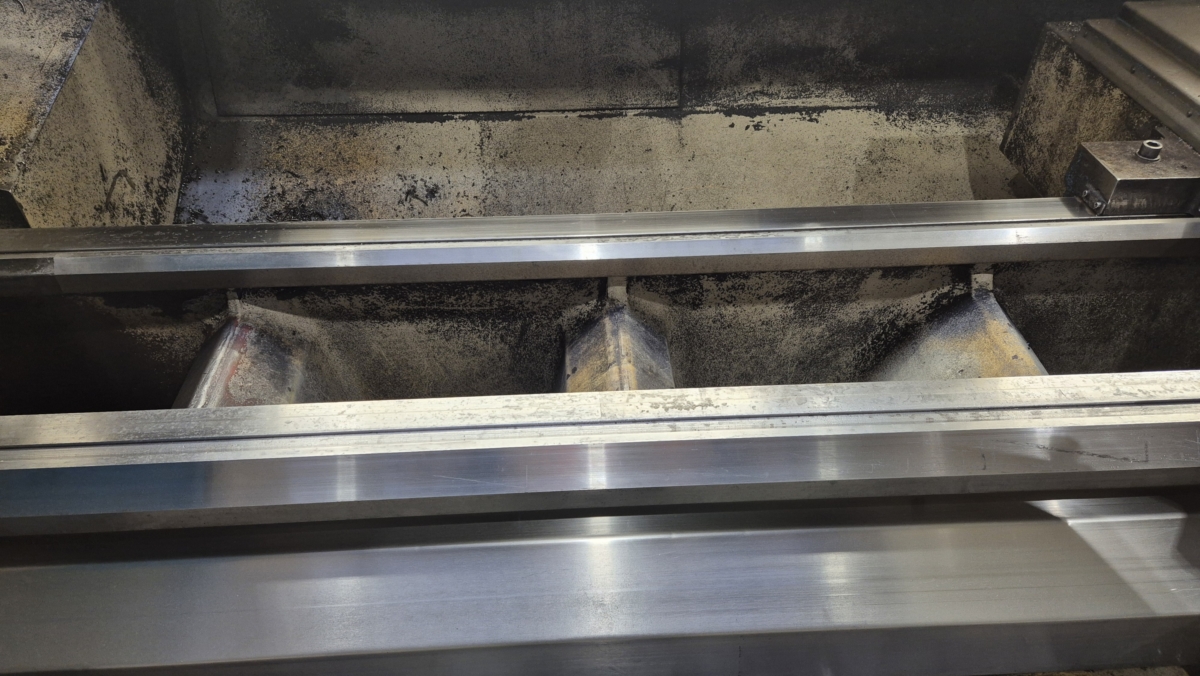

Bed width 480 mm

Main spindle:
Spindle mount according to DIN 55027 size 11
Spindle bore 130 mm
Spindle diameter at front bearing 170 mm
Spindle taper 1:20
Tap in center sleeve MT 6

Main drive:
AC drive with 2-stage ZF gearbox (automatic shifting gearbox)
Drive power (100/60% duty cycle) 22/28 kW
Total speed range 1 - 2200 rpm
Maximum spindle torque: approx. 2200 Nm

X-axis (cross slide) performance data:
Maximum travel: 400 mm
Feed force: 14 kN
Speed: 4 m/min

Z-axis (bed slide) performance data:
Feed force: 18 kN
Speed: 7 m/min

Max. workpiece weight:
Between centers without steady rest: 2000 kg
With one steady rest: 2200 kg
With two steady rests: 2500 kg
In the chuck: 750 kg

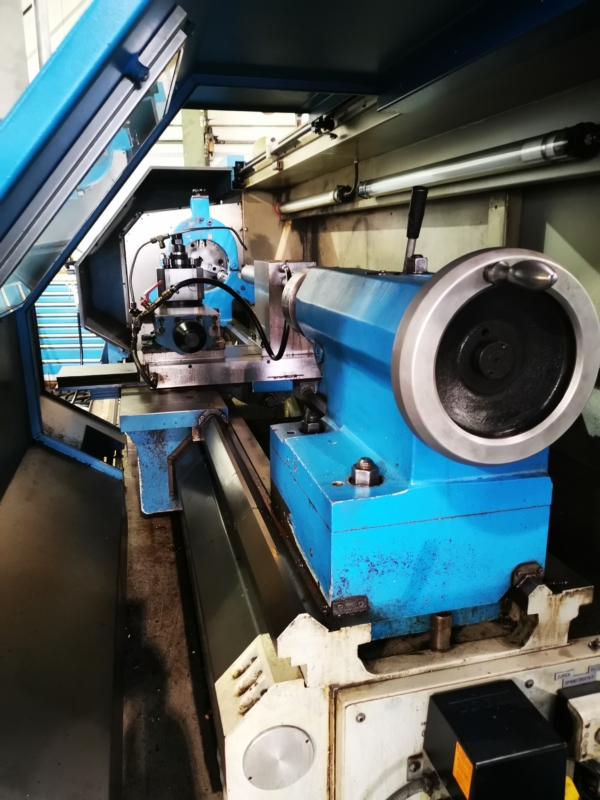

Tailstock:
Quad diameter: 115 mm
Quad stroke: 225 mm
Quad taper: MK 6

Equipment and accessories:

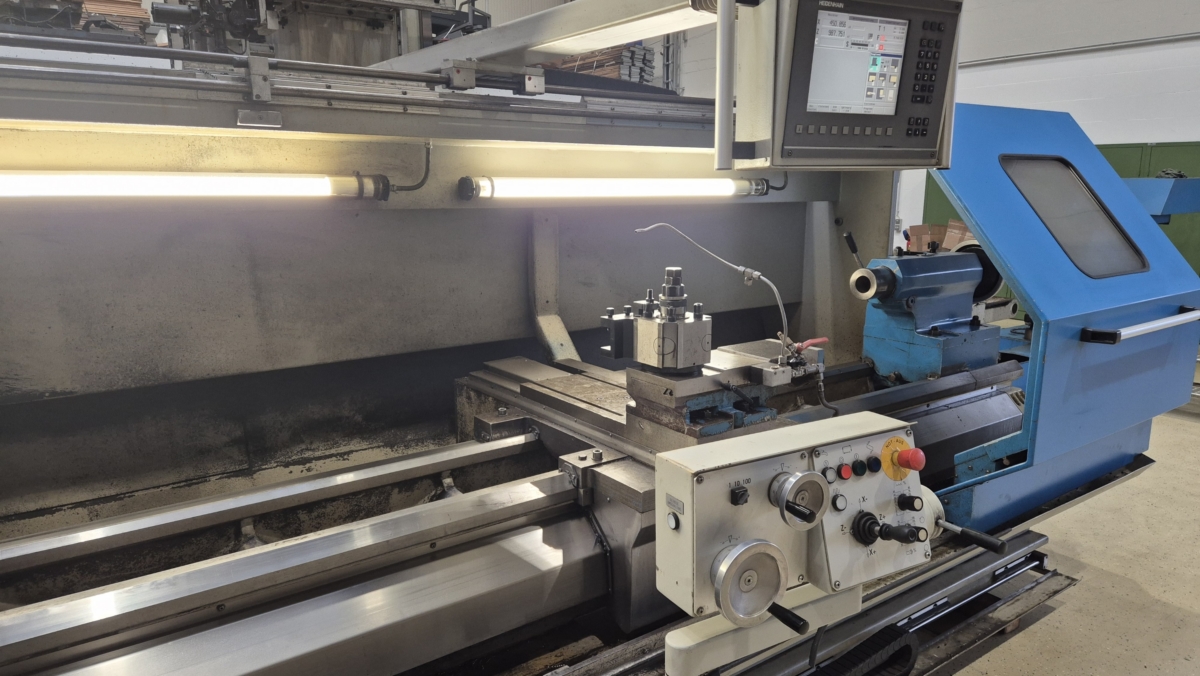

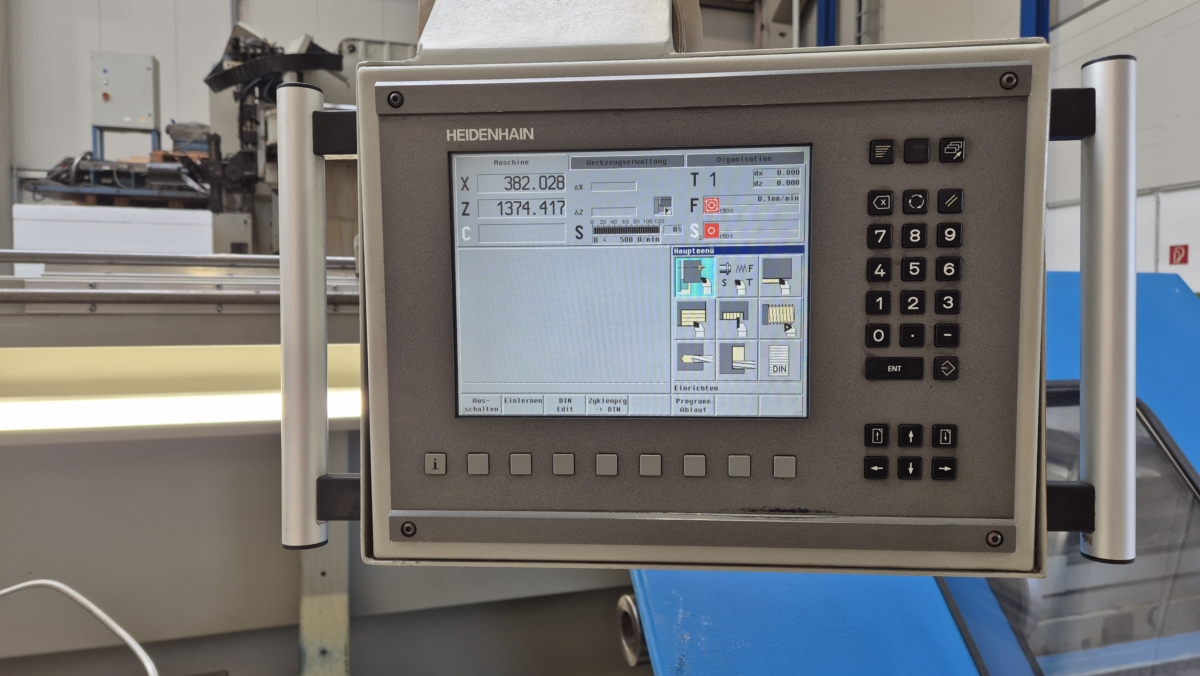

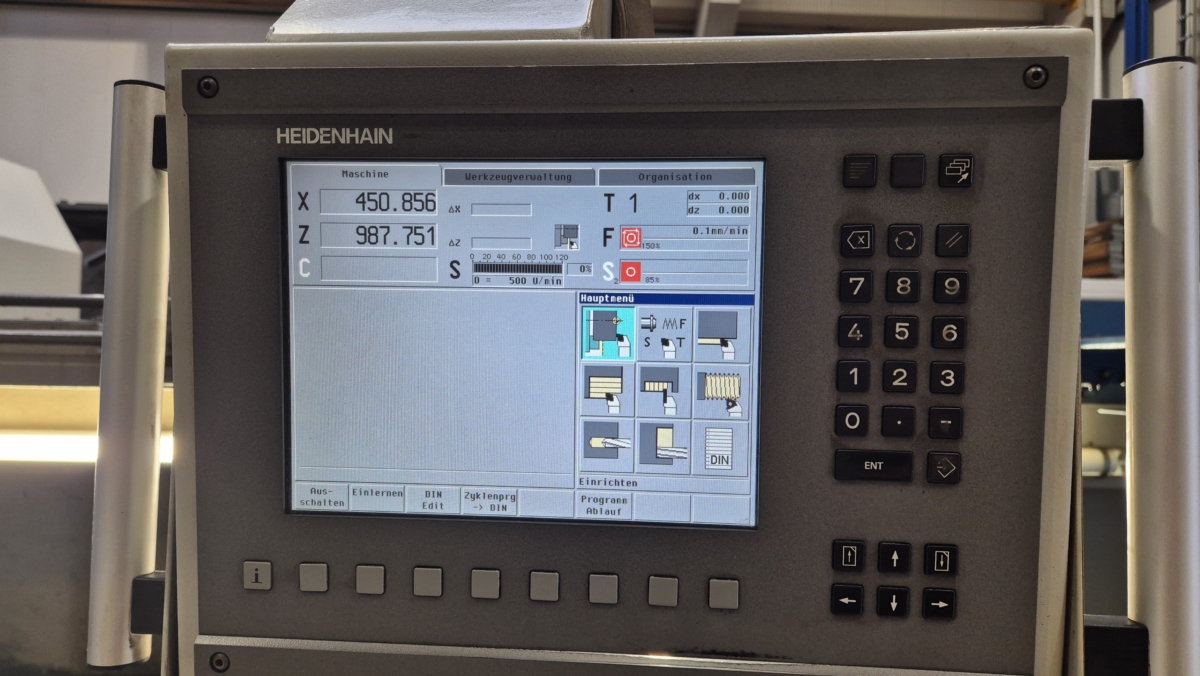

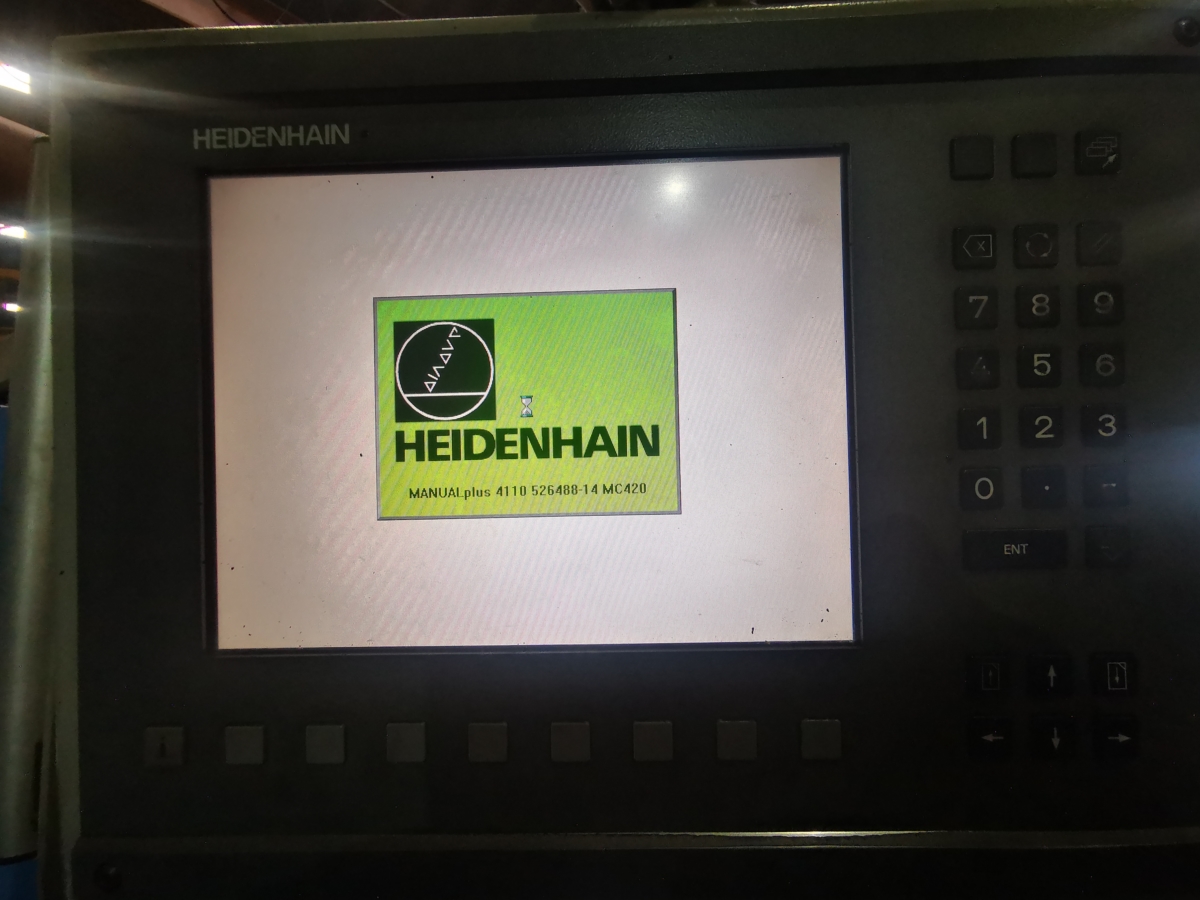

Heidenhain MANUALplus 4110 CNC control

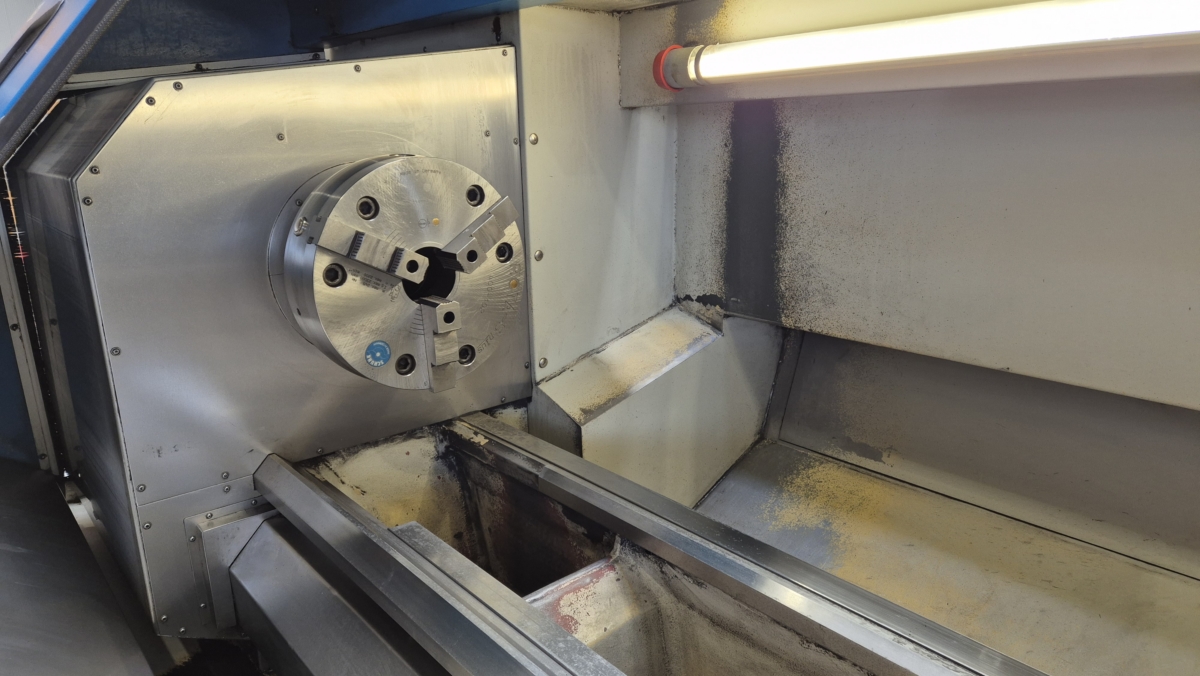

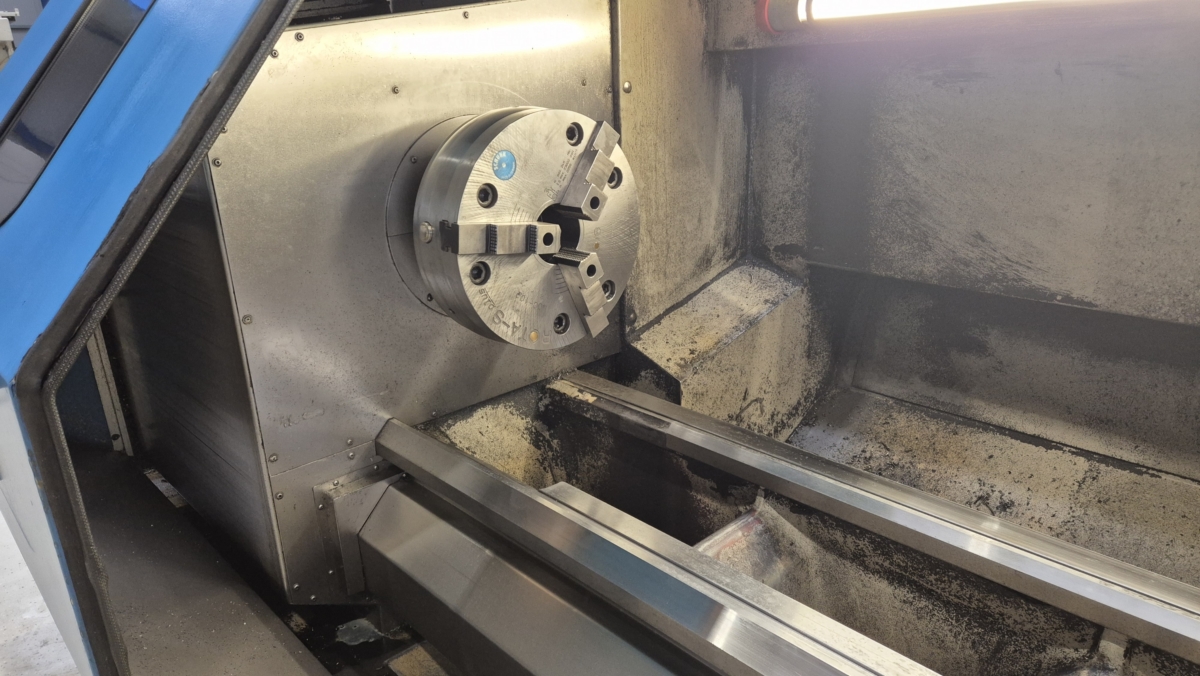

SCHUNK ROTASplus 400-102 3-jaw manual chuck

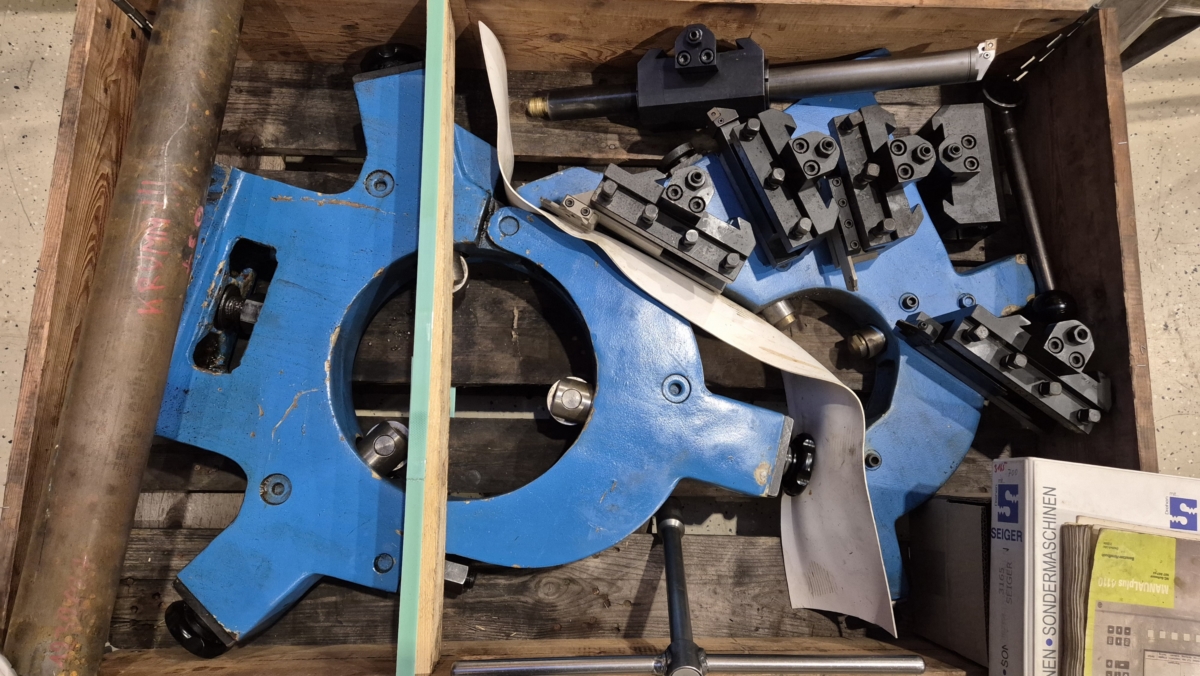

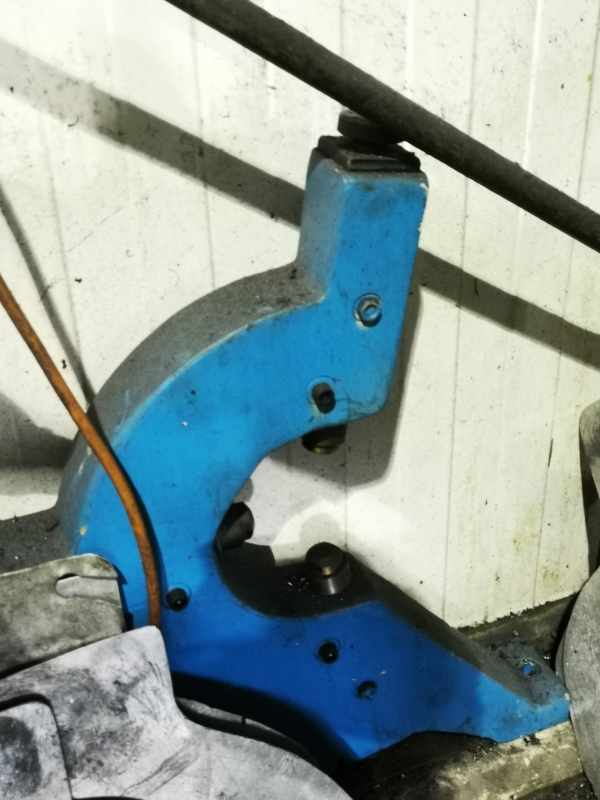

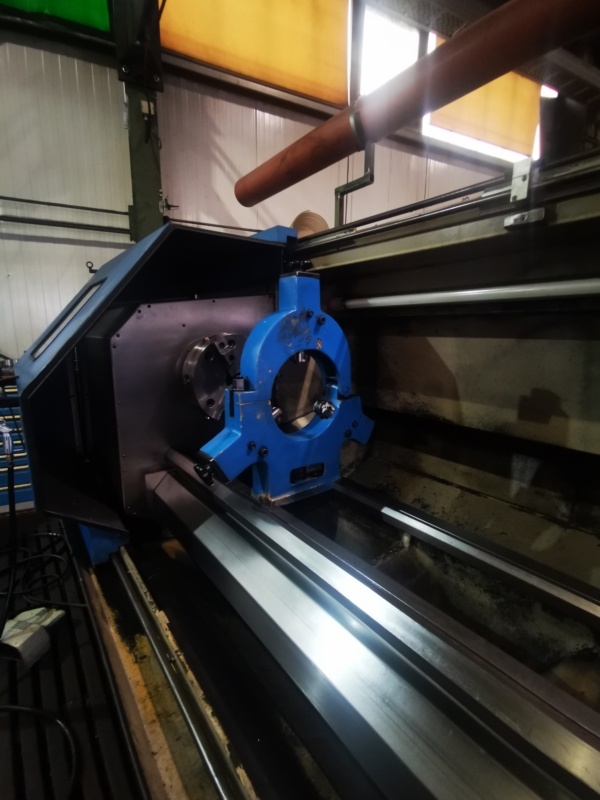

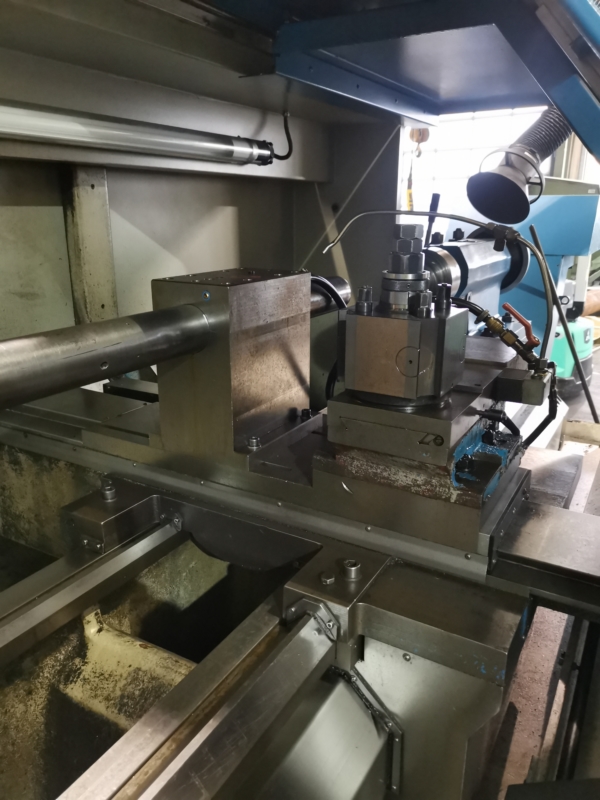

2 steady rests

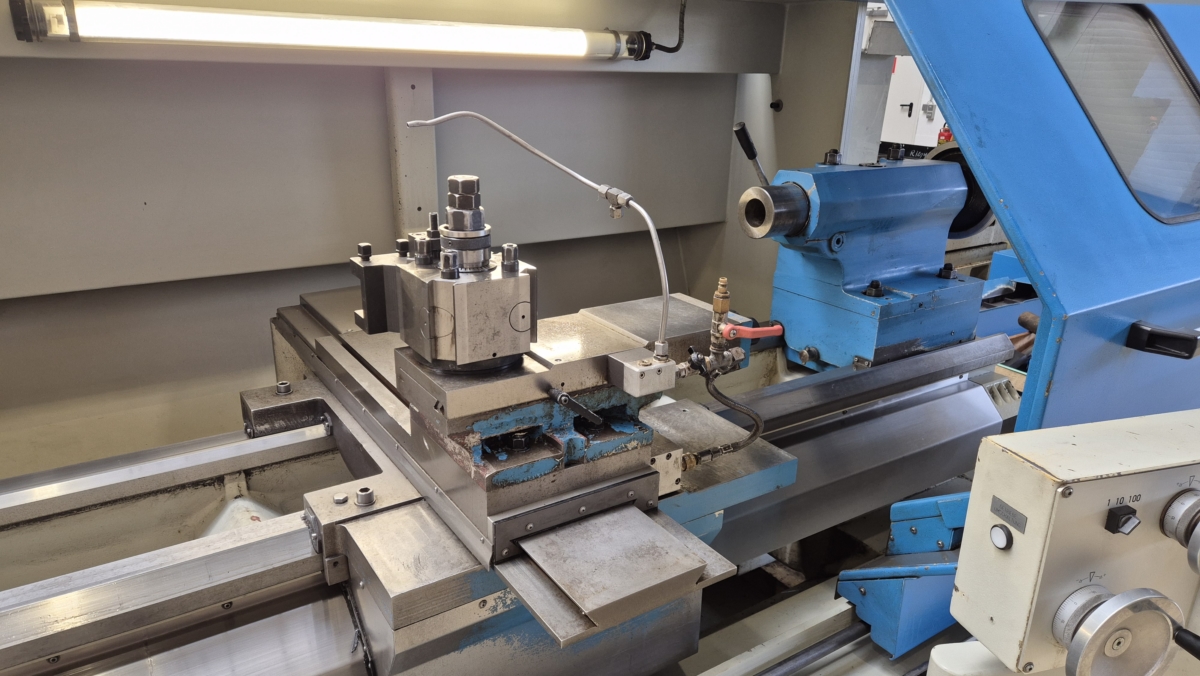

PARAT tool holder

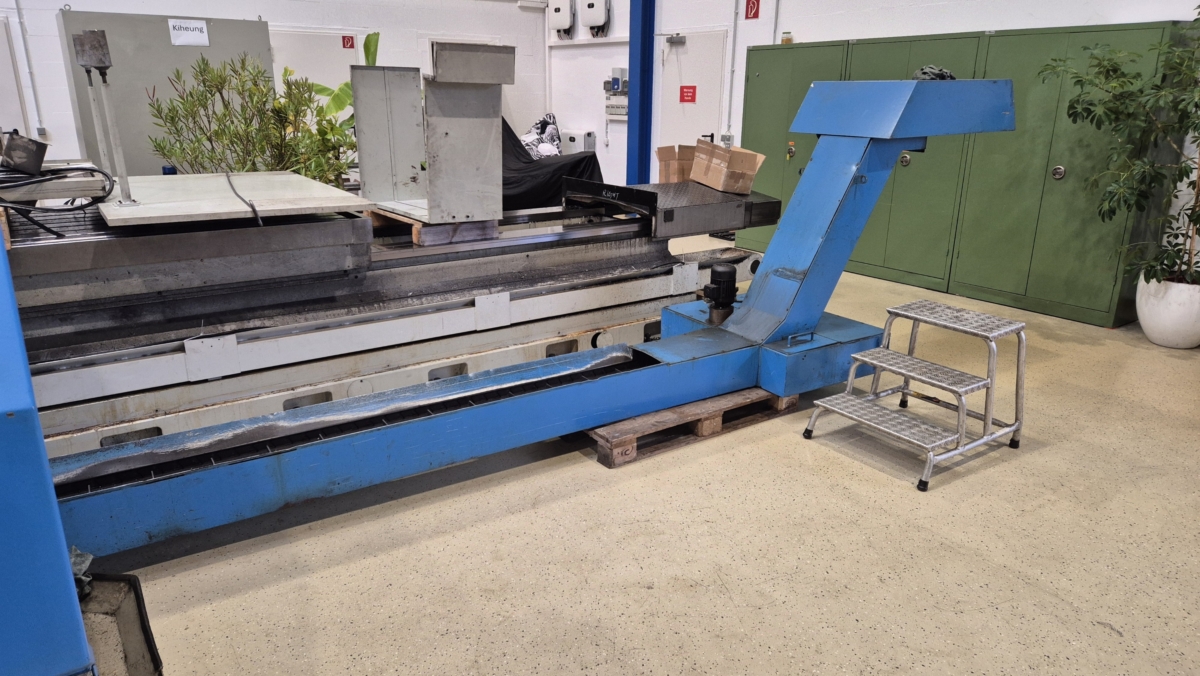

Chip conveyor
Coolant system

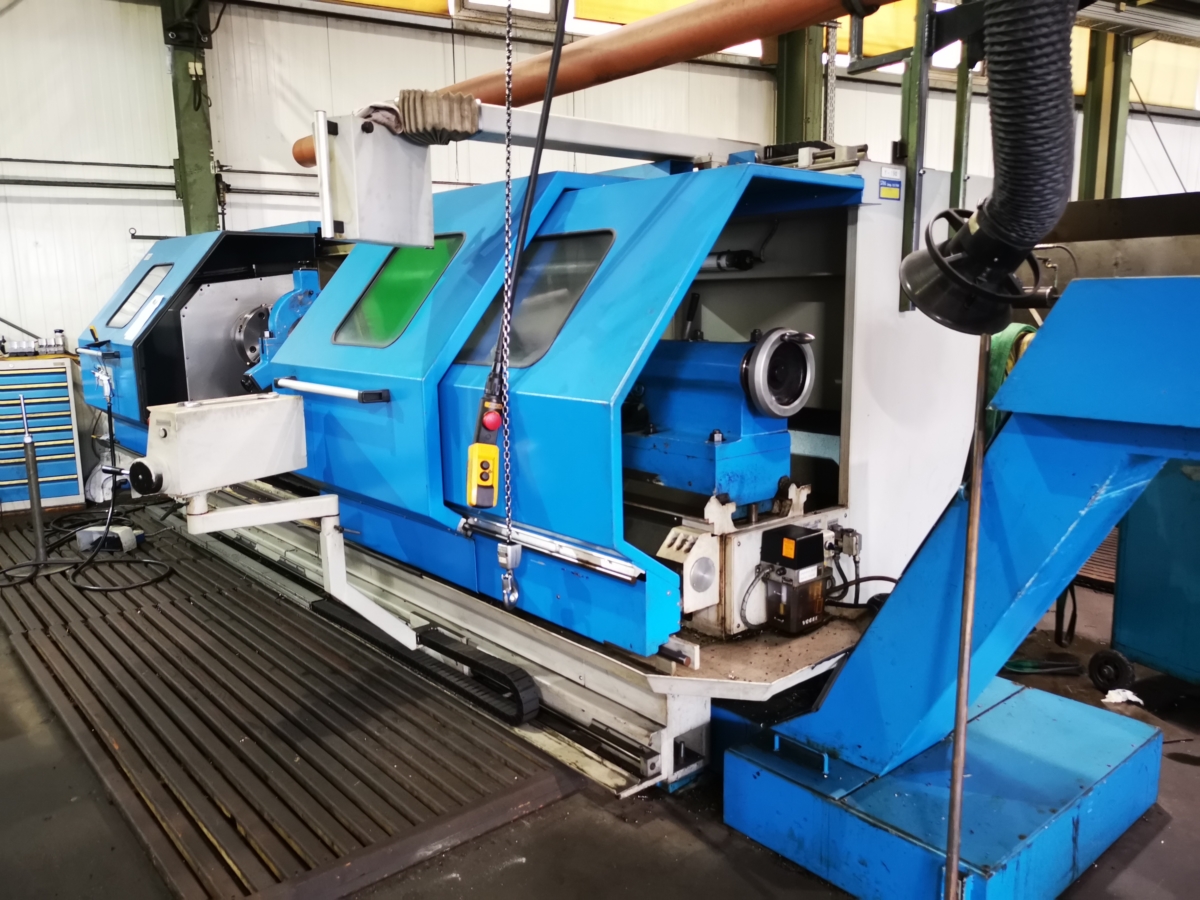

Work area enclosure with two sliding doors.

The machine is sold without a boring bar holder and boring bar.




Changes and errors in the technical details and information reserved.
