DATASHEET

MACHINE DETAILS

Stock No.
1022-2411
Machinetype
Machining Center - Universal
Make
BURKHARDT + WEBER
Type
MCR 900 HVC
Year of construction
2011
Control
CNC
Location
Monheim (Germany)
Country of origin
Germany
Delivery time
Immediately
Quotation
Ex warehouse, loaded on truck
Price

TECHNICAL DETAILS



x-travel
1600 mm
y-travel
1250 mm
z-travel
1600 mm
B-axis (table)
360.000 x 0,001° deg

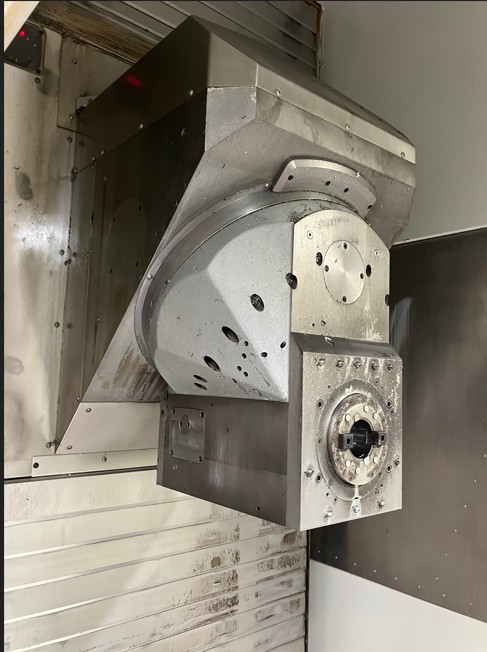

milling-head swivable +/-
(HV) 360.000° deg
pallet size:
1000 x 800 mm
table load
3000 kg
tool taper
SK 50-B
spindle turning speed range
max. 8000 U/min
transmission ratio
2
spindle drive
(100/40 % ED) 37/50 kW
feeds x/y/z -stepless
30000 mm/min
total power requirement
75 kVA
weight of the machine ca.
t
dimensions of the machine ca.
11555 x 7998 x 5050 mm



DESCRIPTION

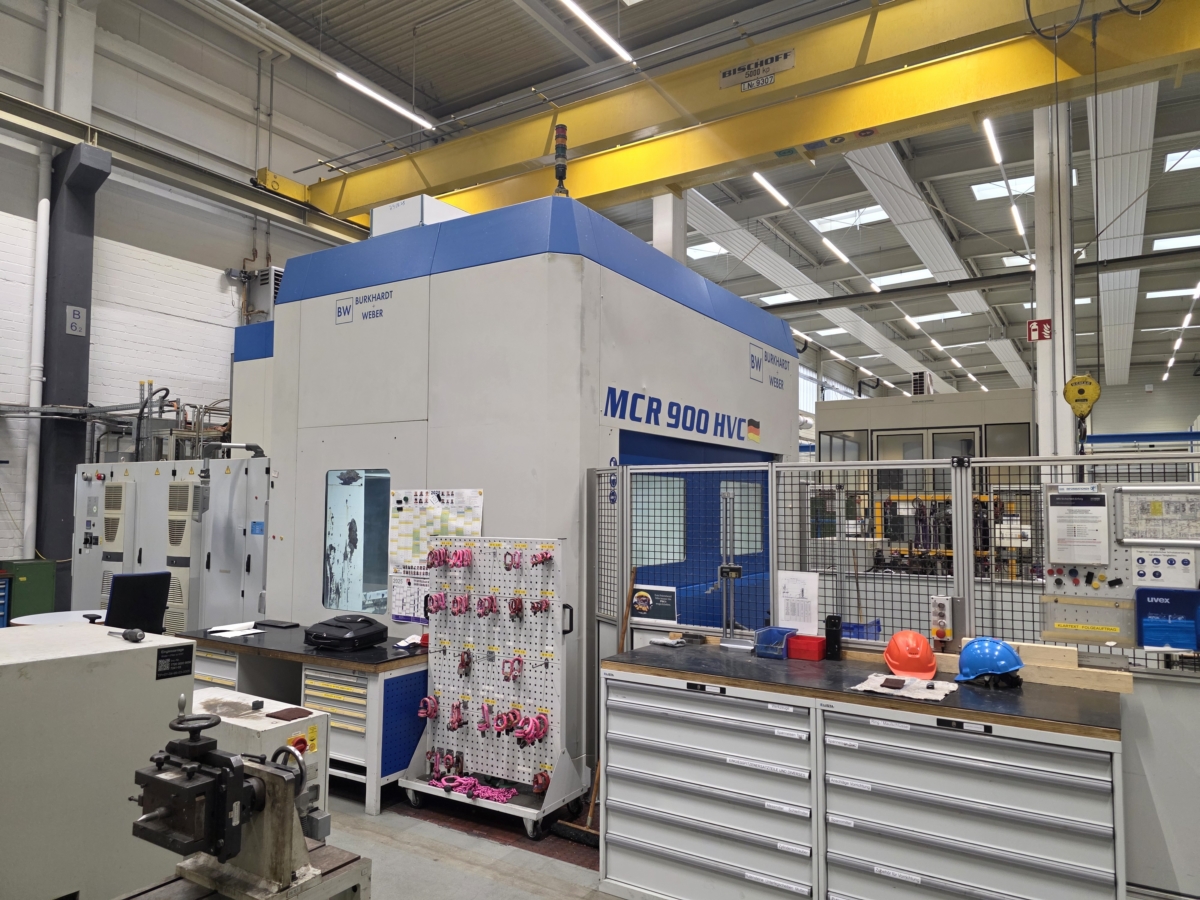

Universal machining center 5 axes simultaneously
Original purchase price: EUR 1.295.000,-

First machine installation in September 2011.

A geometry measurement report (dated 30. August 2025) is available.

Equipment:

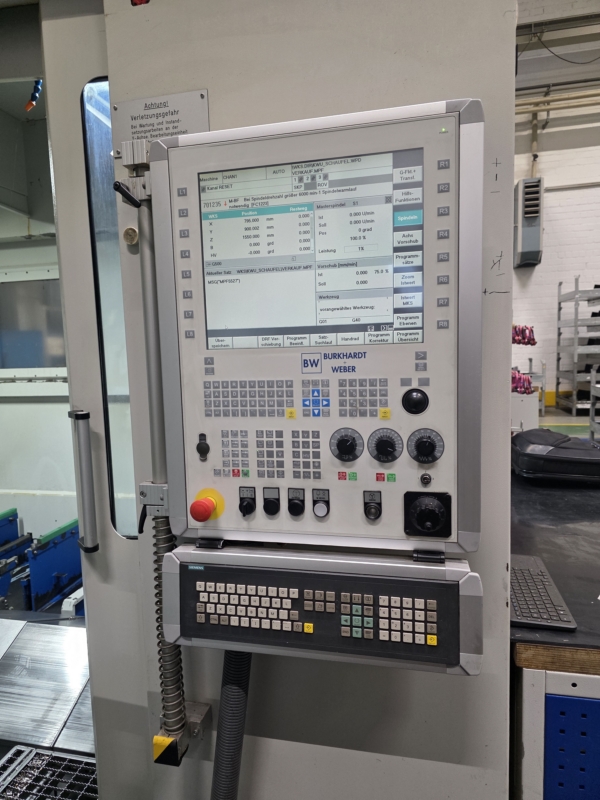

CNC-control Siemens 840D Solution Line

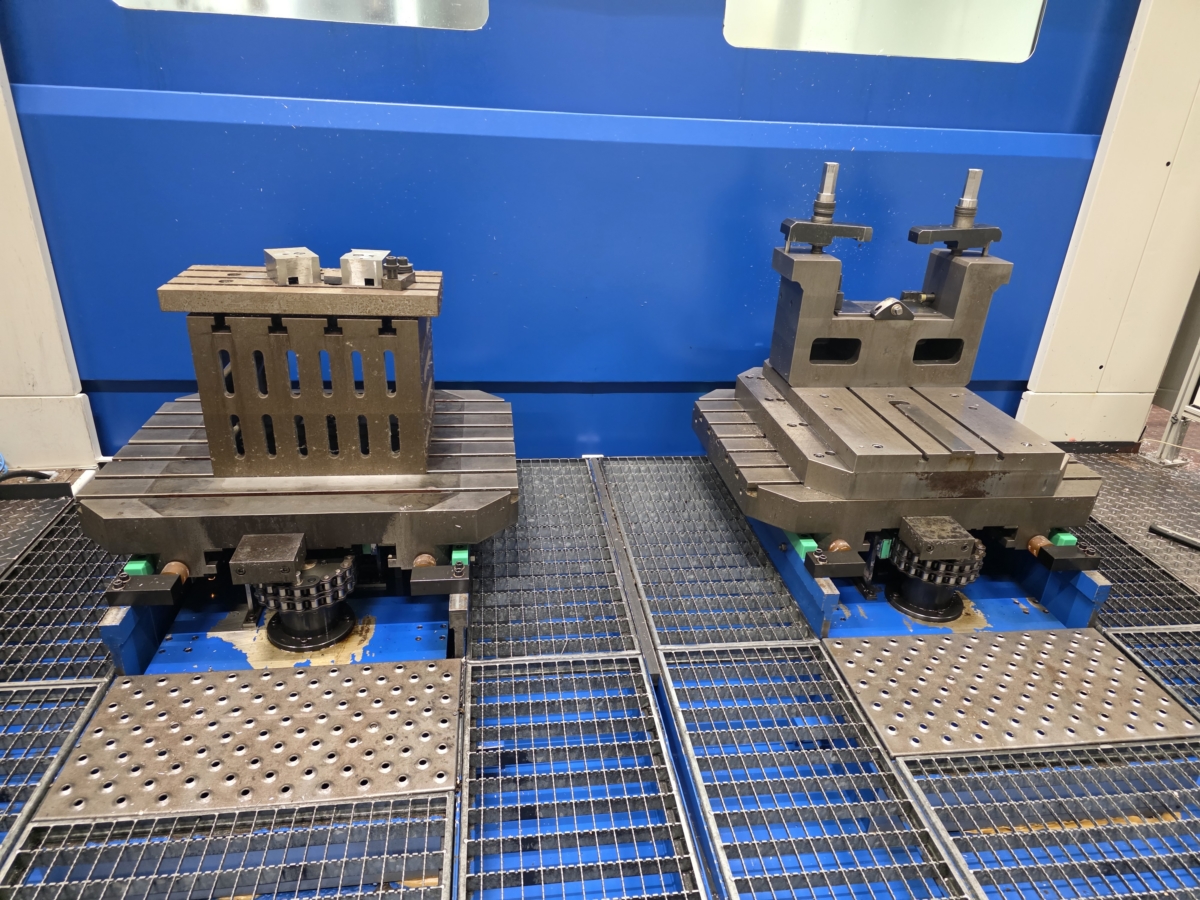

2-station pallet changer

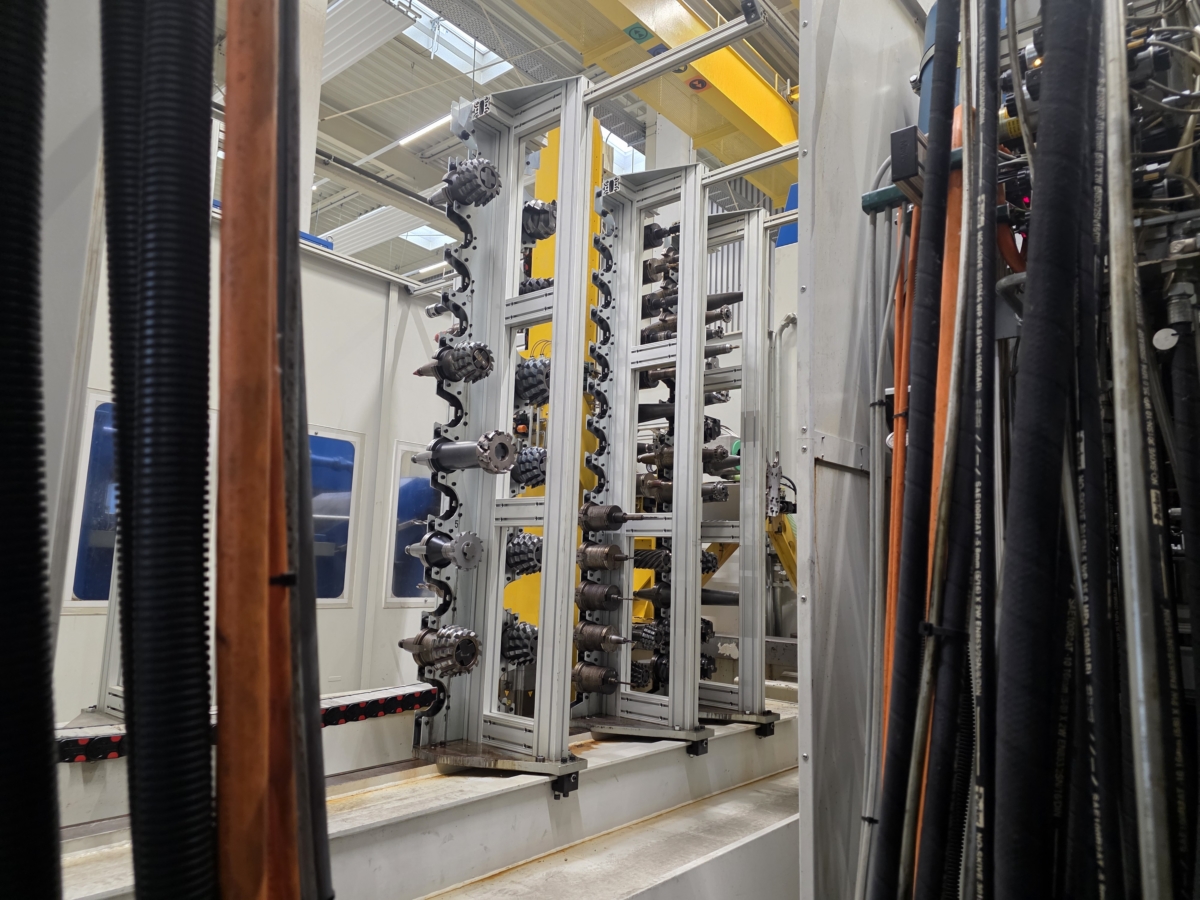

330-position tool changer (max. tool length 600 mm)
Tool taper cleaning system
Special cabin

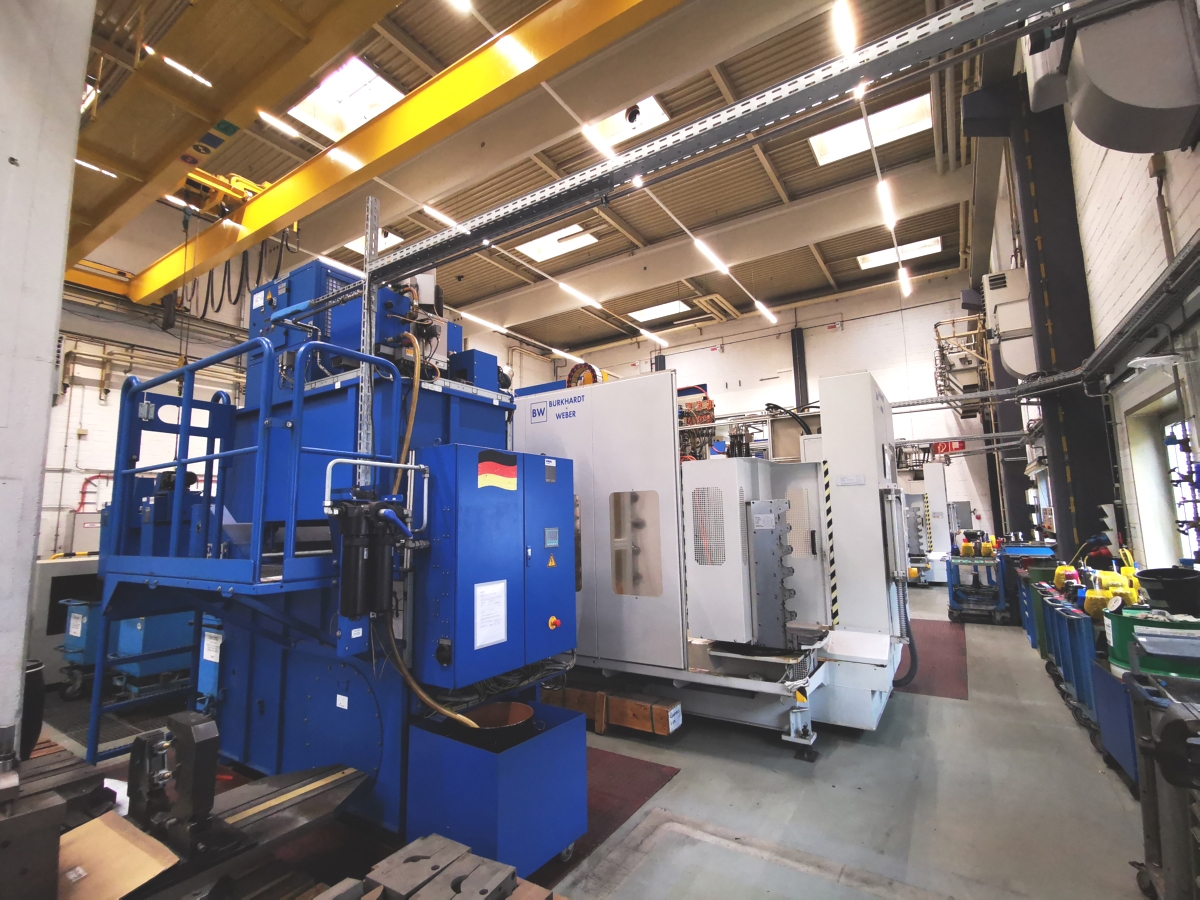

Coolant tank 3.300 liters, pump pressure 4 bar/50 bar (Q1/Q2)

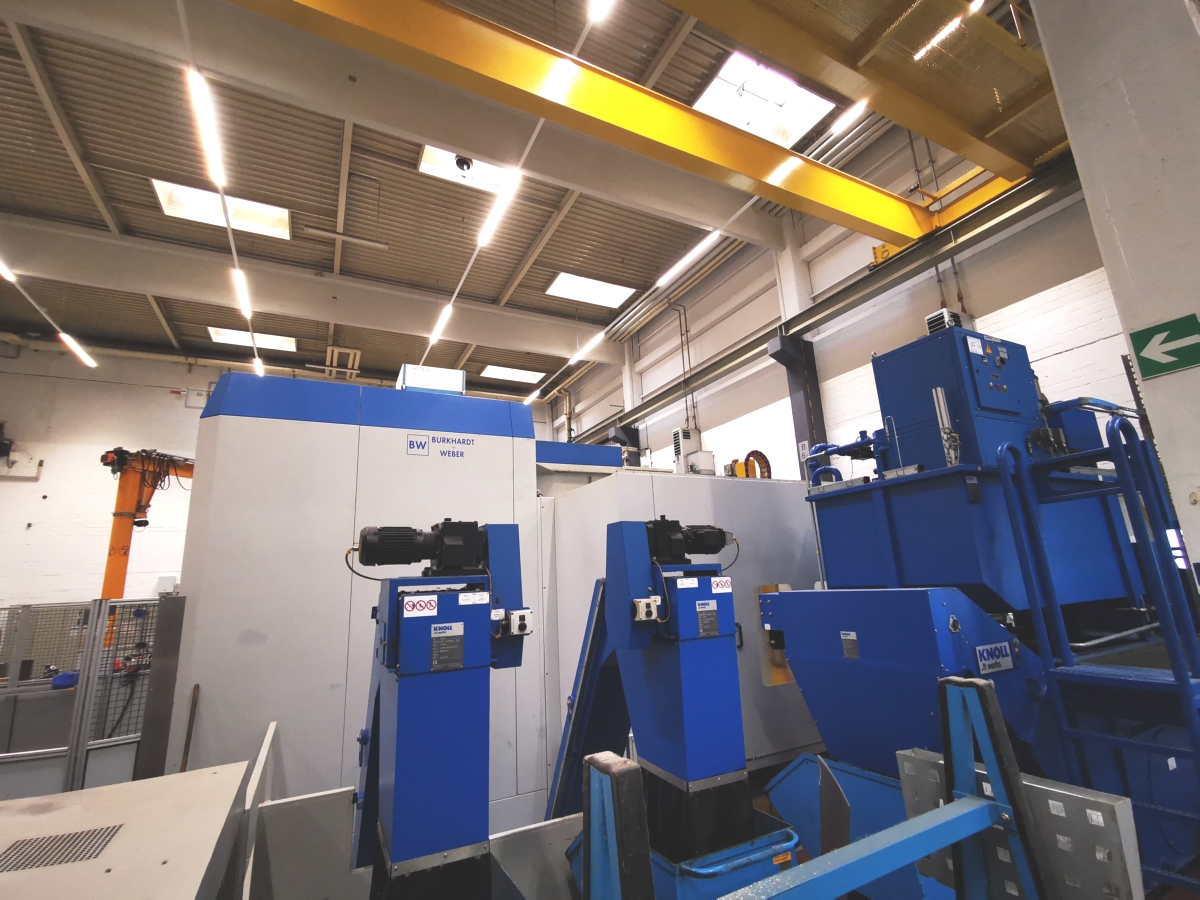

Chip conveyor
Workpiece measuring probe
Manual books

Note:
The machine will be sold without tool holders, tools, and clamping devices.




Changes and errors in the technical details and information reserved.
