DATASHEET

MACHINE DETAILS

Stock No.
1022-2410
Machinetype
Deephole Boring Machine
Make
AUERBACH
Type
AX2 TLF
Year of construction
2017
Control
CNC
Location
Monheim (Germany)
Country of origin
Germany
Delivery time
Immediately
Quotation
Ex warehouse, loaded on truck
Price

TECHNICAL DETAILS



core drilling diameter max.
3 - 28 mm
bore depth
1000 mm
control
Heidenhain TNC 640
x-axis
1000 mm
y-axis
800 mm
z-axis
800 mm
spindle head - swivable
(W) +15°/-30° deg
B-axis (table)
360.000° deg
table surface area
1000 x 1000 mm
table load
5,0 t
tool taper
SK 40
spindle turning speed range
60 - 6000 U/min
spindle motor
12 kW
total power requirement
58 kW
weight of the machine ca.
14 t
dimensions of the machine ca.
6,35 x 4,75 x 3,80 m



DESCRIPTION

5 axes Deep Drilling-Milling-Machine

A current geometry measurement report is available.

Equipped with:

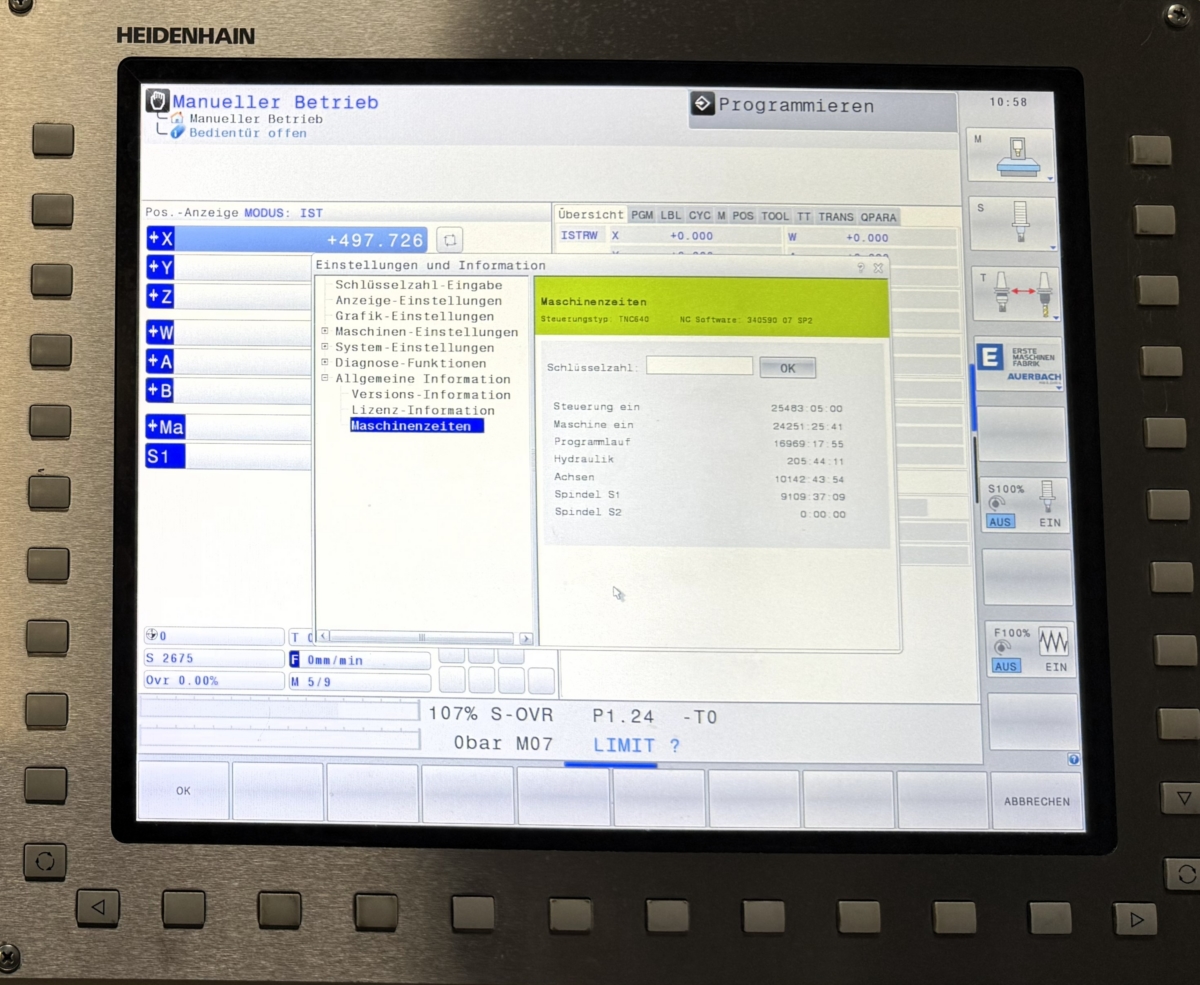

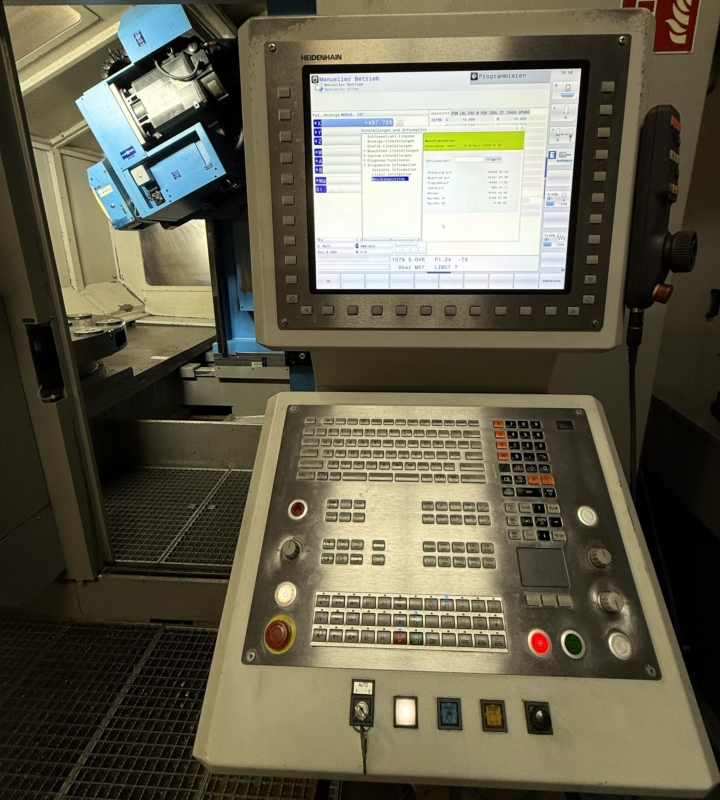

HEIDENHAIN TNC 640 control
5 CNC AXES X – Y – Z – W – B
NC rotary table 360.000 deg.
Milling performance 150 cm3/min.
Direct linear position measuring system
Digital AC drives

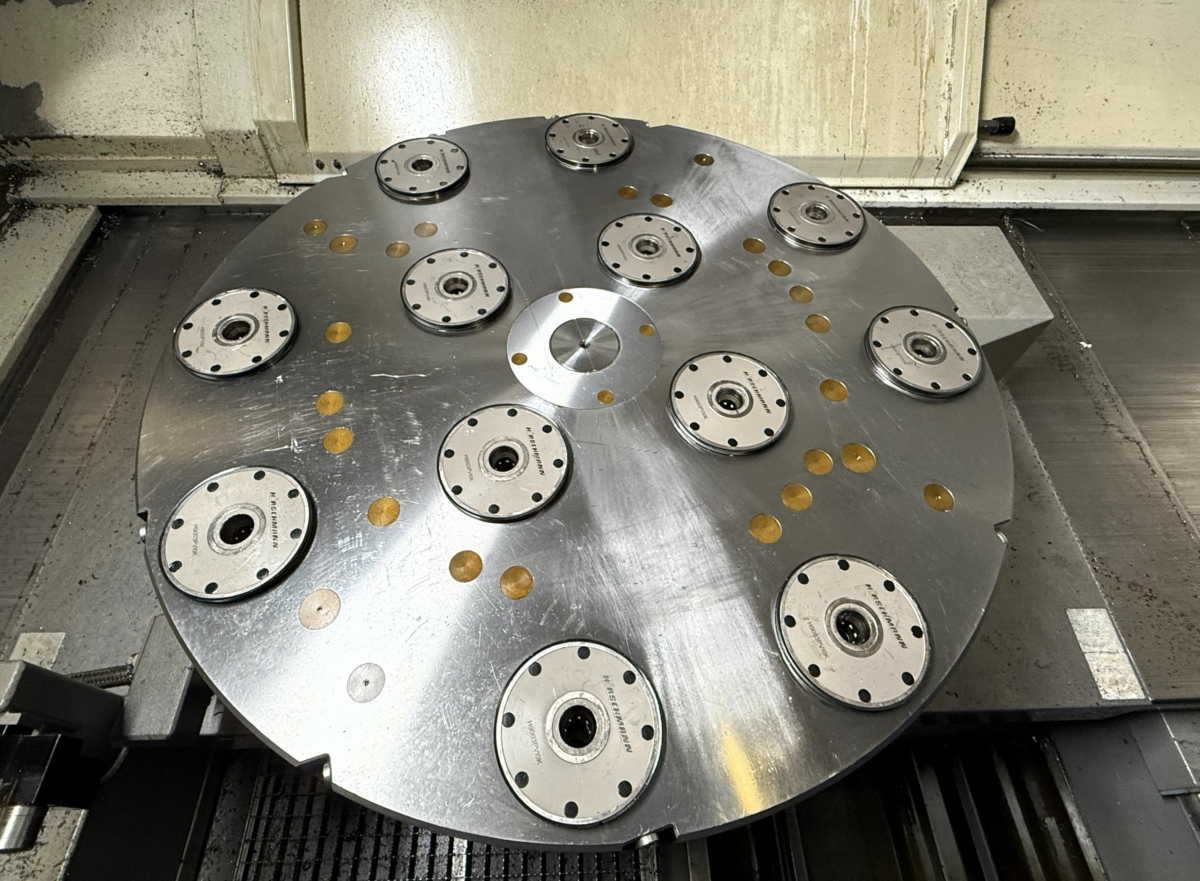

Table design with Hirschmann zero-point clamping system

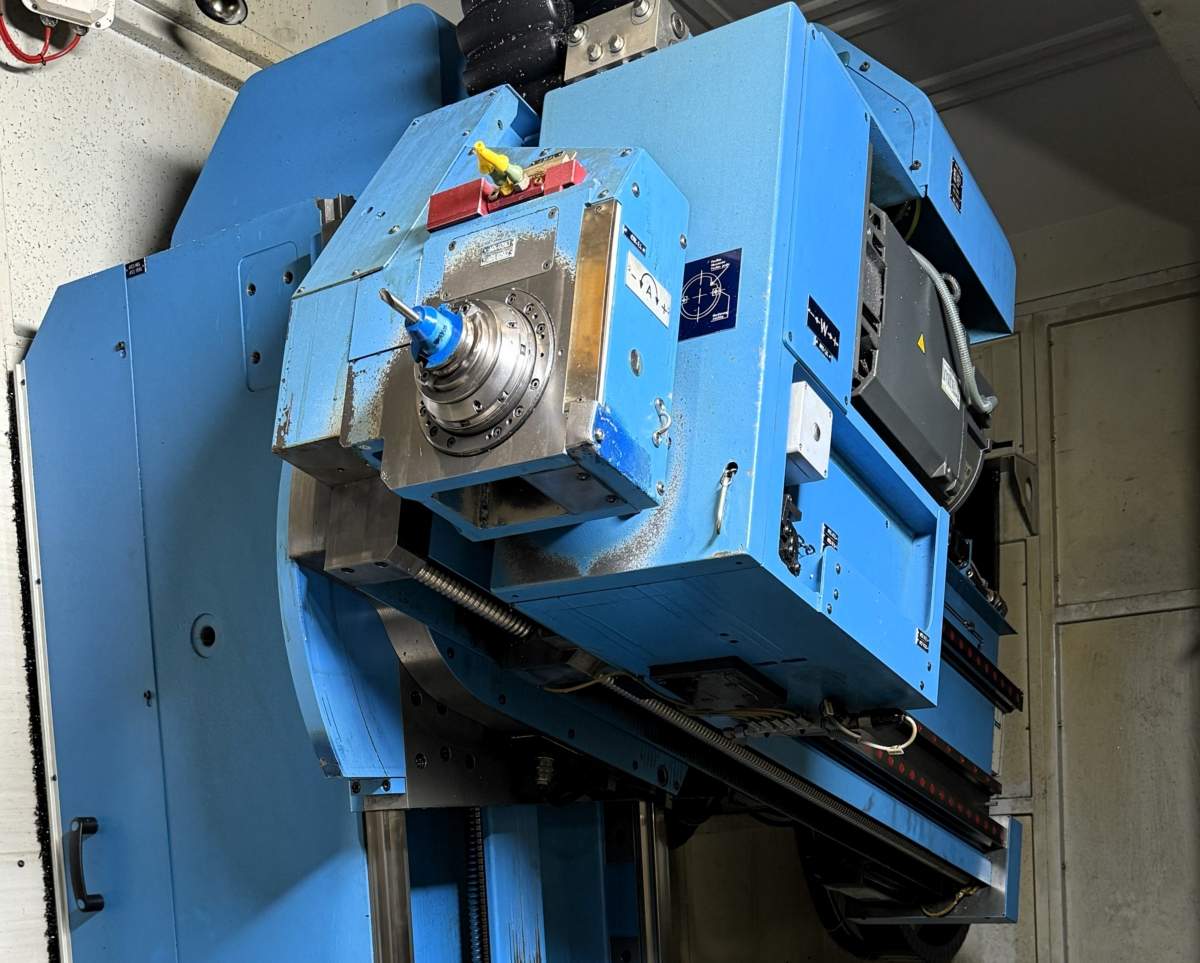

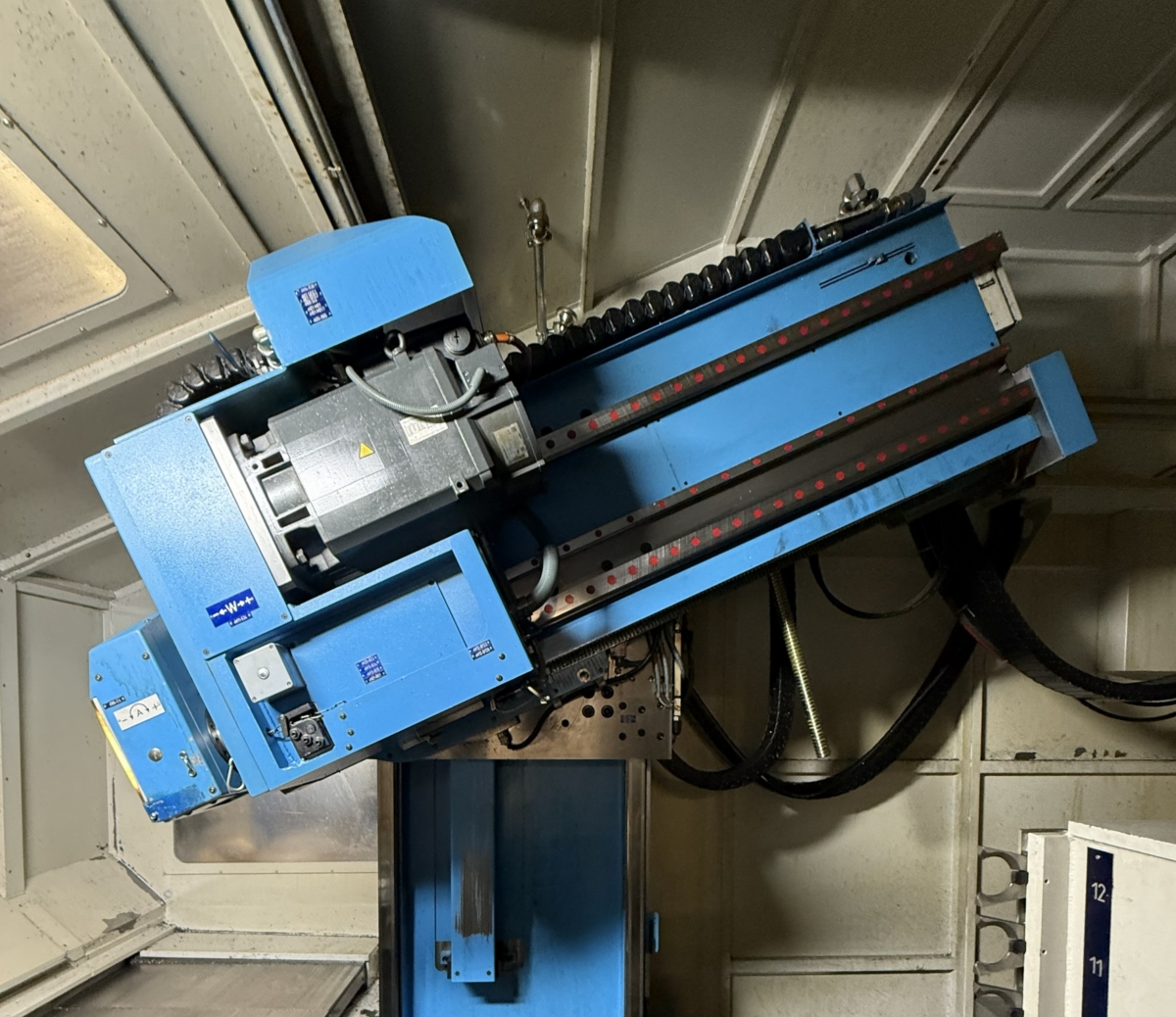

NC-controlled tilting of the deep hole drilling/milling unit (W) +15/-30 deg.

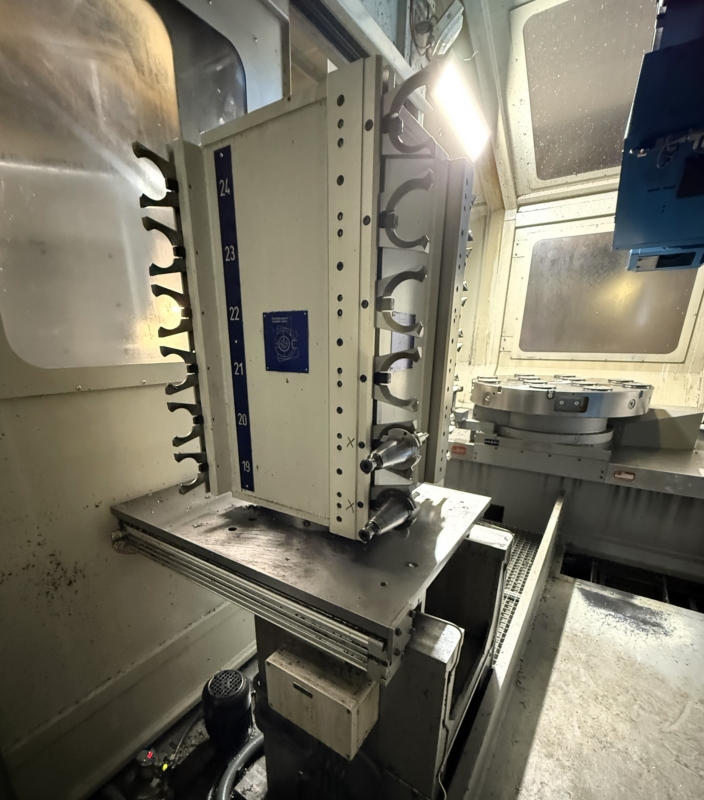

Automatic tool changer for 24 tools
Internal coolant supply
High-pressure coolant system 1200 liters for deep hole drilling oil up to 140 bar

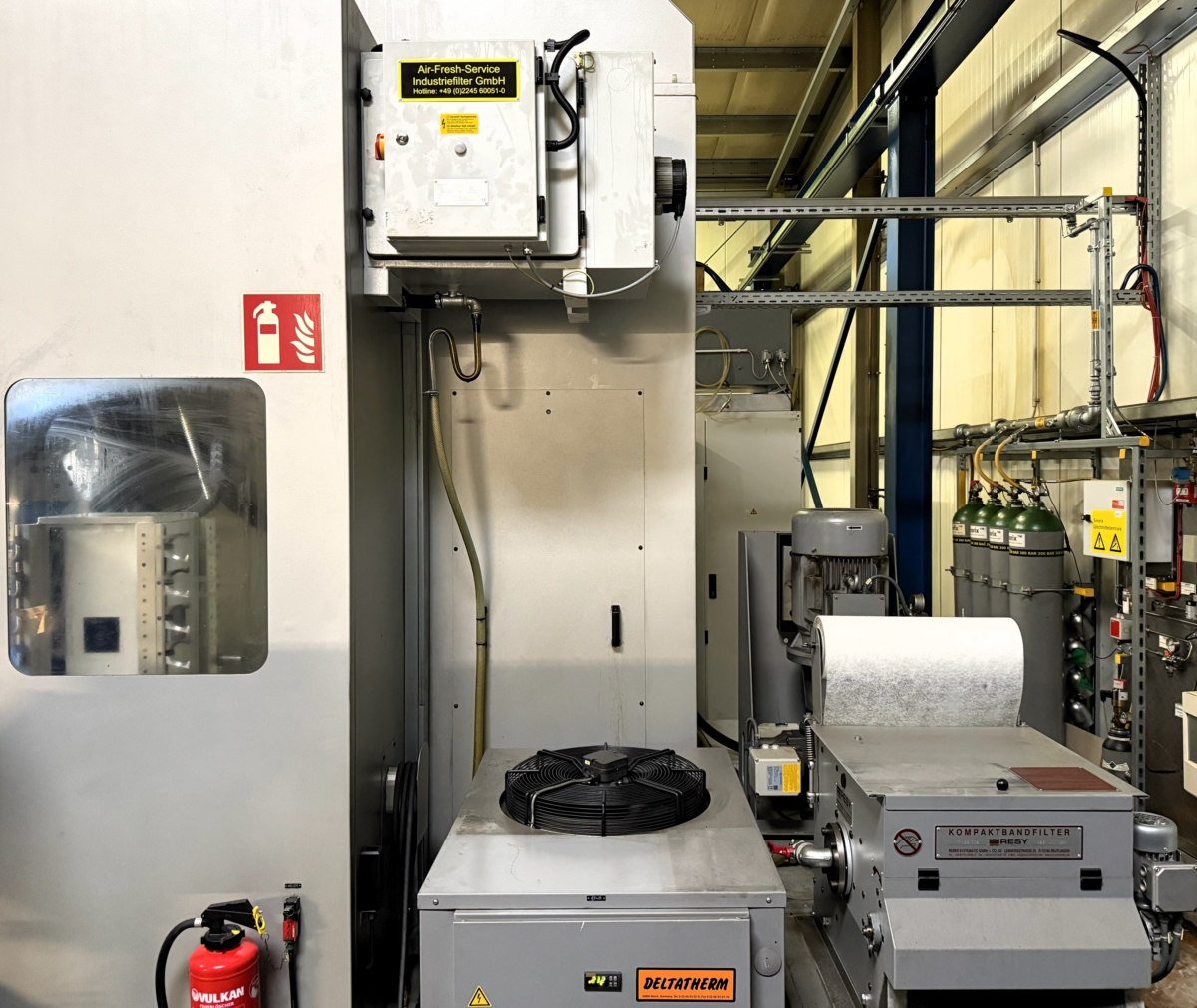

Paper belt filter system
SIEMENS extinguishing system
Fire protection system
Spindle cooling
Oil temperature control
3D HEXAGON probe
RENISHAW tool measurement
Electronic handwheel
OPT kinematics
Chip conveyor
Coolant pressure and flow control
Collision and vibration monitoring
Feed control
Coolant gun
MONTRONIX machine airbag
Oil mist extraction

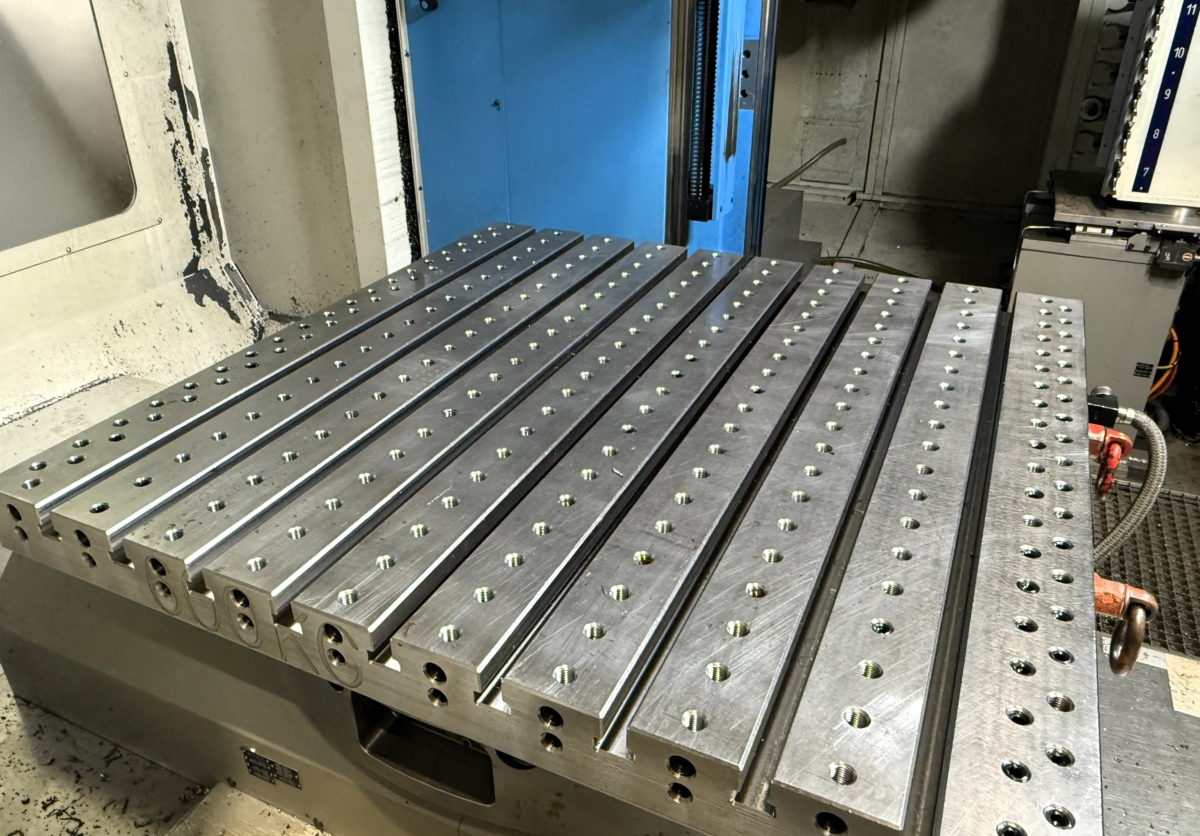

2 clamping plates

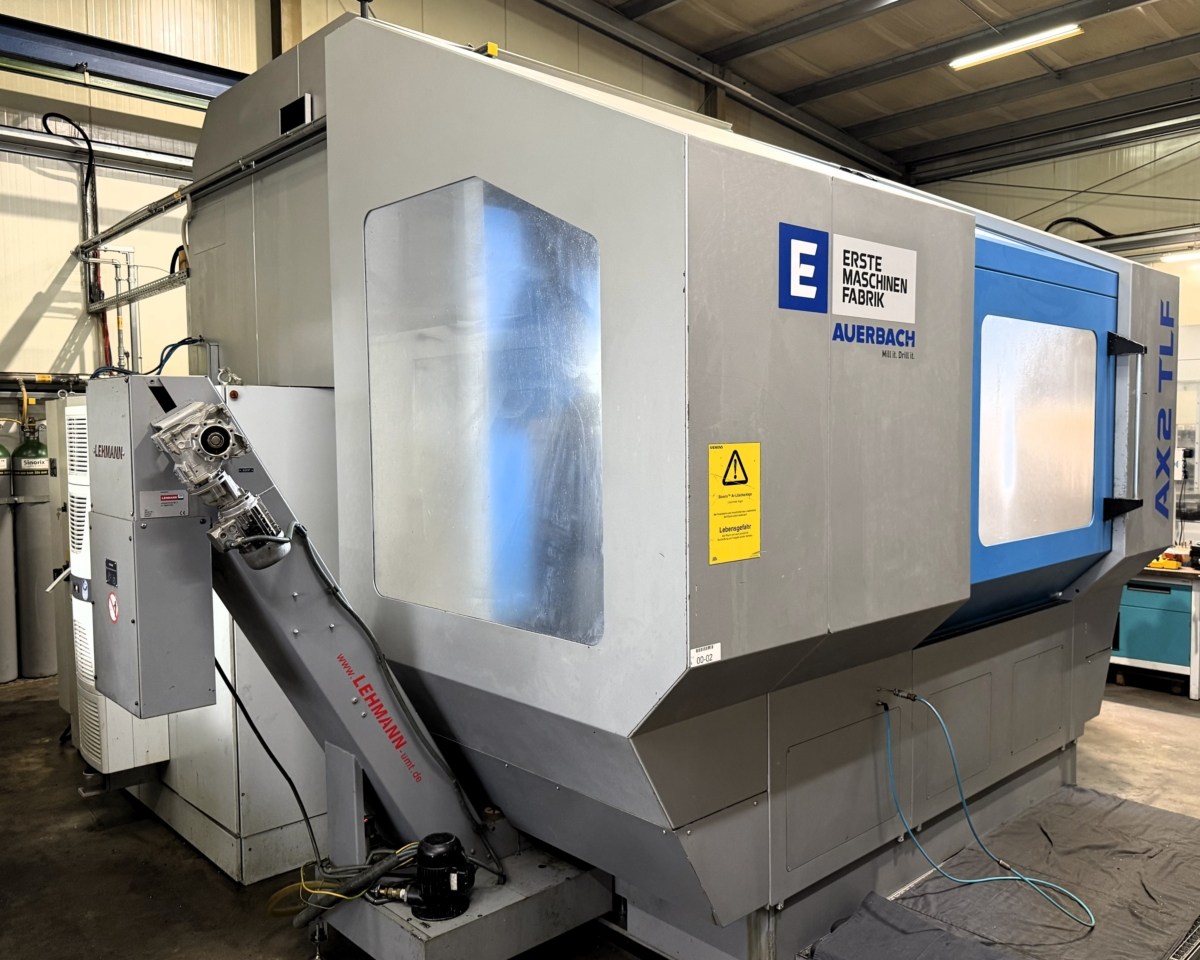

Walk-in full enclosure with roof and opening for crane loading

Included in delivery:
Operating manual
Documentation
Machine parameters on USB stick




Changes and errors in the technical details and information reserved.
