DATASHEET

MACHINE DETAILS

Stock No.
1022-2406
Machinetype

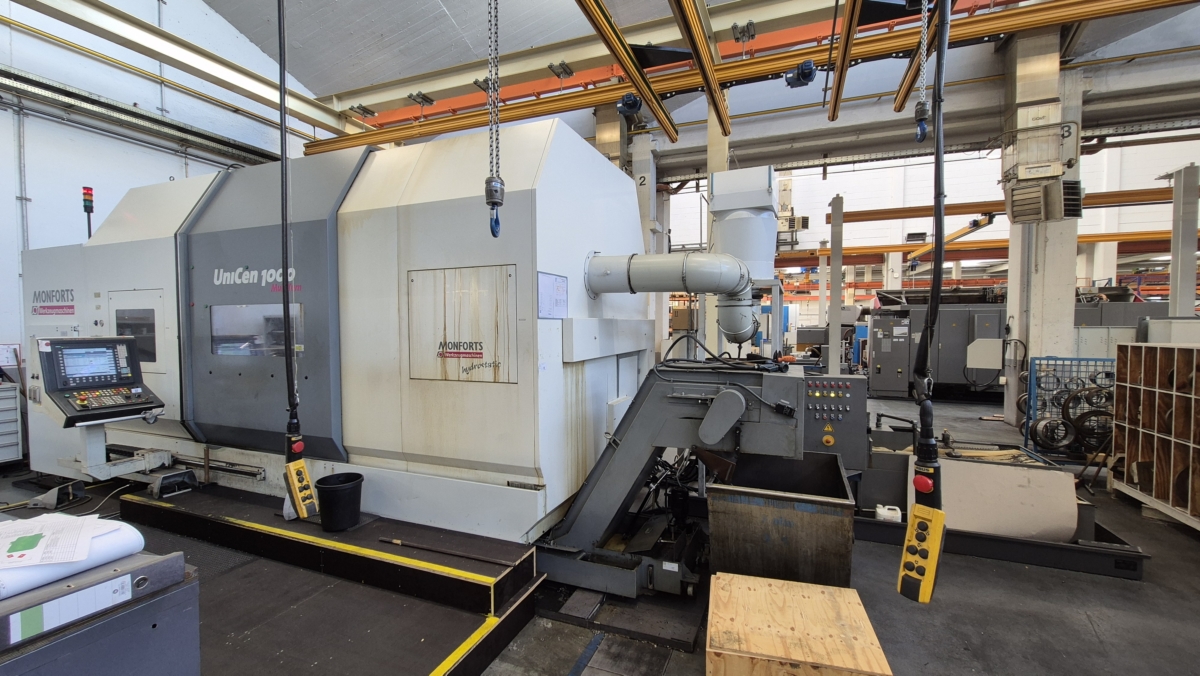

CNC Turning- and Milling Center
Make
MONFORTS
Type
UniCen 1000 MultiTurn
Year of construction
2008
Control
CNC
Location
Monheim (Germany)
Country of origin
Germany
Delivery time
Immediately
Quotation
Ex warehouse, loaded on truck
Price

TECHNICAL DETAILS



turning diameter
800 mm
turning length
1500 mm
control
Siemens 840 D
swing over bed
1000 mm
swing diameter over slide rest
800 mm
max. workpiece weight between centres
2000 kg
main spindle speeds:
2000 U/min
main drive
62 kW
transmission ratio
4
milling spindle drive
37 kW
milling spindle turning speed range:
25 - 10000 U/min
total power requirement
82 kVA
weight of the machine ca.
28 t
dimensions of the machine ca.
8,2 x 5,3 x 3,6 m



DESCRIPTION

UniCen Series – for large complex components

With the Monforts machine tools from the UniCen Series 1000 you can work
with large, complex components up to 1500 mm diameter and 1000 mm swing diameter
entirely, process capably and cost effectively in one set-up. Great flexibility
results from the five interpolating axis. The B axis swivelling drill-mill head
with a swivel range of 190 deg. directs the tools to the workpiece in almost every
position and every angle. Additionally, the tool head can be loaded fully
automatically by 60 tools from a separate chain magazine. Thus,
even complex freeform surfaces with high surface finish quality are possible.

Advantages
> Wear free Monforts Hydrostatic
> Optimal vibration damping
> Long-term accuracy
> Long life and highest machining
performance
> Complex five axis machining via the B axis
swivelling drill-mill head
> Turning, drilling, milling and thread-cutting
on one machine
> Precision ball-screw with preloaded
double nut


Extensive partial overhaul since November 2023:
- All ball screws including bearings overhauled: X1/X2/Y1/Z1/Z2
- All cylinders overhauled
- All Siemens motors overhauled: main spindle, tailstock, magazine,
tool 1+2, X/Z/Y/B/C/U/W

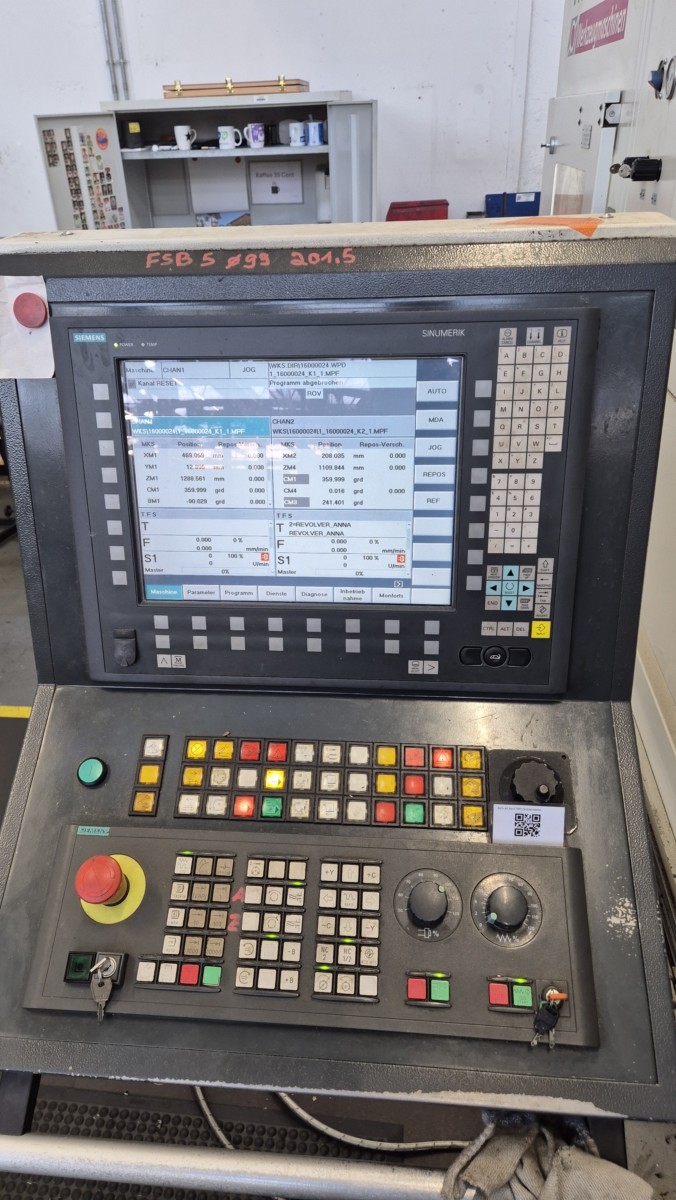

- Siemens control panel replaced, control module and LT module repaired
- Clamping elements/ATC renewed: Ortlieb collet, clamping package incl. pull rod
- Tailstock quill renewed
- All wipers replaced and covers reworked
- Drive belts and safety windows renewed
- Various cables renewed


* CNC Control SIEMENS 840 D

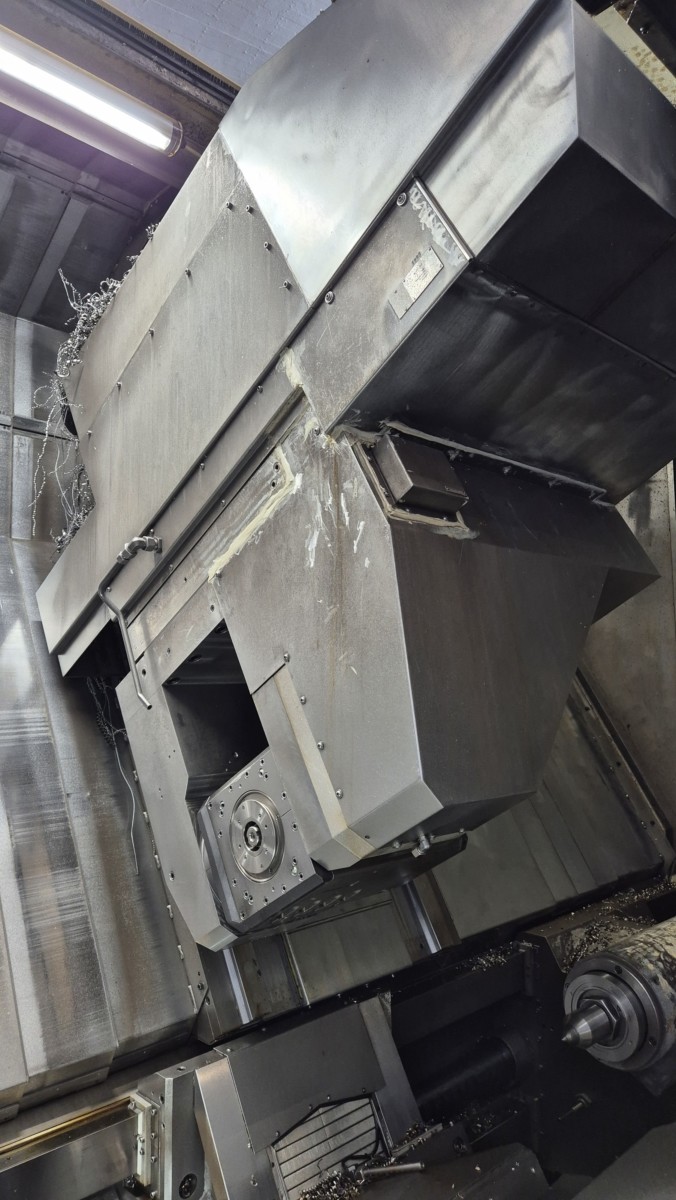

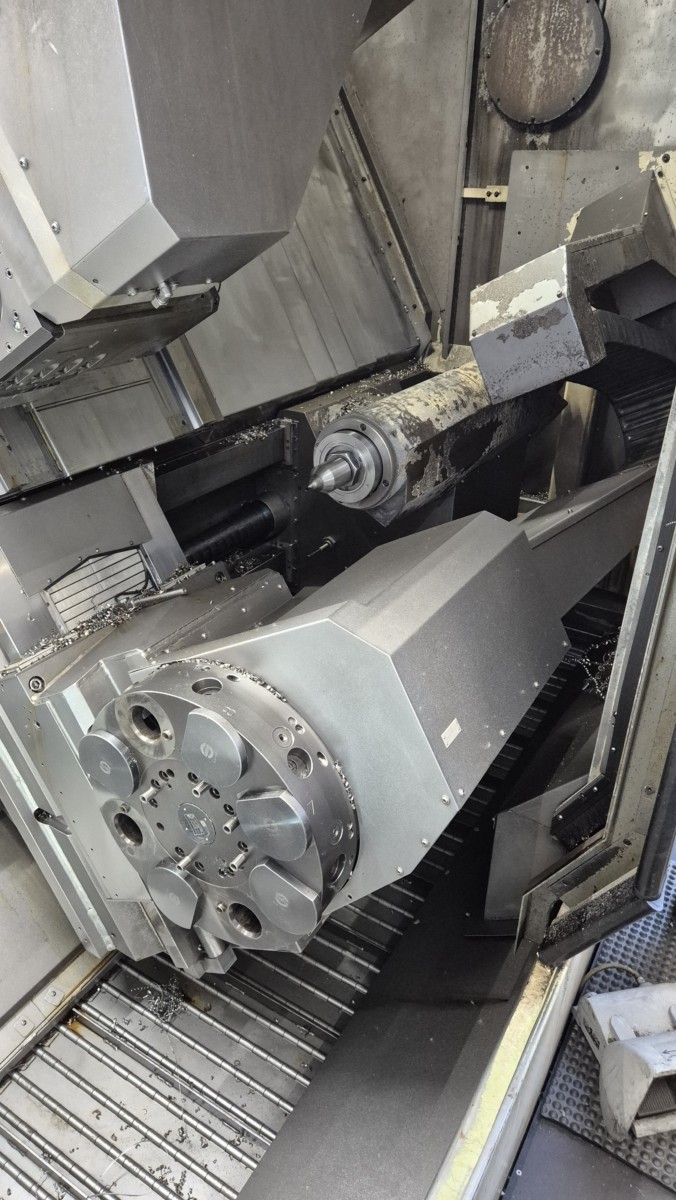

* Swivelling milling head at the top (B axis), interpolating, HSK-A 63
* Y axis
* C axis

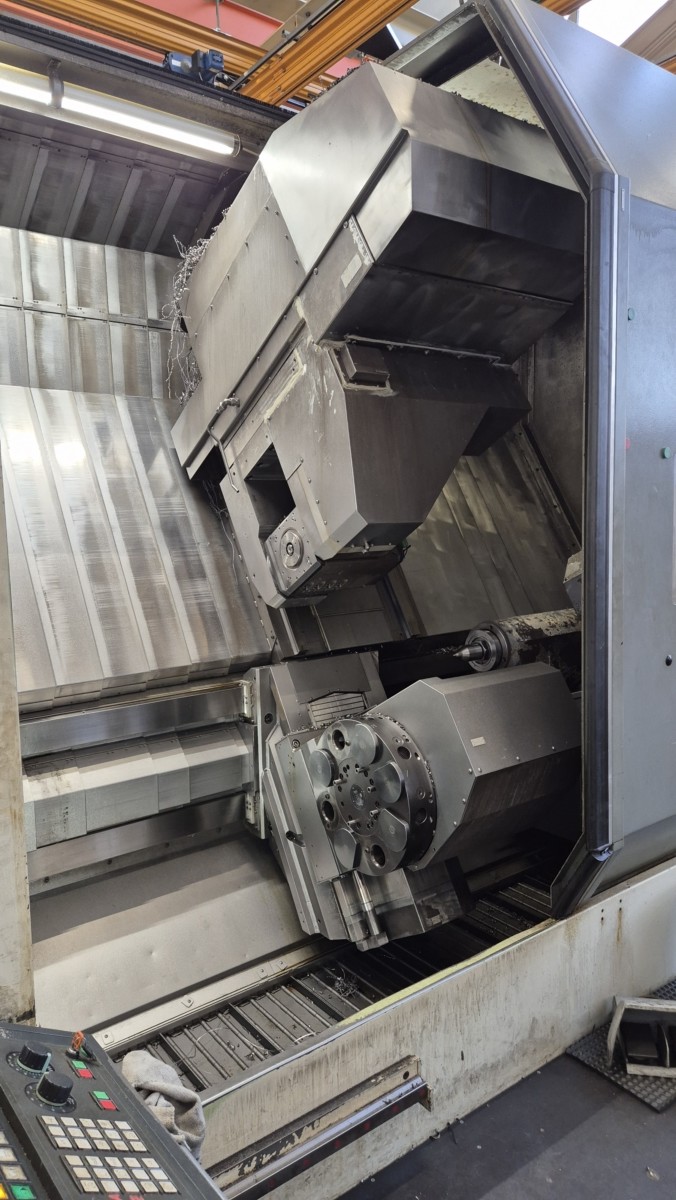

* 8-station turret at the bottom, for driven tools

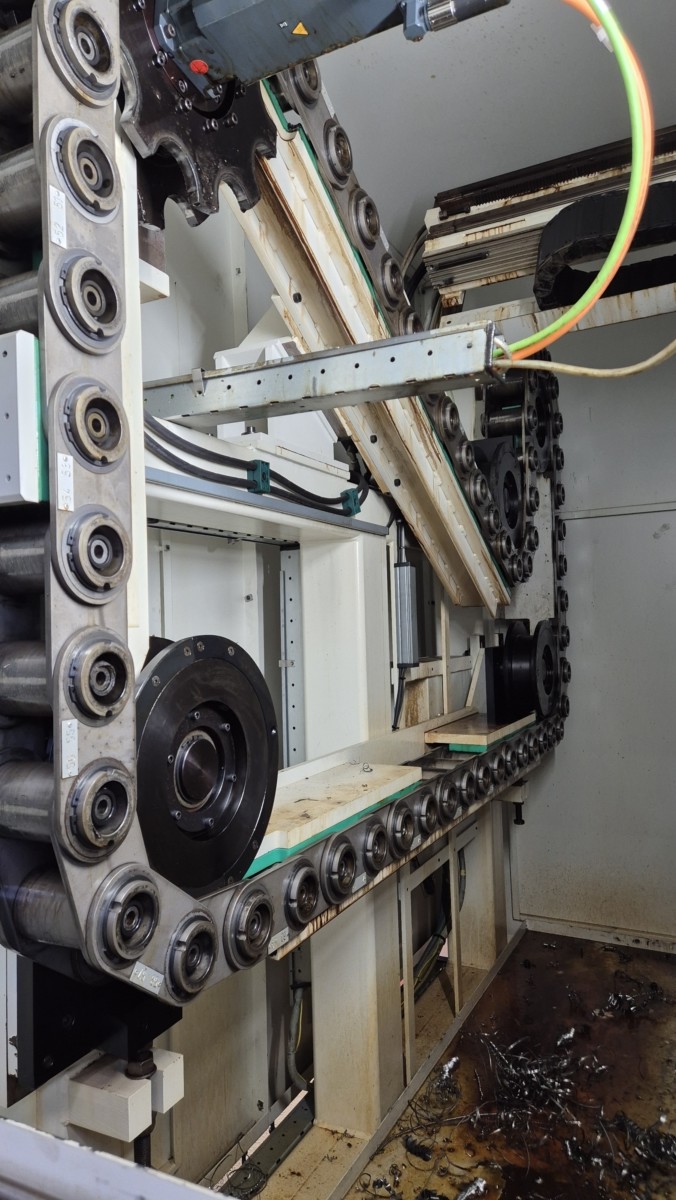

* 60-station tool changer
* NC-controlled tailstock, quill diameter 150 mm, max. quill stroke 180 mm
* Hydrostatic longitudinal guide in the Z-axis
* Coolant system with paper belt filter
* Chip conveyor

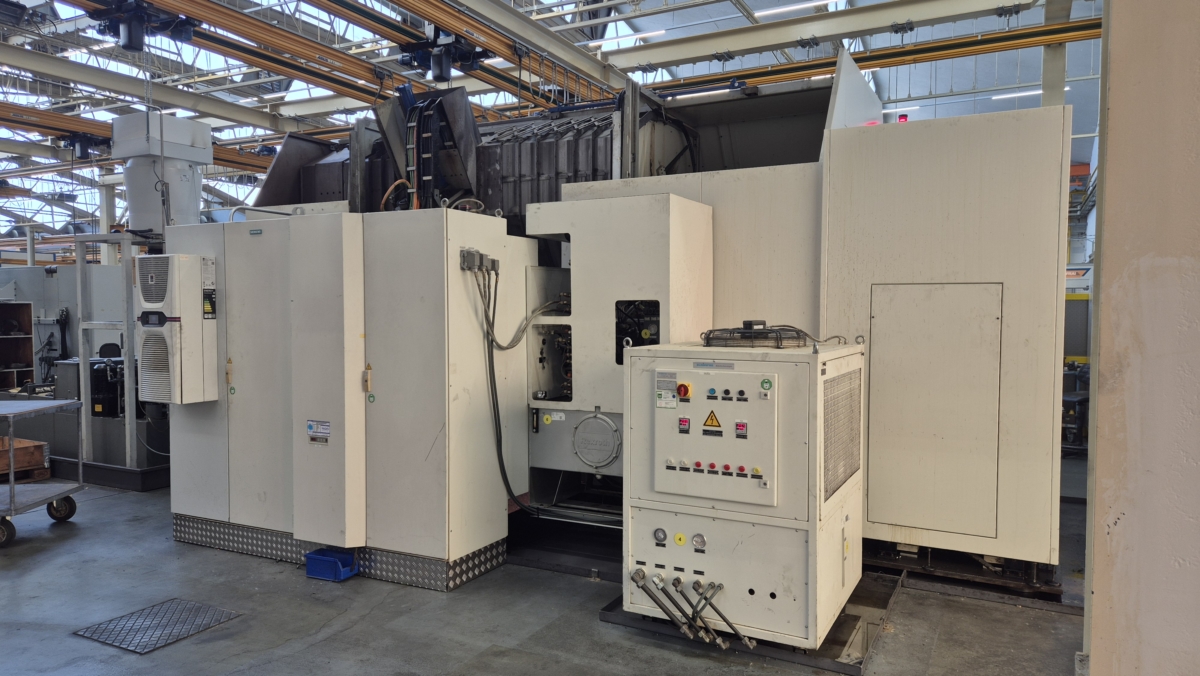

* Oil-cooler, make SCHIMPKE
* Extraction system
* Power chuck, make FORKARDT, diameter 500 mm




Changes and errors in the technical details and information reserved.
