DATASHEET

MACHINE DETAILS

Stock No.
1022-2405
Machinetype
Turning Automatic Lathe - swiss lathe
Make
CITIZEN
Type
L32 VII
Year of construction
2003/2005
Control
CNC
Location
Monheim (Germany)
Country of origin
Japan
Delivery time
Immediately
Quotation
Ex warehouse, loaded on truck
Price

TECHNICAL DETAILS



working diameter
max. 32 mm
spindle passage
36 mm
turning length
320 mm
Control

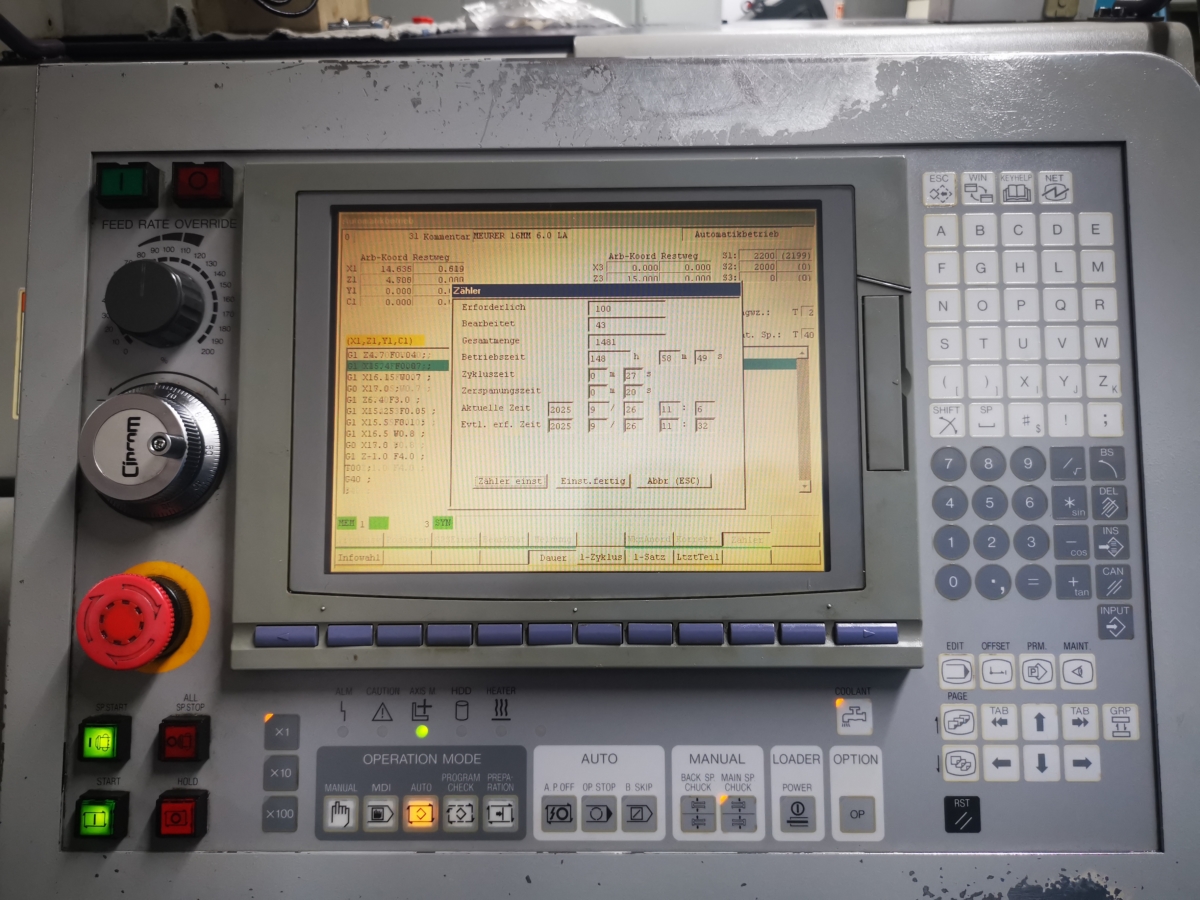

MITSUBISHI MELDAS 635LC
travel max.
(X1) 108 mm
travel max.
(Y1) 275 mm
travel max.
(Z1) 325 mm
travel max.
(X3) 238 mm
travel max.
(Z3) 410 mm
main spindle speeds:
200 - 8000 U/min
c-axis
0,001° deg.
Subspindle spindle speeds
200 - 7000 U/min
c-axis
0,001° deg.
rapid traverse
20 m/min
main drive
3,7 / 5,5 kW
Subspindle motor
1,5 / 2,2 kW
dimensions of machine
2,77 x 1,24 x 1,79 m
total power requirement
kW
weight of the machine ca.
2850 kg
dimensions of the machine ca.
m



DESCRIPTION

CNC Swiss-Type Lathe
First put into operation December 2005
The machine was used for a single shift and is in good condition with no maintenance backlog.

Equipment:

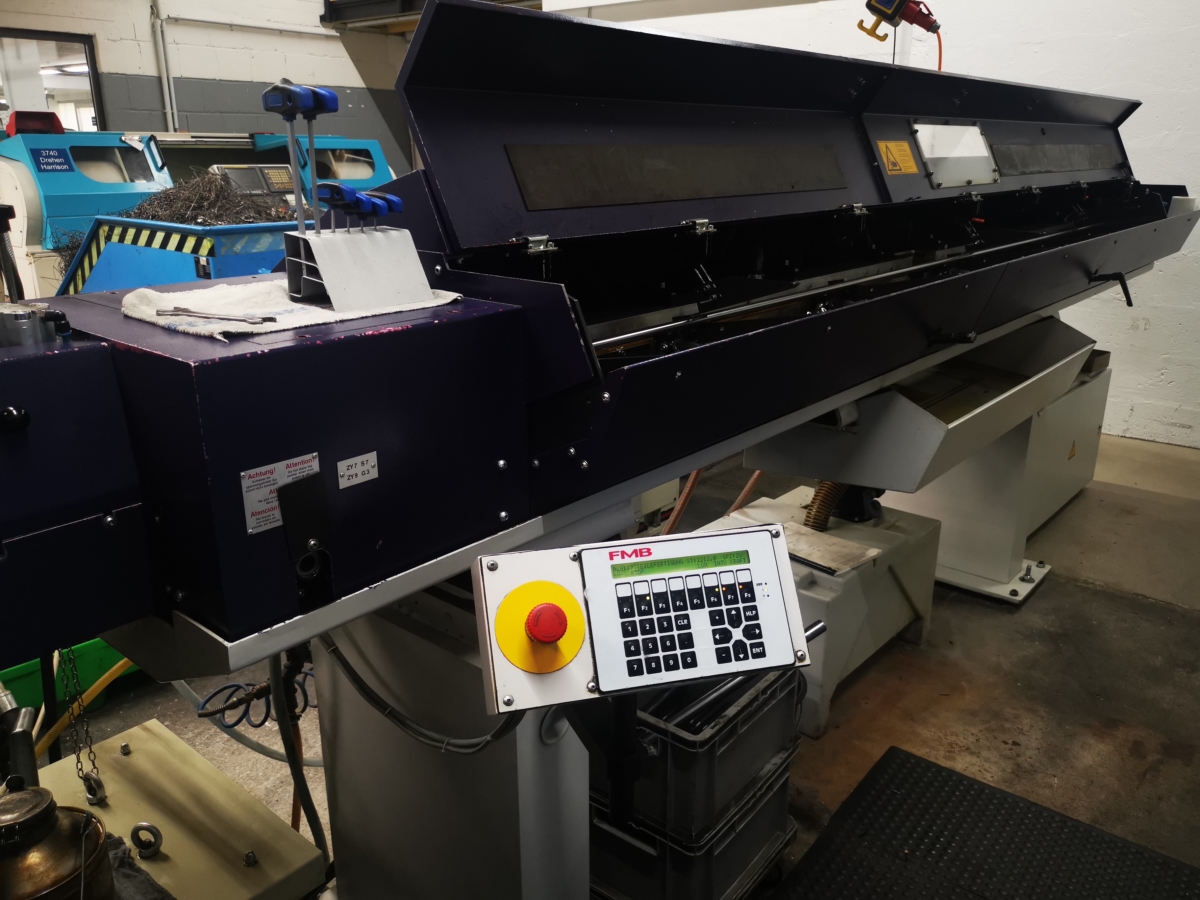

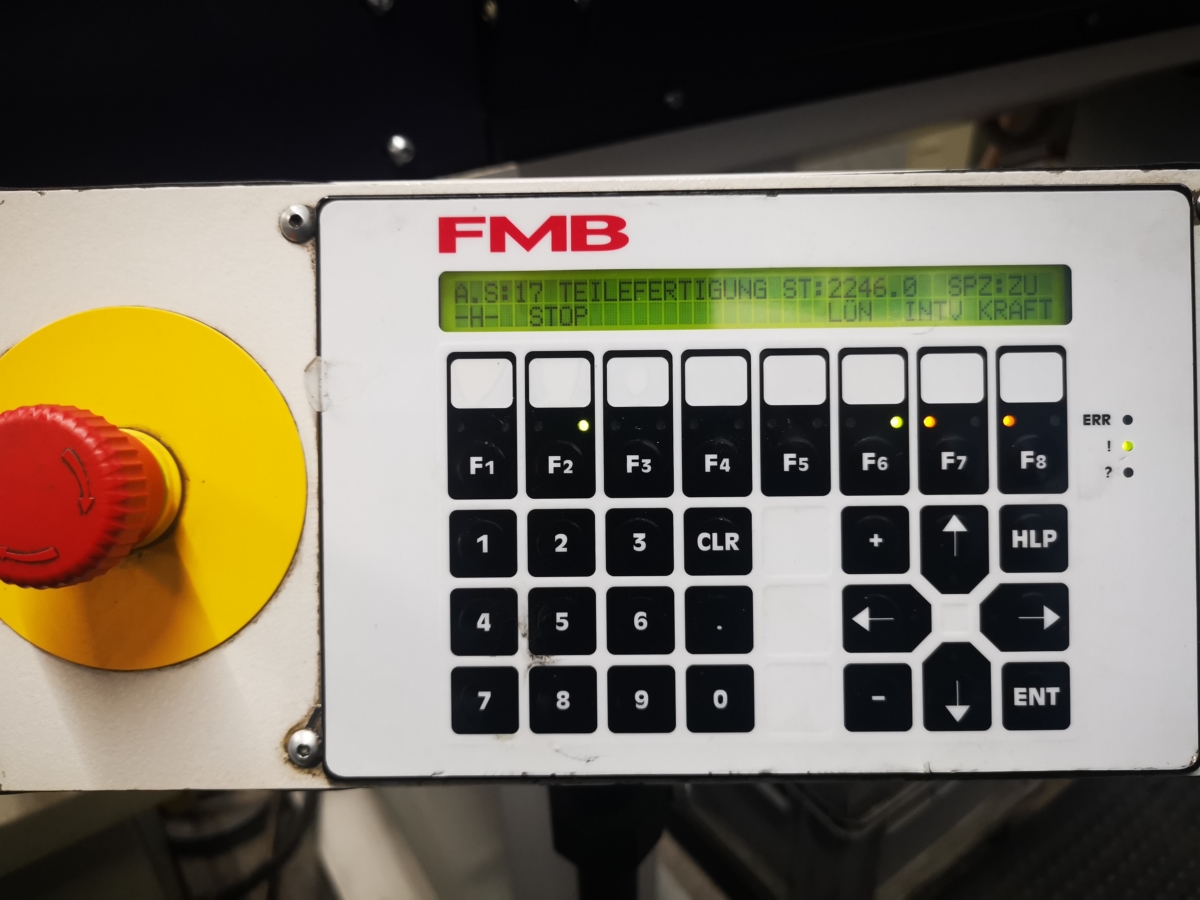

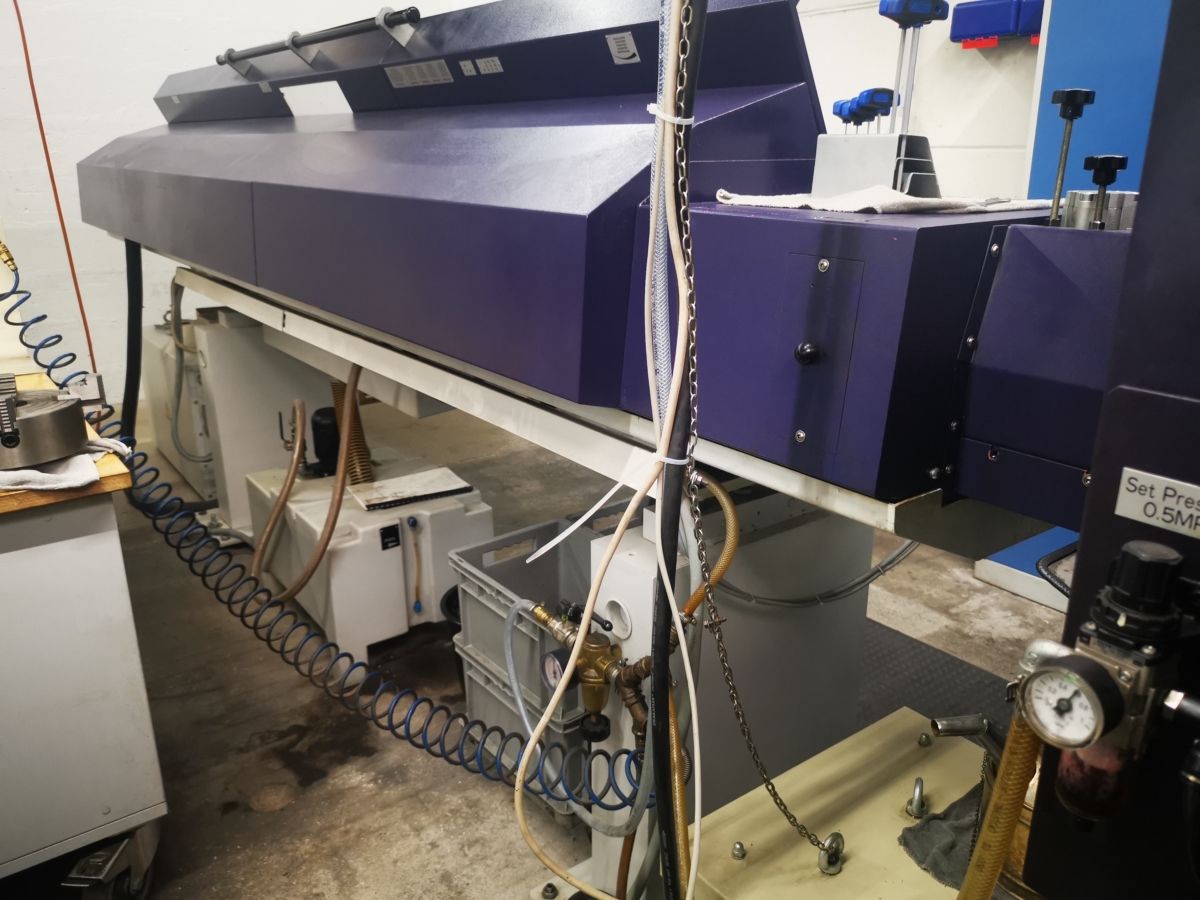

FMB Turbo 5-42/3200C bar loader, built 2004

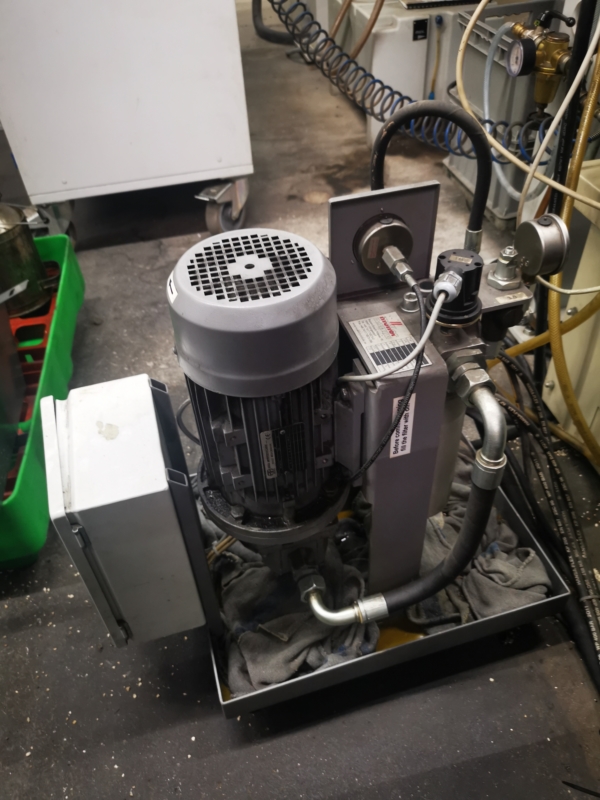

High-pressure pump
Many collet chucks for main spindle

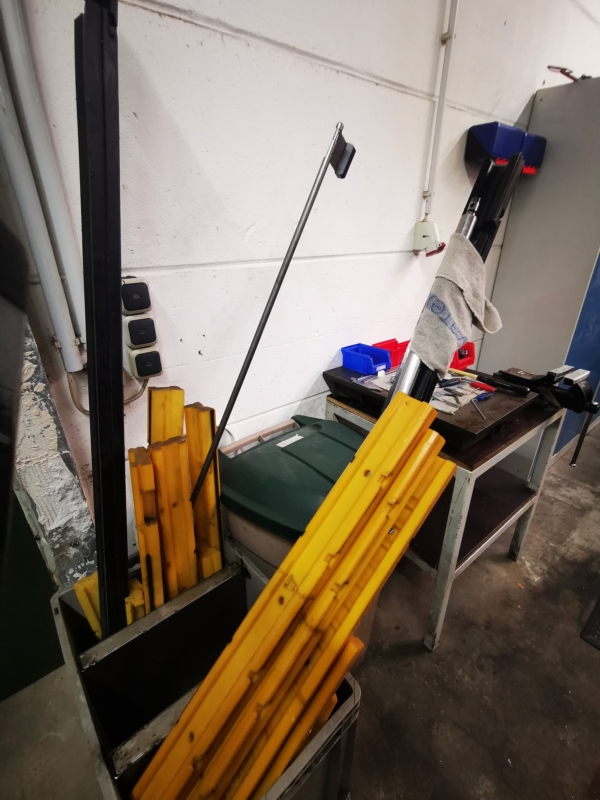

Various collets
Drive unit for synchronously driven guide bush
Synchronously driven guide bush
Drive unit for transversely driven spindle on linear support

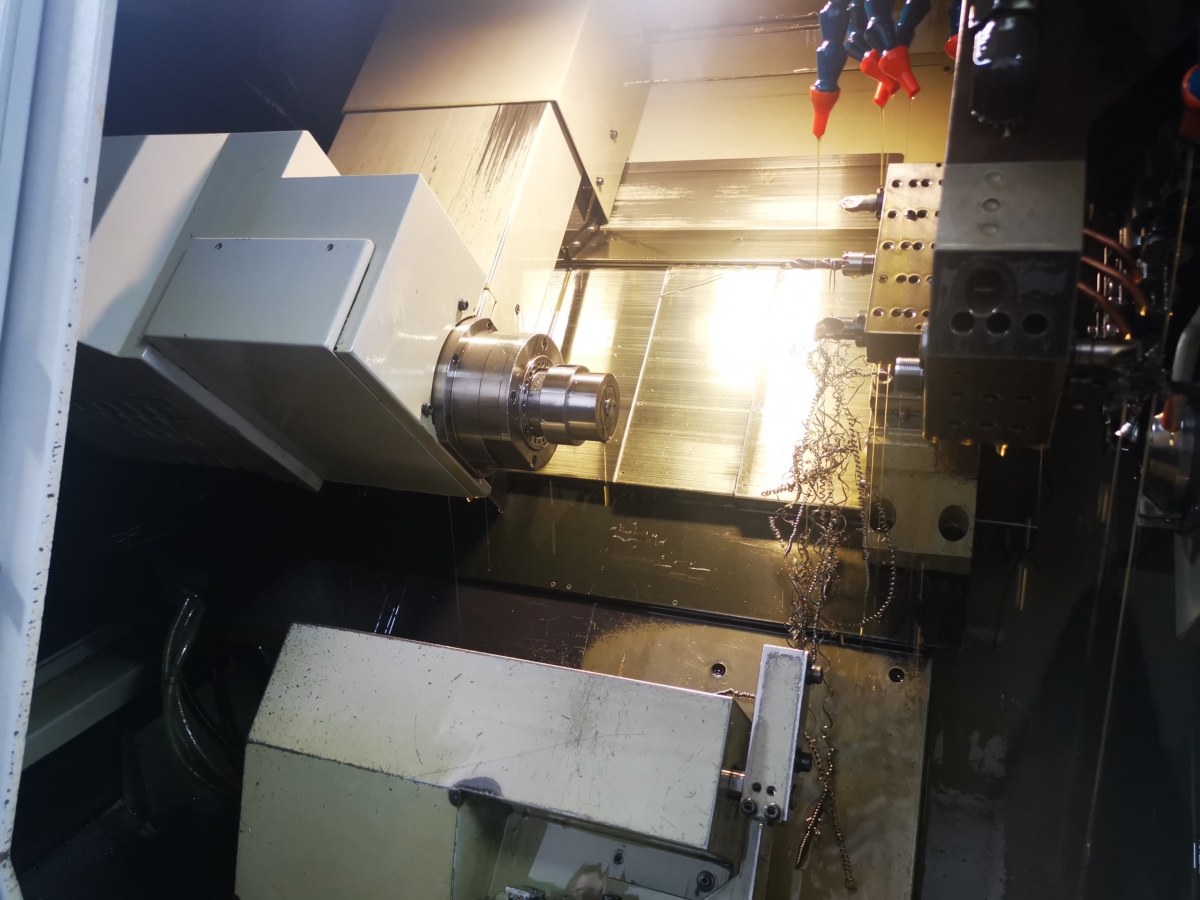

Pick-up spindle
Collet chuck for pick-up spindle
Blow-out device for pick-up spindle

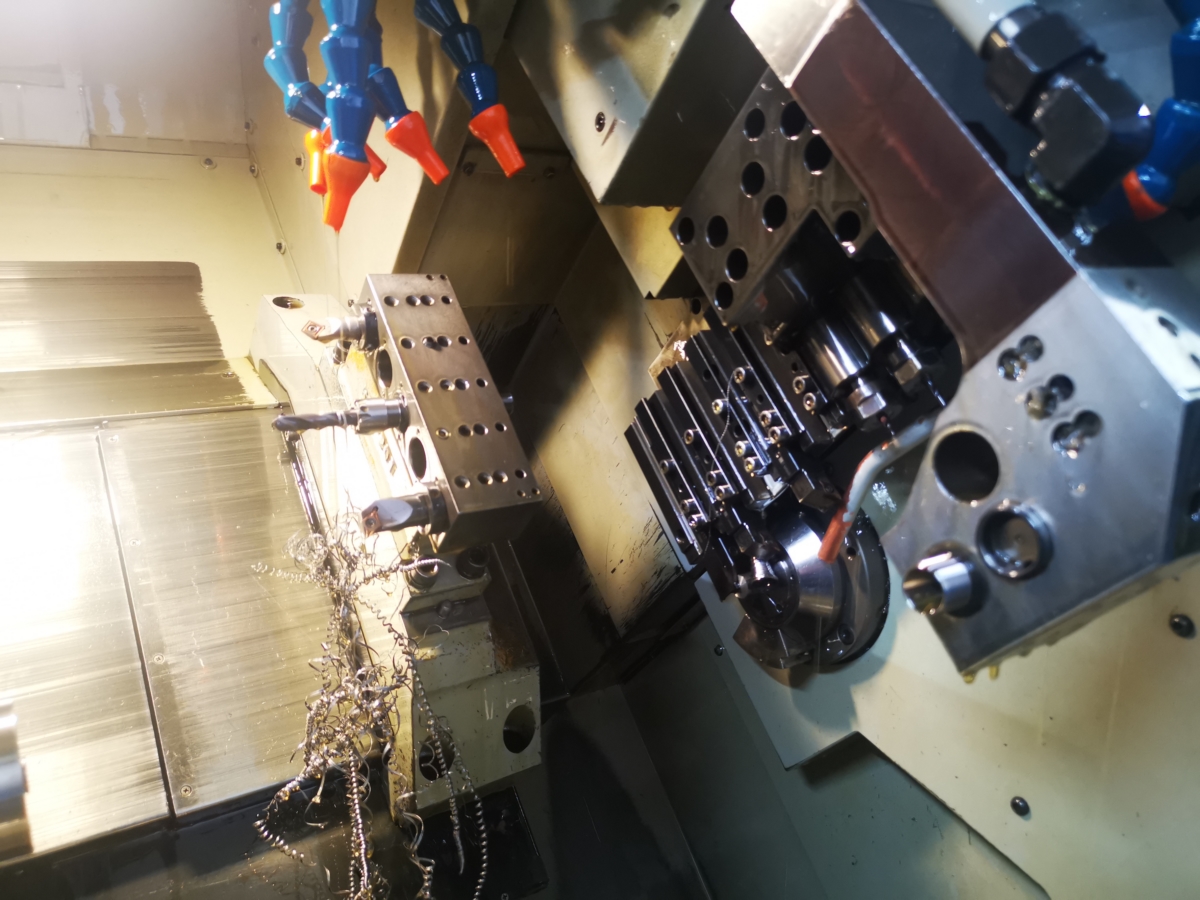

Five fixed tool holders on the rear
Workpiece removal device

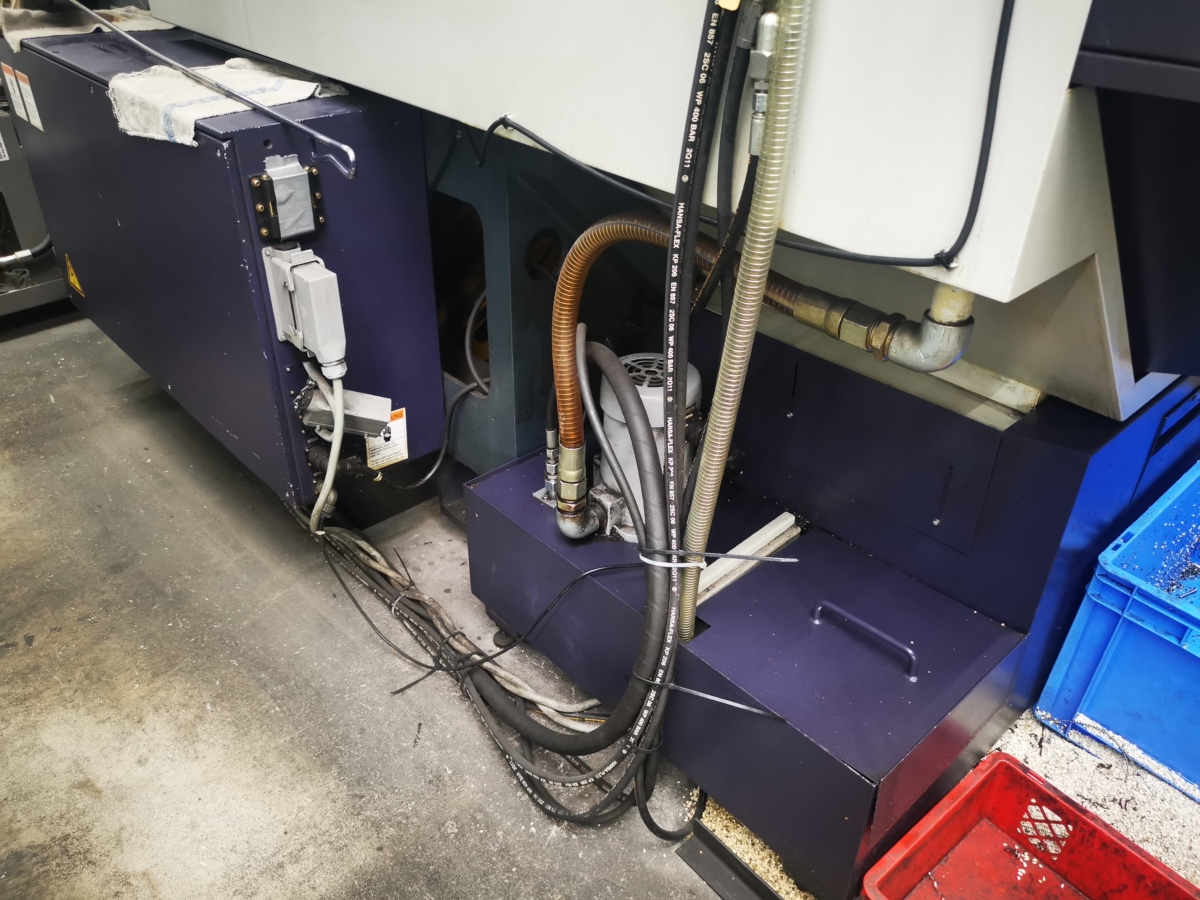

Coolant tank
Central lubrication system
Door lock
Ejection device for workpieces with through holes
Machine documentation

The machine will be sold without tools and extraction system.




Changes and errors in the technical details and information reserved.
