DATASHEET

MACHINE DETAILS

Stock No.
1022-2252
Machinetype
Surface Grinding Machine - Horizontal
Make
ABA / ZIERSCH & BALTRUSCH
Type
ECOLINE 1206 A
Year of construction
2008
Control
CNC
Location
Belgium
Country of origin
Germany
Delivery time
short-dated
Quotation
Ex warehouse, loaded on truck
Price

TECHNICAL DETAILS



grinding length
1250 mm
grinding width
600 mm
workpiece height
mm
Control
SIEMENS LC 200 / TP277
total power requirement
kW
weight of the machine ca.
7,7 t
dimensions of the machine ca.
m


DESCRIPTION

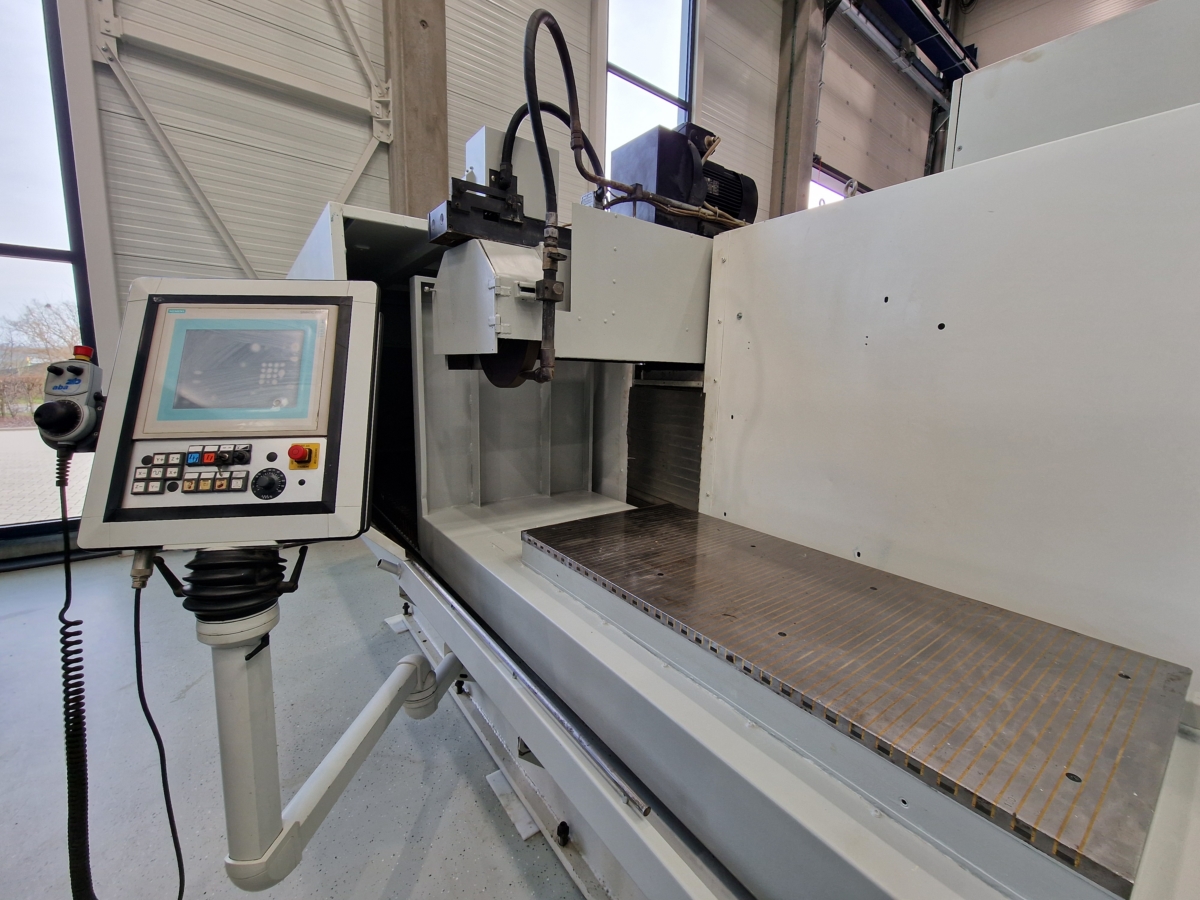

CNC precision, surface and profile grinding machine

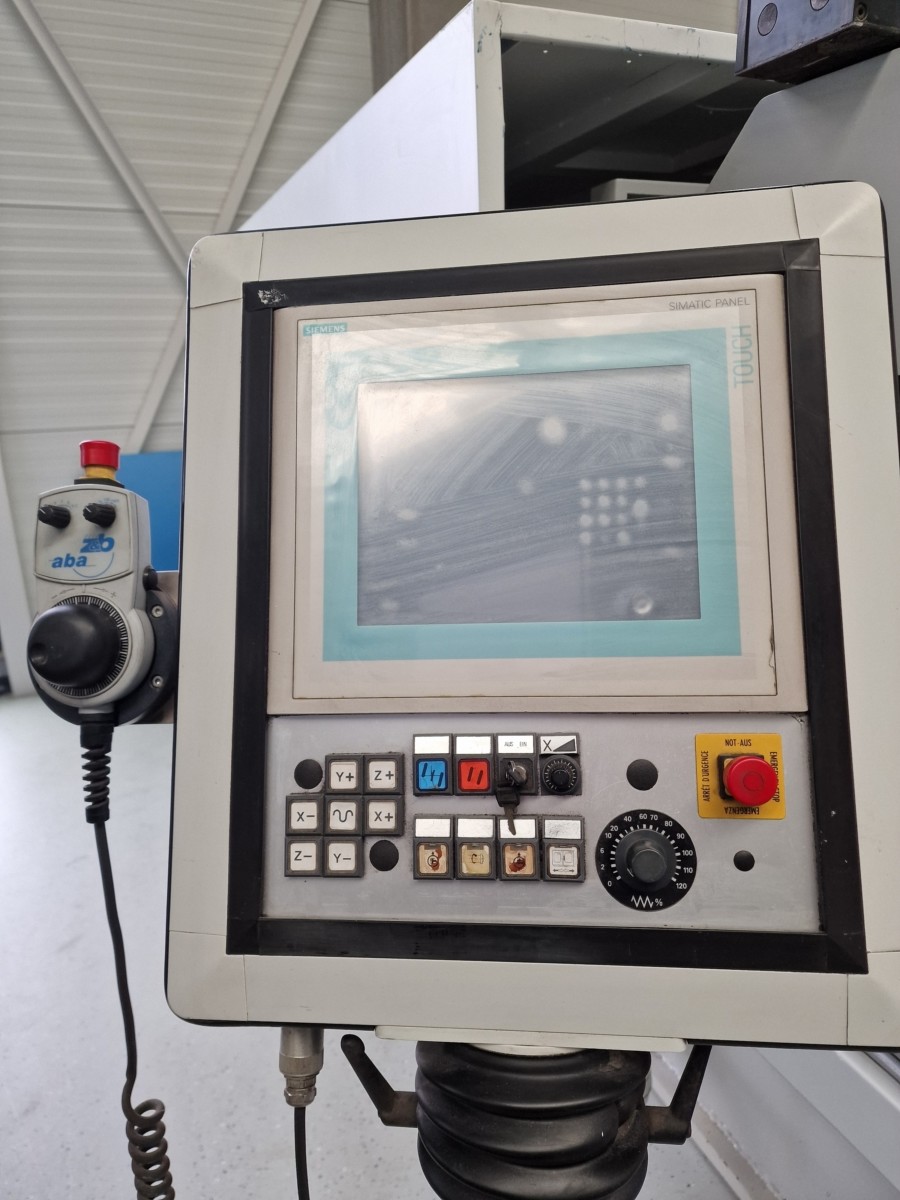

CNC control SIEMENS LC 200 / TP277

Table load maximum to the magnetic chuck 1200 kg
Drives:
X-axis drive hydraulic
Y and Z-axis drive with servo drive and ball screw
measuring system:
X-axis rotary with rotary encoder
Y and Z axis linear scale
traverse paths
X axis 1400mm
Y axis 600mm
Z axis 600mm
Grinding length 1250 mm
Grinding width 600
Distance between table and spindle center 700 mm

Grinding wheel diameter 400 mm
Grinding wheel width 100 mm
Grinding wheel bore 127 mm




Changes and errors in the technical details and information reserved.
