DATASHEET

MACHINE DETAILS

Stock No.
1022-E06337
Machinetype
Flame-Cutting Machine
Make
SATO
Type
Satronik D4500
Year of construction
2011/2008
Control
CNC
Location
Deutschland
Country of origin
Germany
Delivery time
Immediately
Quotation
Ex site, loaded on truck
Price

TECHNICAL DETAILS



gangway length
14000 mm
working width
3700 mm
burner heads
6
Control
CNC 802
total power requirement
kW
weight of the machine ca.
t
dimensions of the machine ca.
m

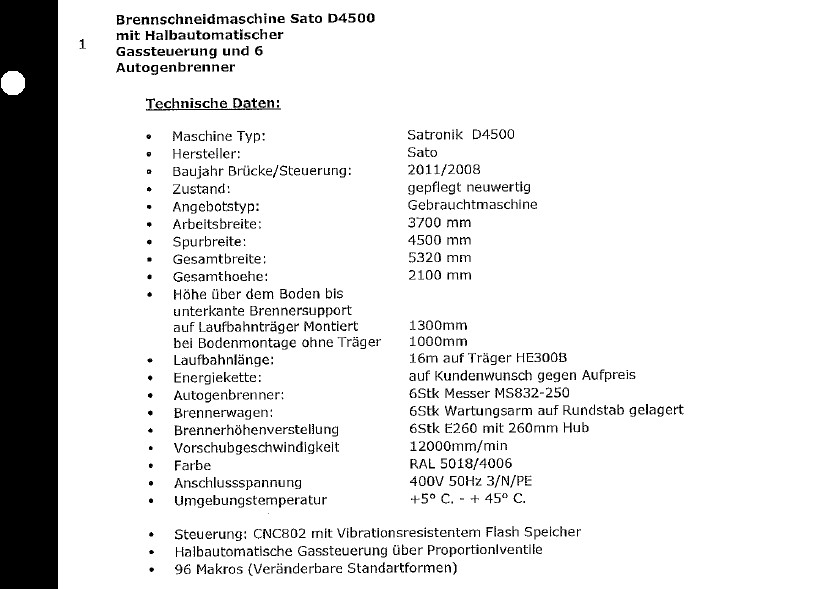

DESCRIPTION

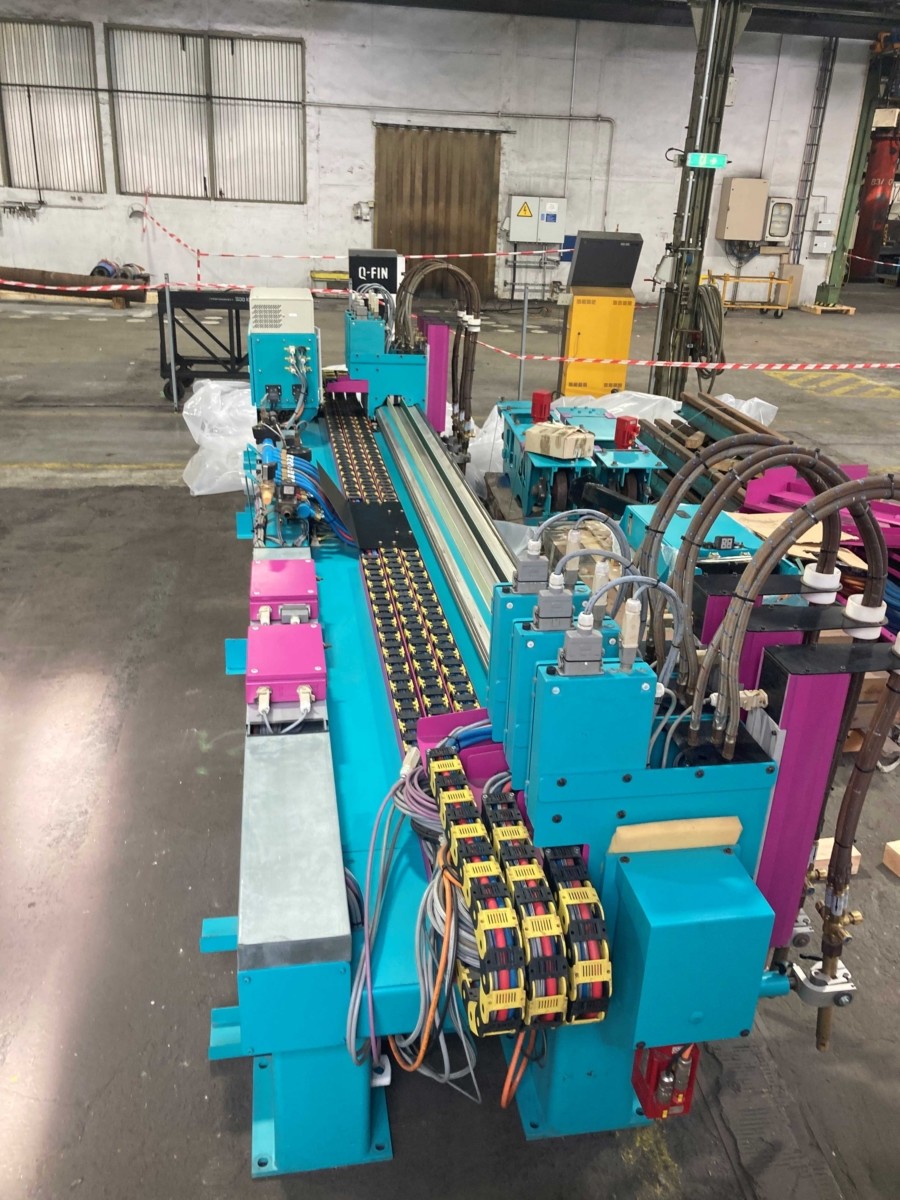

Used oxyfuel cutting machine with semi-automatic gas control and

6 oxyfuel torches

Working width 3700 mm
Track width 4500 mm
Overall width 5320 mm
Overall height 2100 mm
Height above floor to bottom edge of torch support on track beam
mounted 1300 mm, floor-mounted without beam 1000 mm
Track length 16000 mm on HE 300 B beam
Oxyfuel burner: 6 pieces with MS 832-250 blades
Burner carriages: 6 pieces, maintenance arm mounted on round bar
Burner height adjustment: 6 pieces E 260 with 260 mm stroke
Maximum cutting thickness with 4 torches: 300 mm
Maximum cutting thickness with 6 torches: 200 mm
Feed speed: 12000 mm/min

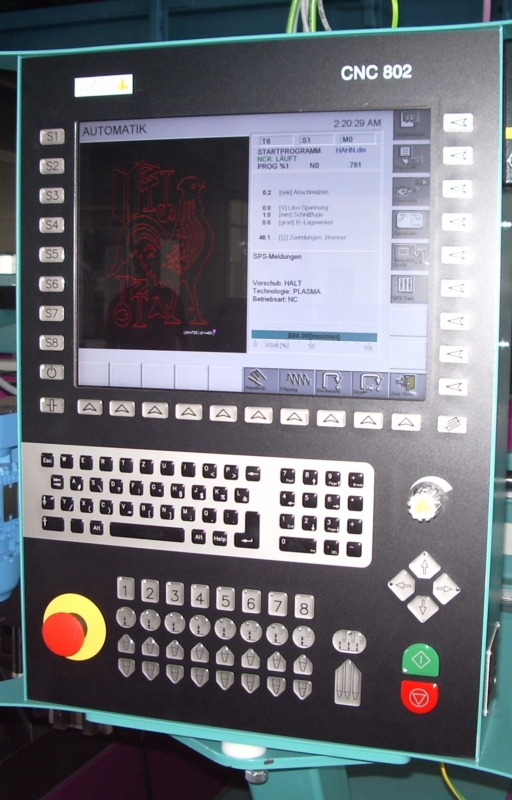

CNC 802 control with vibration-resistant flash memory
Semi-automatic gas control via proportional valves
96 macros (modifiable standard shapes)
Easy to learn
USB interface
CNC Cut software for importing and converting DXF files
15" screen behind shatterproof, scratch-resistant glass, operable even with gloves.

Note:
A burner table and an extractor are not included in the scope of delivery.




Changes and errors in the technical details and information reserved.
