HOJA DE DATOS

DESCRIPCIÓN DE LA MÁQUINA

Número de stock
1022-H09066
Tipo de máquina
Bed Type Milling Machine - Universal
Marca
CORREA
Modelo
Norma 35 Pi
Año de fabricación
2024
Control
CNC
Ubicación
Germany
País de origen
Spain
Tiempo de entrega
To be discussed
Condición de entrega
Ex Works
Precio

DETALLES TÉCNICOS



x-travel
3500 mm
y-travel
1500 mm
z-travel
1500 mm
total power requirement
kW
weight of the machine ca.
t
dimensions of the machine ca.
m


DESCRIPCIÓN

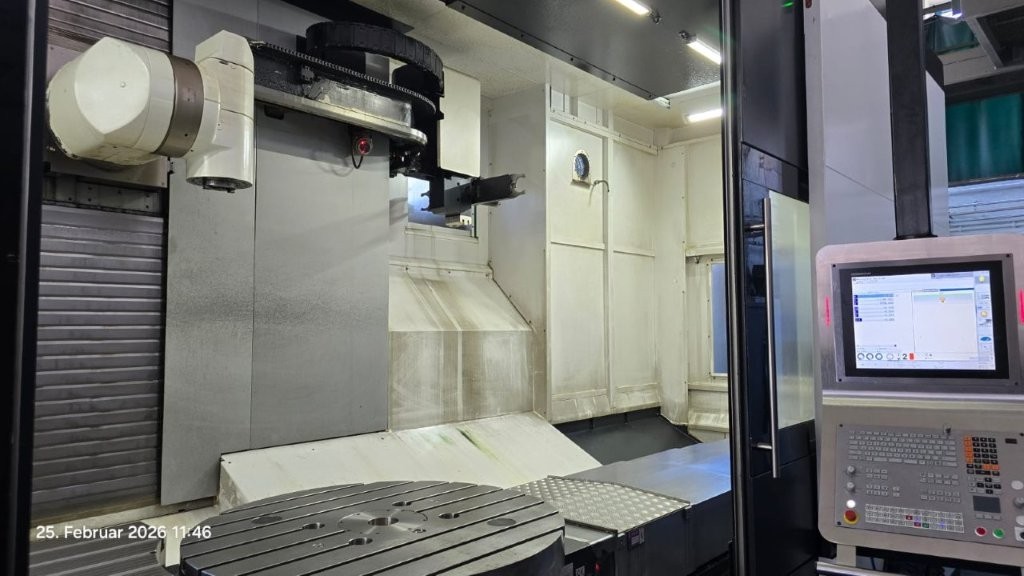

Heidenhain TNC 640 HSCi CNC Control
Travels:
X-axis 3500 mm
Y-axis 1500 mm
Z-axis 1500 mm
Table size 1300 x 1250 mm
Total length of the table 2500 mm

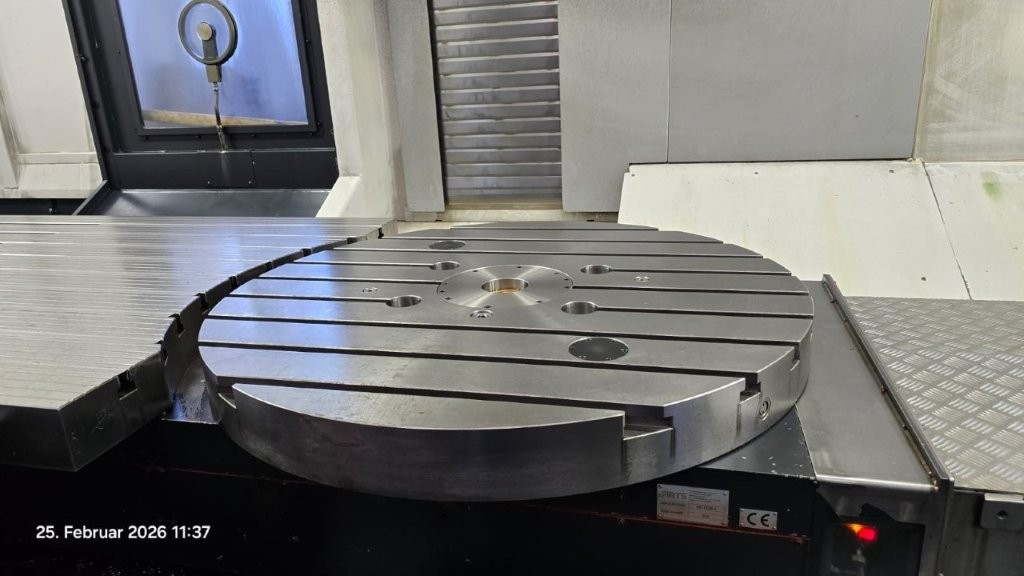

Integrated rotary table 1200 mm
Spindle taper SK 50 BIG PLUS
Spindle speed 6000 rpm

Accessories:

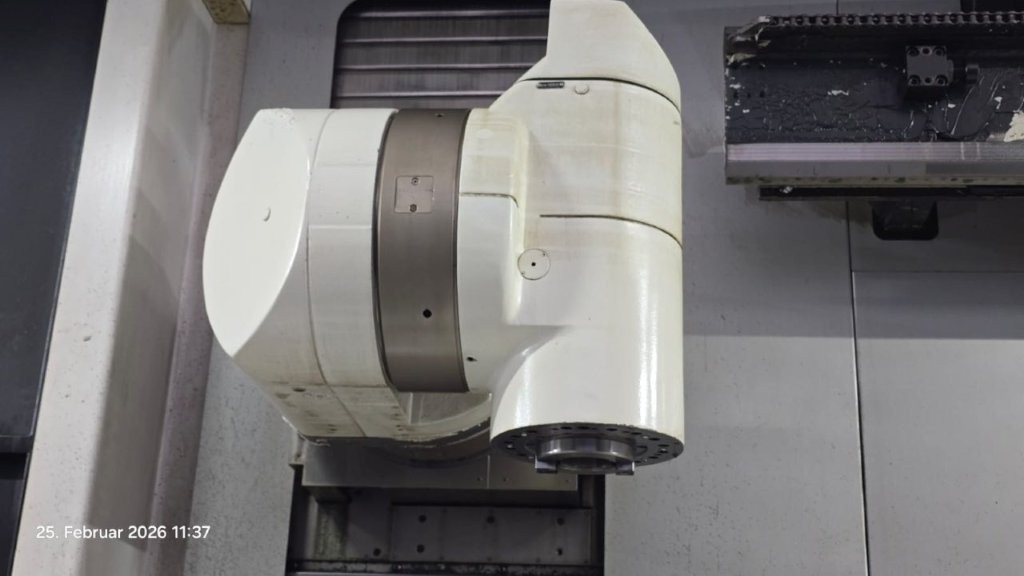

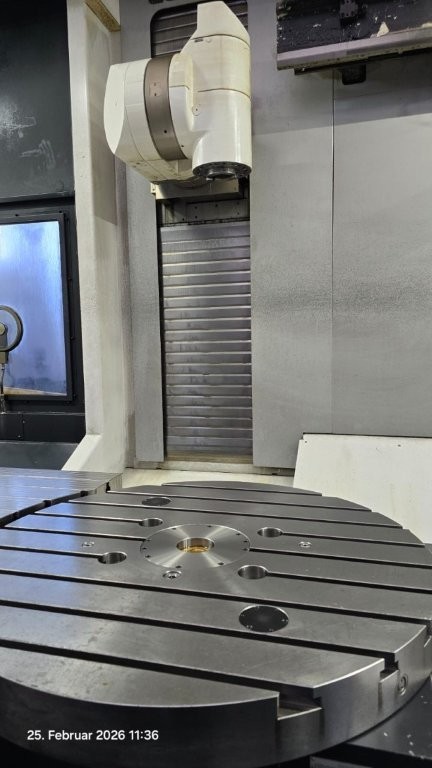

Automatic orthogonal milling head 0.02 degrees x 0.02 degrees

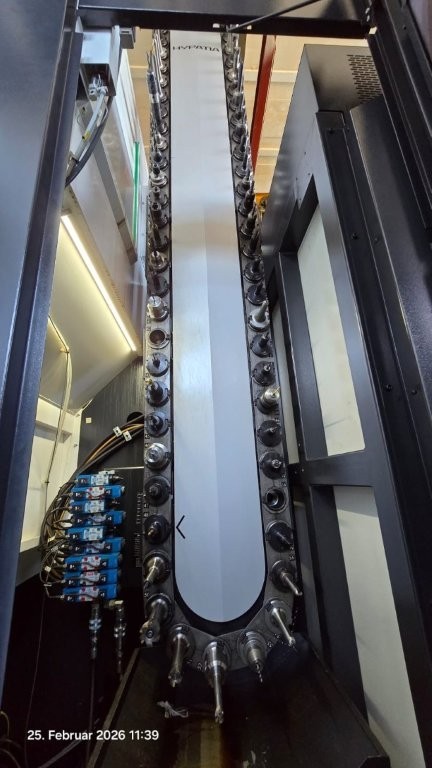

60-tool magazine
External cooling 17 bar
Through-spindle cooling 70 bar
Tank capacity 1000 liters

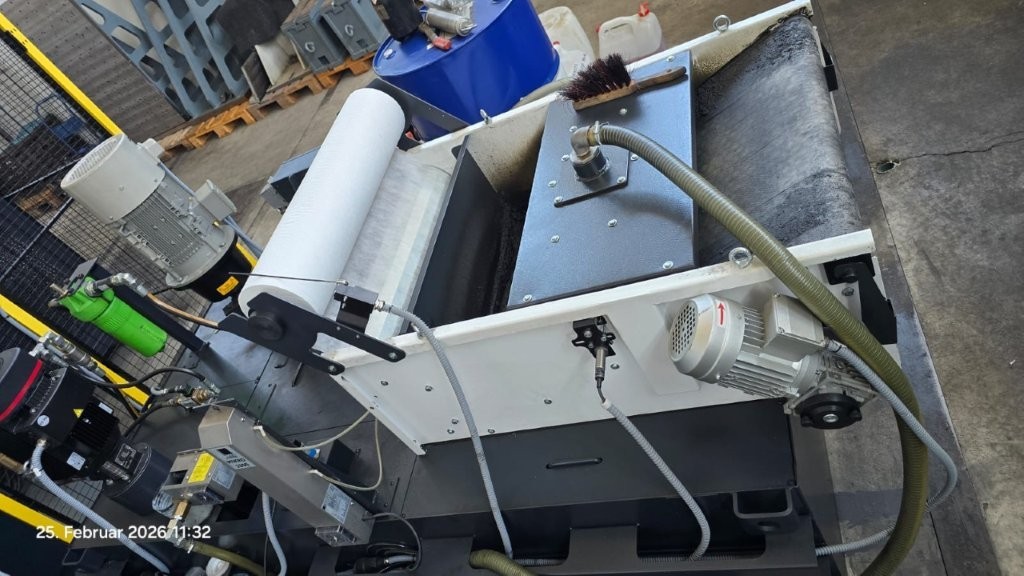

Oil separator and micro-ventilation

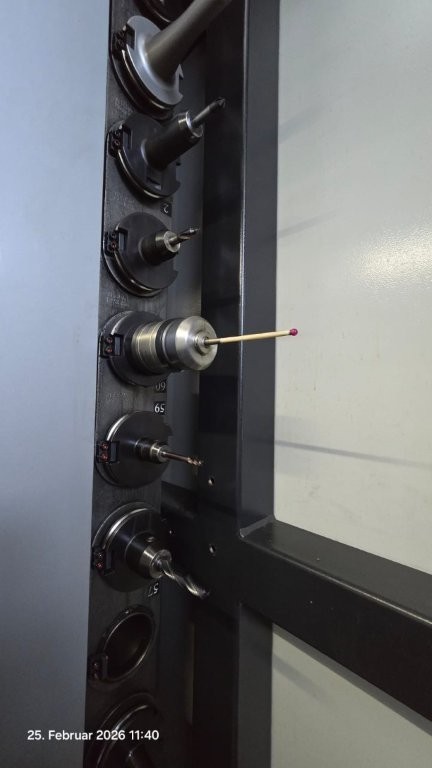

Hexagon M&H workpiece measuring system
Full enclosure with roof




Cambios y errores en los detalles técnicos y la información reservada.
