HOJA DE DATOS

DESCRIPCIÓN DE LA MÁQUINA

Número de stock
1022-E06351
Tipo de máquina

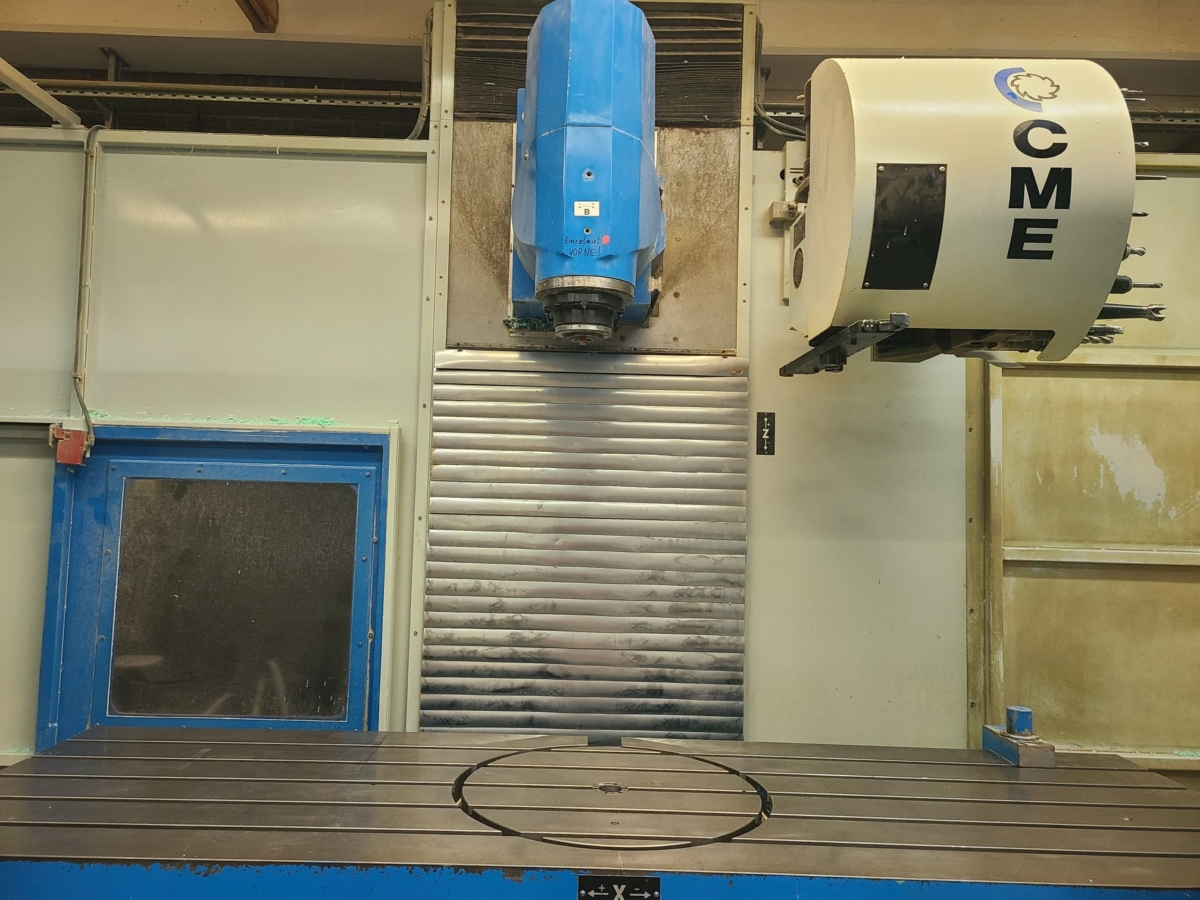

Bed Type Milling Machine - Universal
Marca
CME
Modelo
FS-3
Año de fabricación
2005
Control
CNC
Ubicación
NRW / Germany
País de origen
Spain
Tiempo de entrega
Immediately
Condición de entrega
ex foundation
Precio

DETALLES TÉCNICOS



x-travel
2500 mm
y-travel
1000 mm
z-travel
1000 mm
Control
Heidenhain iTNC 530M
total power requirement
kW
weight of the machine ca.
22 t
dimensions of the machine ca.
7000 x 5323 x 3500 mm

Accesorios

measuring probe


DESCRIPCIÓN

The machine was used almost exclusively to process plastics.

[Technical Data]

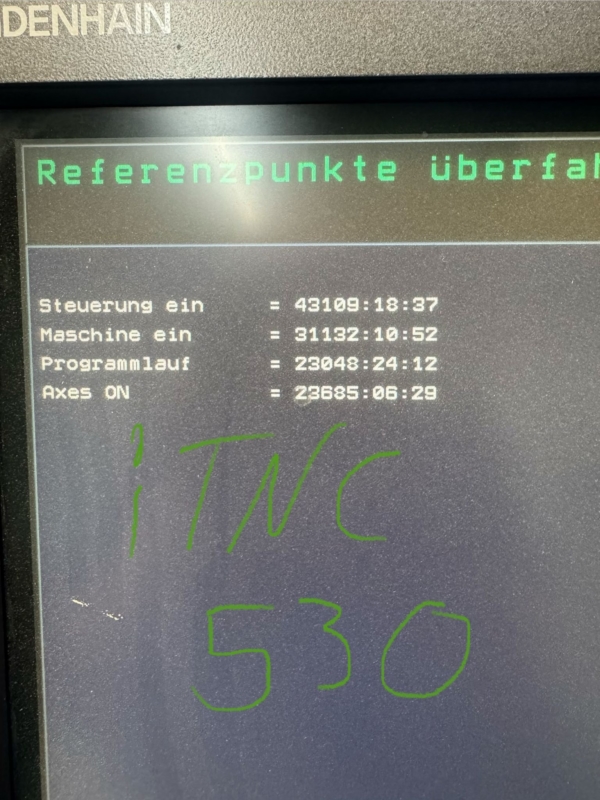

Heidenhain i-TNC 530 M CNC control
Travels:
X-axis 2500 mm
Y-axis 1000 mm
Z-axis 1000 mm

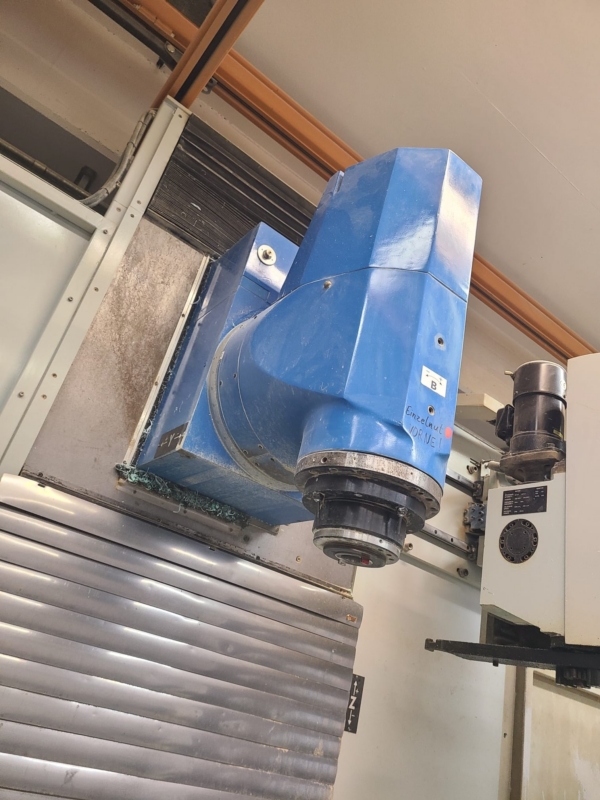

Milling Head:
Infinitely variable spindle speed with 12,000 rpm
with FA 210 electric spindle
Tool holder ISO 40, DIN 69871
Table length 2700 mm
Rotary Table Diameter 650 mm
Machine weight 22 t

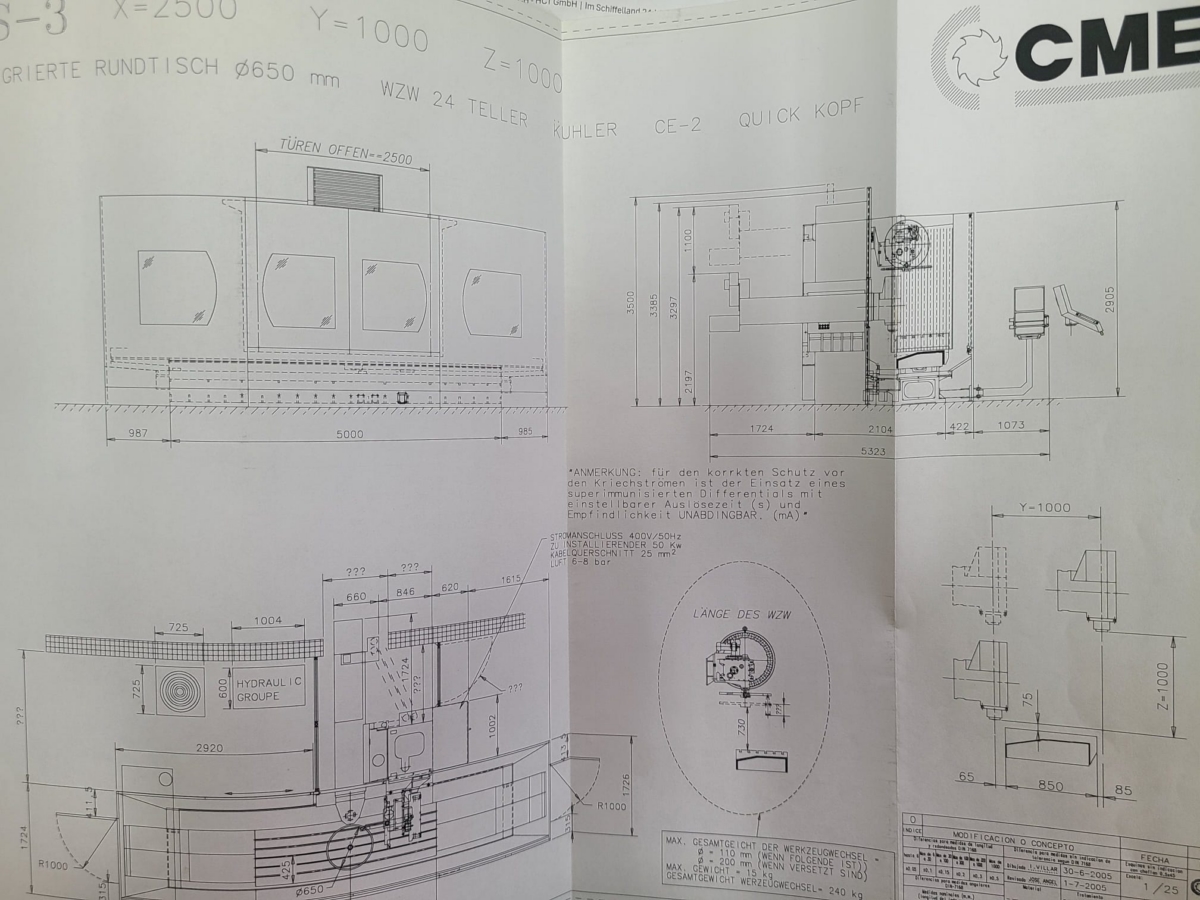

Machine dimensions:
Length 7000 x 5323 x 3500 mm

[Accessories]
Integrated parts jig
24-position tool changer, max. diameter 110/200 mm, weight 15 kg

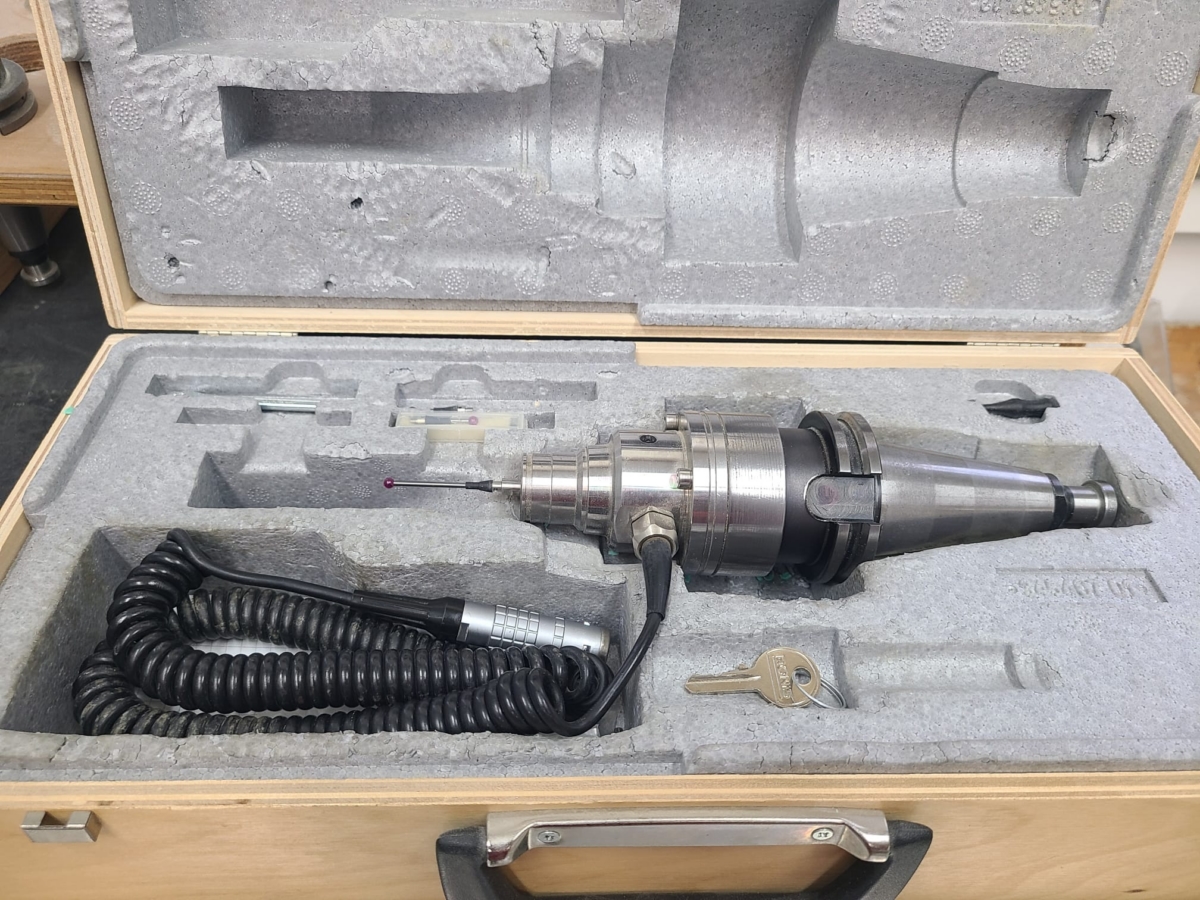

TT 130 measuring probe
TS 220 probe
Heidenhain HR 410 electronic handwheel

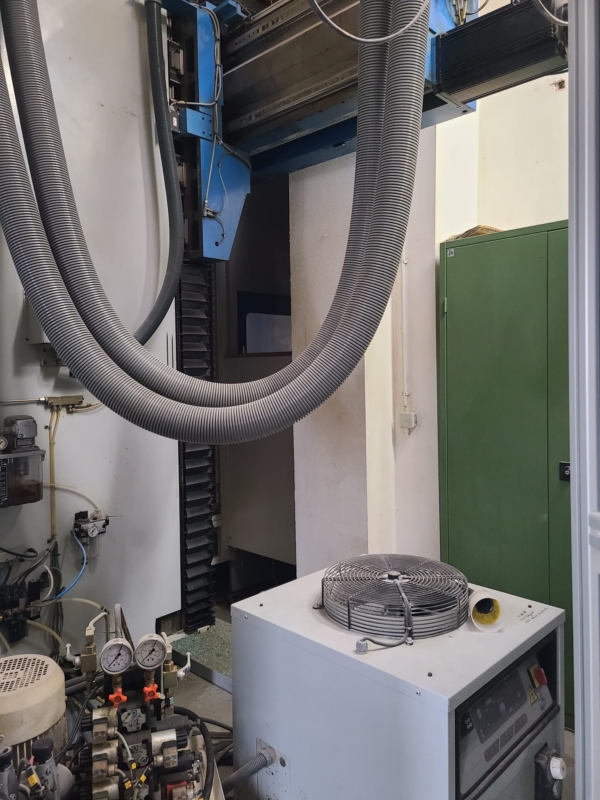

Cooler
Automatic spindle positioning
225 L coolant reservoir with 3 bar motor pump
Ethernet connection




Cambios y errores en los detalles técnicos y la información reservada.
