HOJA DE DATOS

DESCRIPCIÓN DE LA MÁQUINA

Número de stock
1022-E06339
Tipo de máquina
CNC Lathe
Marca
GURUPTZE
Modelo
A-1000 PLUS × 5000
Año de fabricación
1999/2020
Control
CNC
Ubicación
Spain
País de origen
Spain
Tiempo de entrega
Short-dated
Condición de entrega
Ex site, without dismantling and loading
Precio

DETALLES TÉCNICOS



turning diameter
1220 mm
turning length
5000 mm
control
FAGOR 8055 TC
swing diameter over bed slide
880 mm
spindle bore
160 mm
spindle turning speed range
0 - 1000 U/min
transmission ratio
4
tailstock quill diameter
180 mm
tailstock quill stroke
260 mm
main drive motor
40 kW
total power requirement
kW
weight of the machine ca.
t
dimensions of the machine ca.
m


DESCRIPCIÓN

In 2020 overhauled:

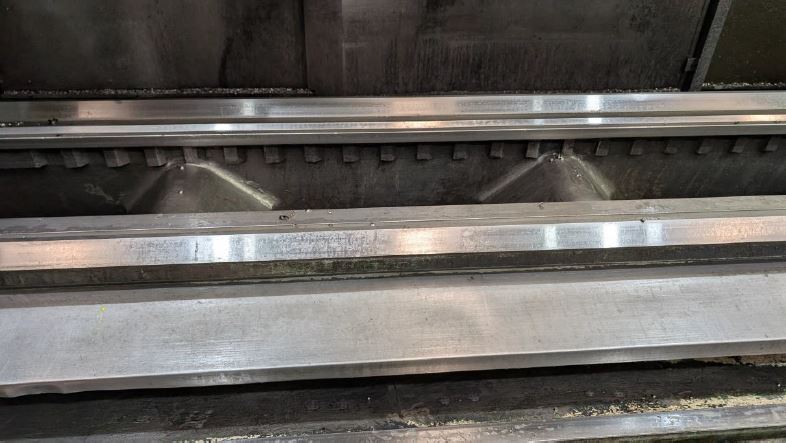

- Grinding of carriage guides on the X and Z axes
- Preloading of X and Z axis ball screw nuts
- New Turcite placed on the X and Z axis carriages
- General review and disassembly of the engine and head regulator
- General review and disassembly of the motors and regulators of the X and Z axes
- Disassembly and inspection of the SAUTER tool holder
- Checking and cleaning the electrical cabinet
- Complete review of the hydraulic circuit

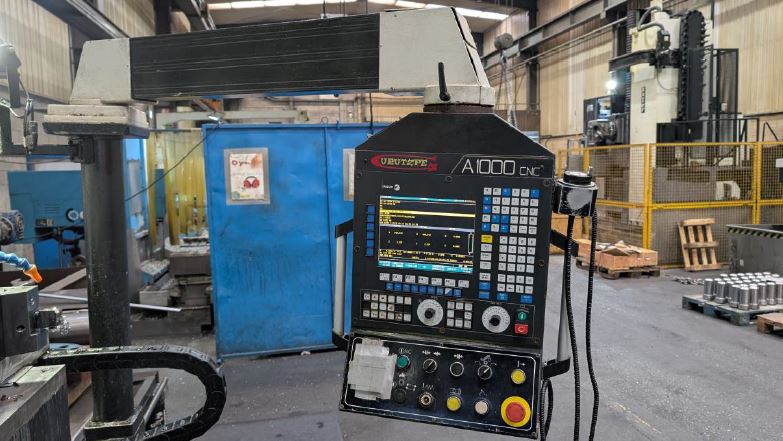

* CNC-control FAGOR 8055 TC
* Tool turret SAUTER

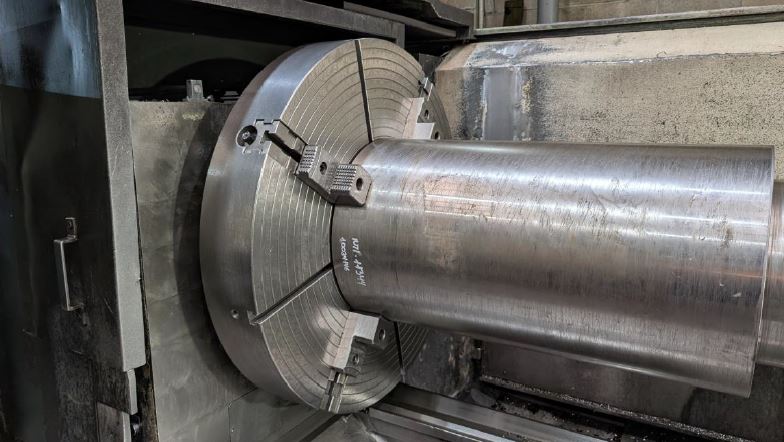

* 4-jaw chuck Ø 1000 mm
* 3-jaw chuck Ø 500 mm
* Steady-rest Ø 500 mm
* Movable steady-rest Ø 250 mm
* Chip conveyor
* Special bar for machining very long interiors




Cambios y errores en los detalles técnicos y la información reservada.

Documentos y videos

#1022-E06339 - CNC Lathe GURUPTZE A-1000 PLUS × 5000
