HOJA DE DATOS

DESCRIPCIÓN DE LA MÁQUINA

Número de stock
1022-E06297
Tipo de máquina
CNC Turning- and Milling Center
Marca
NILES
Modelo
N40MC-6000
Año de fabricación
2019
Control
CNC
Ubicación
Germany
País de origen
Germany
Tiempo de entrega
To be discussed
Condición de entrega
ex foundation
Precio

DETALLES TÉCNICOS



turning diameter
820 mm
turning length
6000 mm
control
Siemens Si 840 D sl
total power requirement
155 kW
weight of the machine ca.
65 t
dimensions of the machine ca.
16350 x 3700 x 3850 m


DESCRIPCIÓN

Purchase price EUR 1.550.000

Time recording from Feb. 2025
Operating hours = 38601 h
Main spindle = 1958 h
Milling spindle = 1760 h

CNC control Si 840D sl

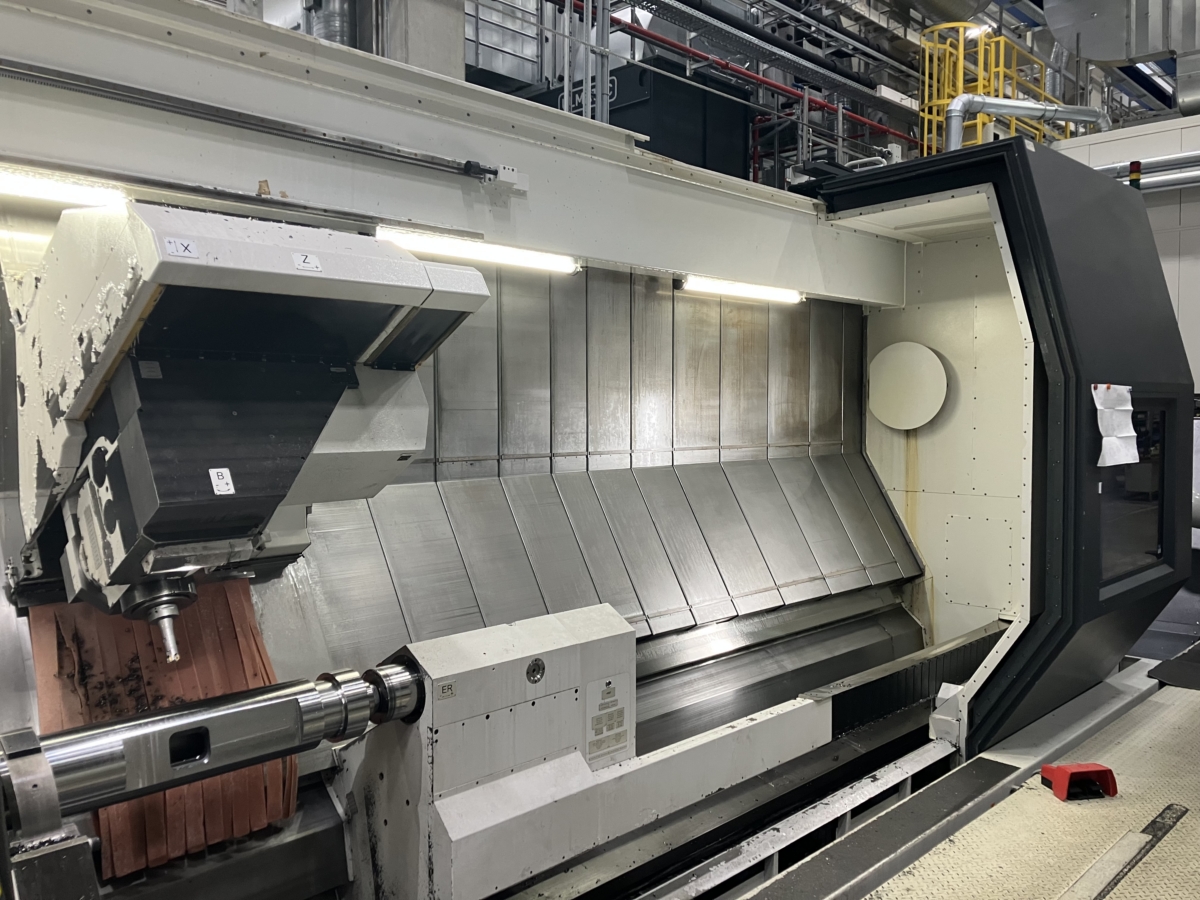

Working area 6000 mm
Working height 1390 mm
Swing diameter over bed slide/bed 820 mm
X-axis travel +850 -25 mm
Z-axis travel 6820 mm
C-axis, smallest increment +/-0.001°

Workpiece spindle
Spindle head according to DIN 55026 A15
Bathing through 160 mm
Front diameter Bearing 240mm

2-stage gearbox, infinitely variable programmable
Drive power at 100/60% duty cycle: 78/87kW
Speed ranges: 2
Speed range I: 10-501 rpm
Speed range II: 10-1750 rpm
Torque I, 60% duty cycle: 8000 Nm
Torque II, 60% duty cycle: 2308 Nm

C-axis
Holding torque with backlash-free spindle brake: 3000 Nm
Speed: 0-50 rpm
Maximum torque (100/60% duty cycle): 3700/4430 Nm

Steady rest clamping range: 70-425 mm

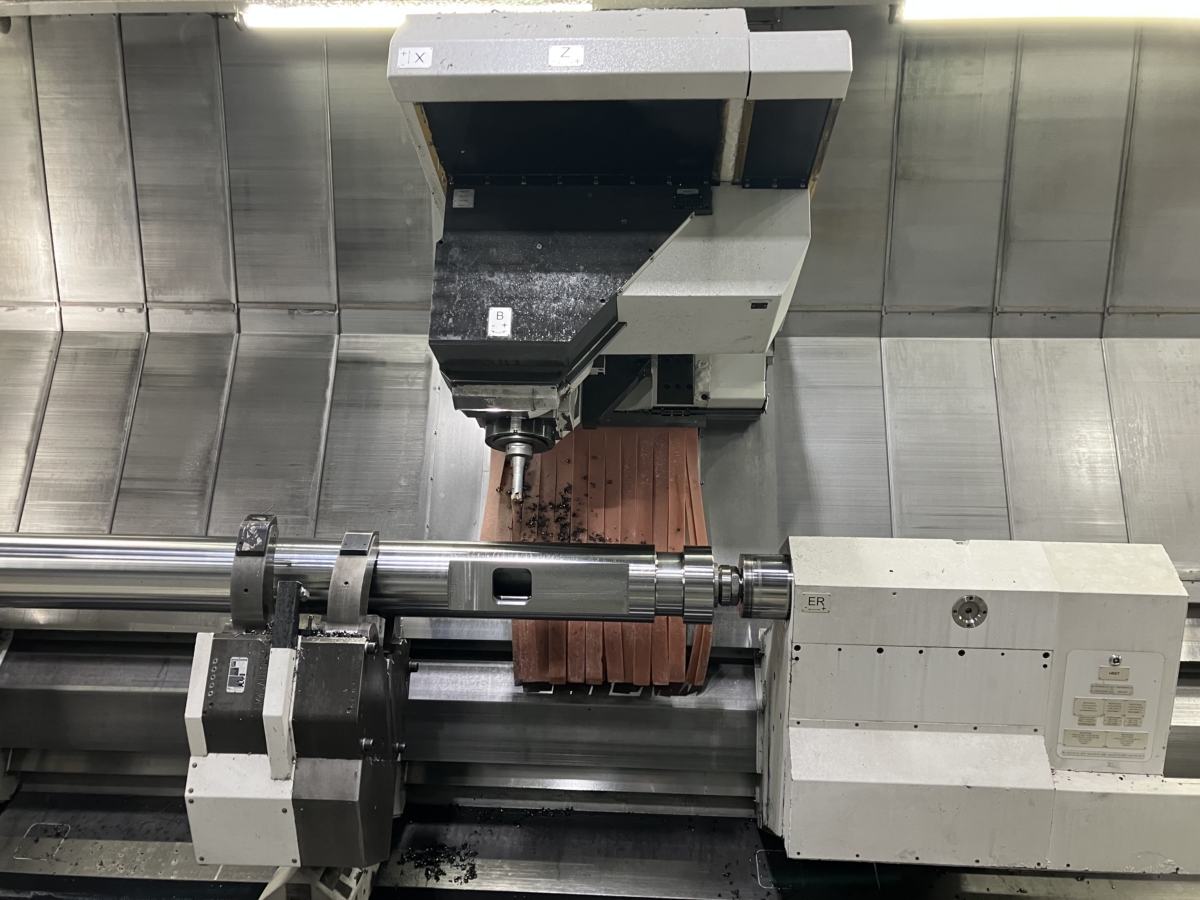

Turning, drilling, milling head
Front diameter: Bearing 110mm
Interface HSK100/C8

Tool magazine
Storage locations: 2 magazines, Baluff chip system
Max. tool diameter (each position/every 2nd position) 125/200mm
Max. tool length 600mm
Tool weight 25kg

Tailstock
Quick diameter 180mm
Stroke 170mm
Internal taper MK6
Axially force, manually adjustable 5-30 kN
Quick tip height adjustment +/-0.15mm

Other:
Collision monitoring sensor ACS 3-ARTIS

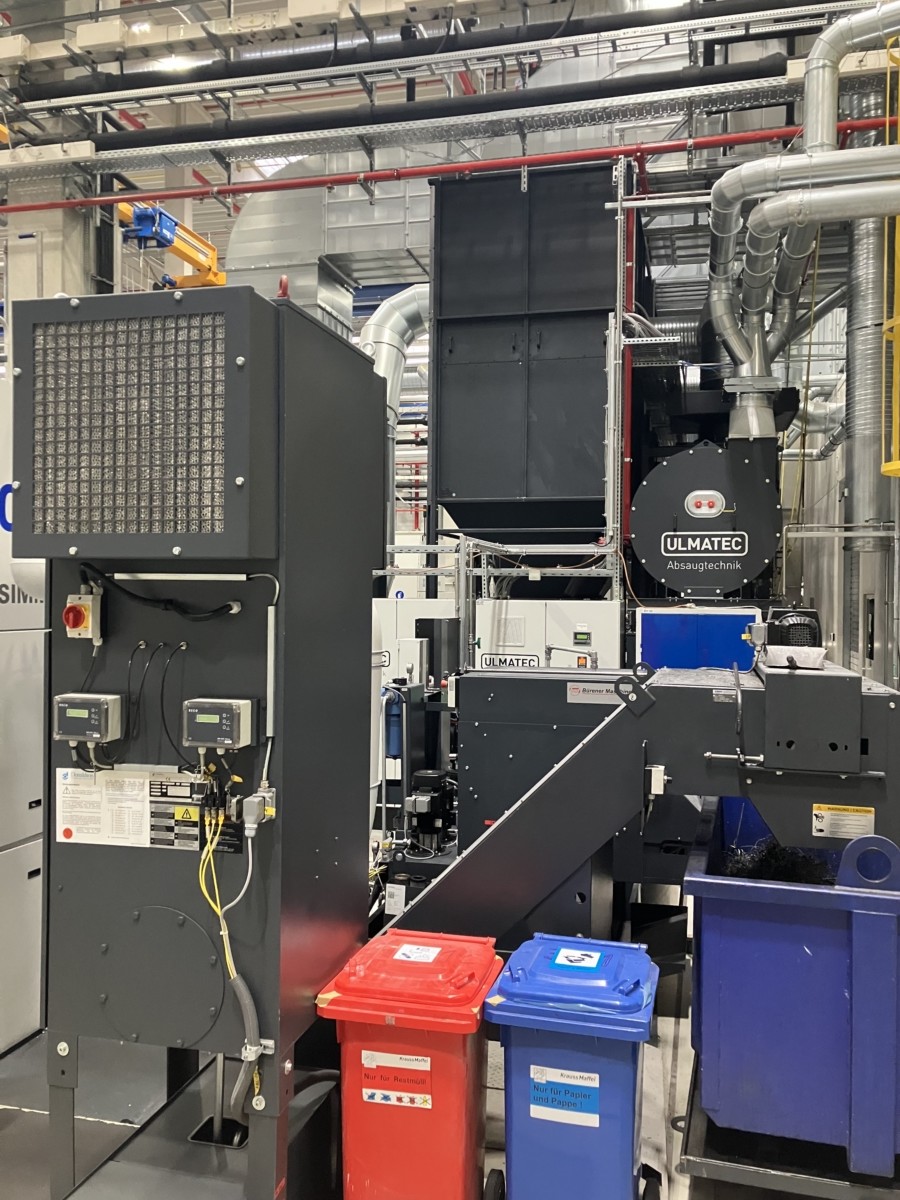

Chip conveyor system

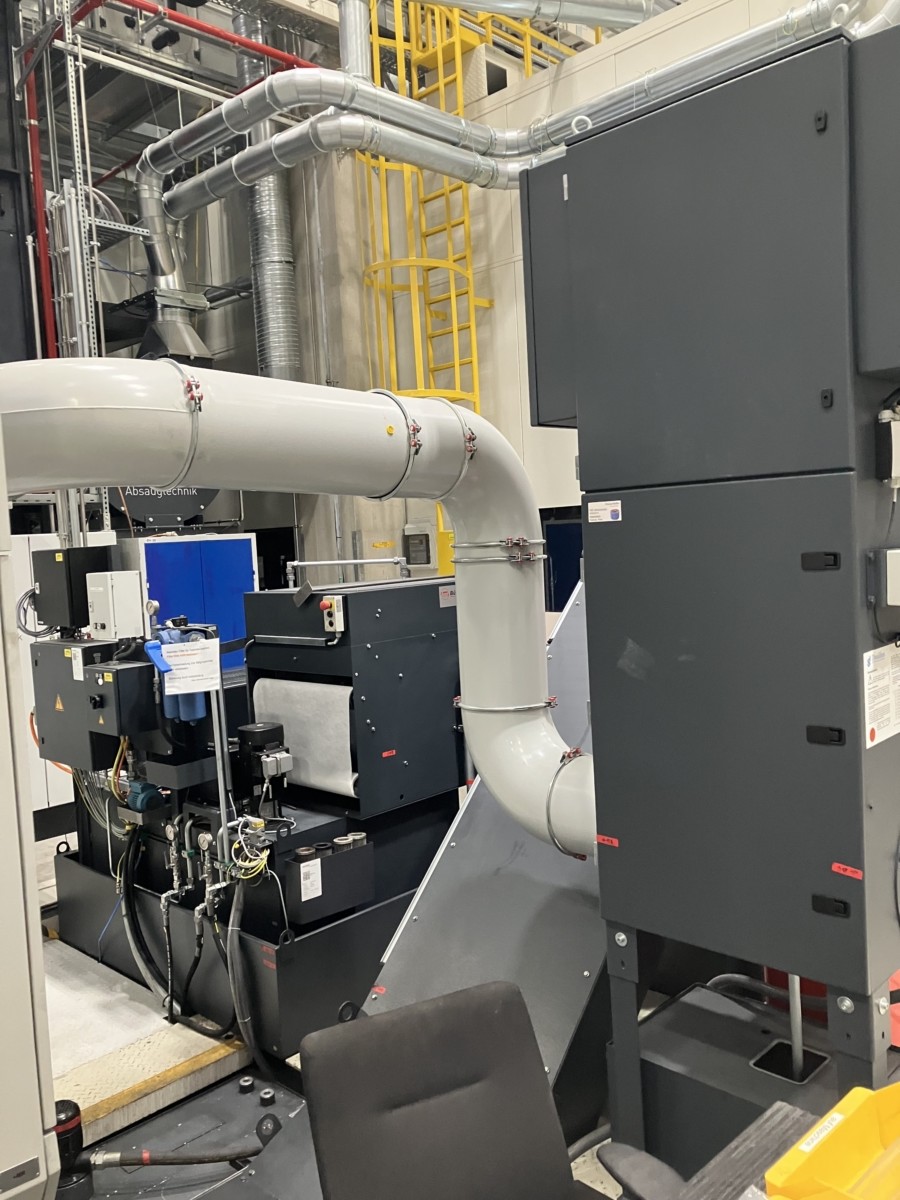

Coolant system 980l tank
and more




Cambios y errores en los detalles técnicos y la información reservada.
