HOJA DE DATOS

DESCRIPCIÓN DE LA MÁQUINA

Número de stock
1022-E06281
Tipo de máquina
Sawing- and Drilling Plant
Marca
VOORTMAN
Modelo
V630/VB600
Año de fabricación
2001

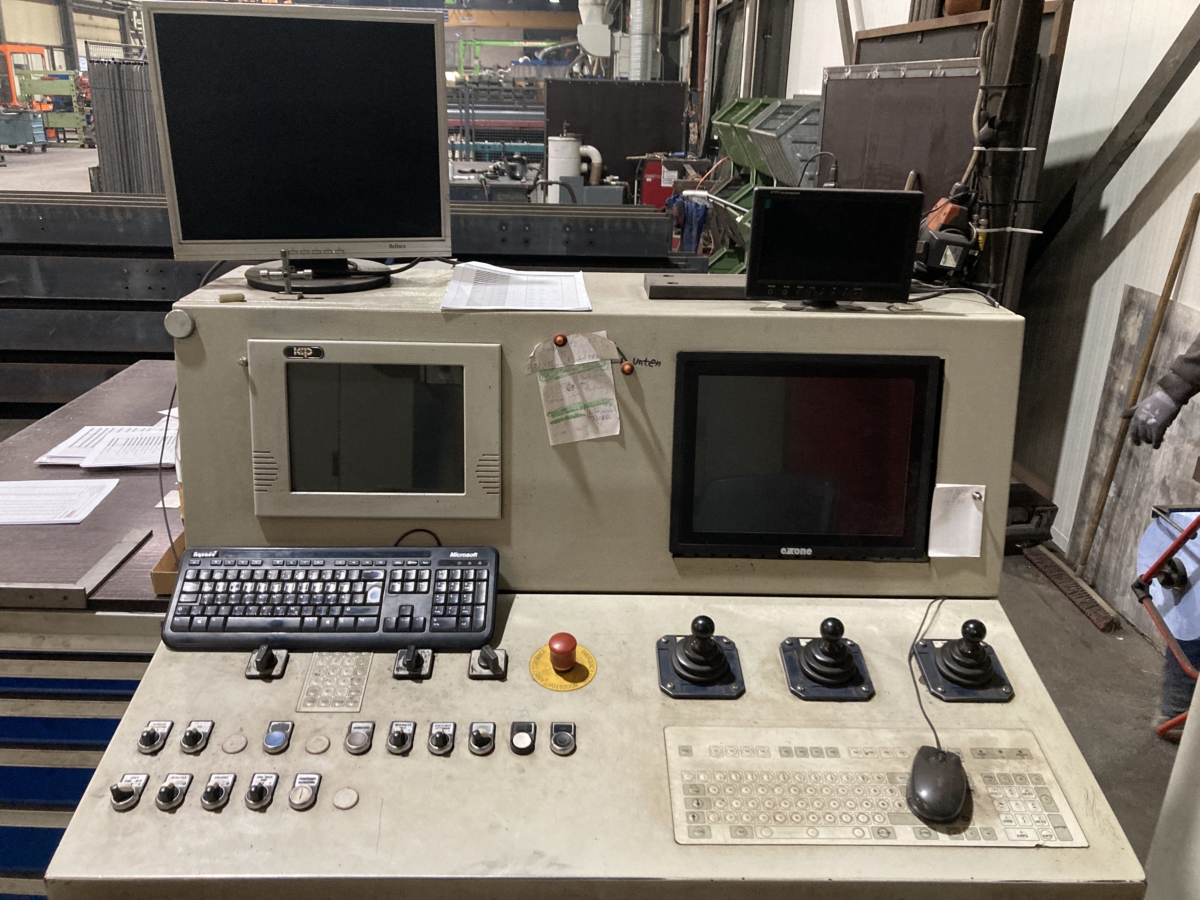

Control
CNC
Ubicación
Germany
País de origen
Netherlands
Tiempo de entrega
Short-dated
Condición de entrega
ex foundation
Precio

DETALLES TÉCNICOS



work piece width
620 mm
workpiece height
310 mm
bore diameter
40 mm
Control
total power requirement
kW
weight of the machine ca.
t
dimensions of the machine ca.
m


DESCRIPCIÓN

Detailed description in the attached pdf File.

TECHNICAL DATA OF THE SYSTEM

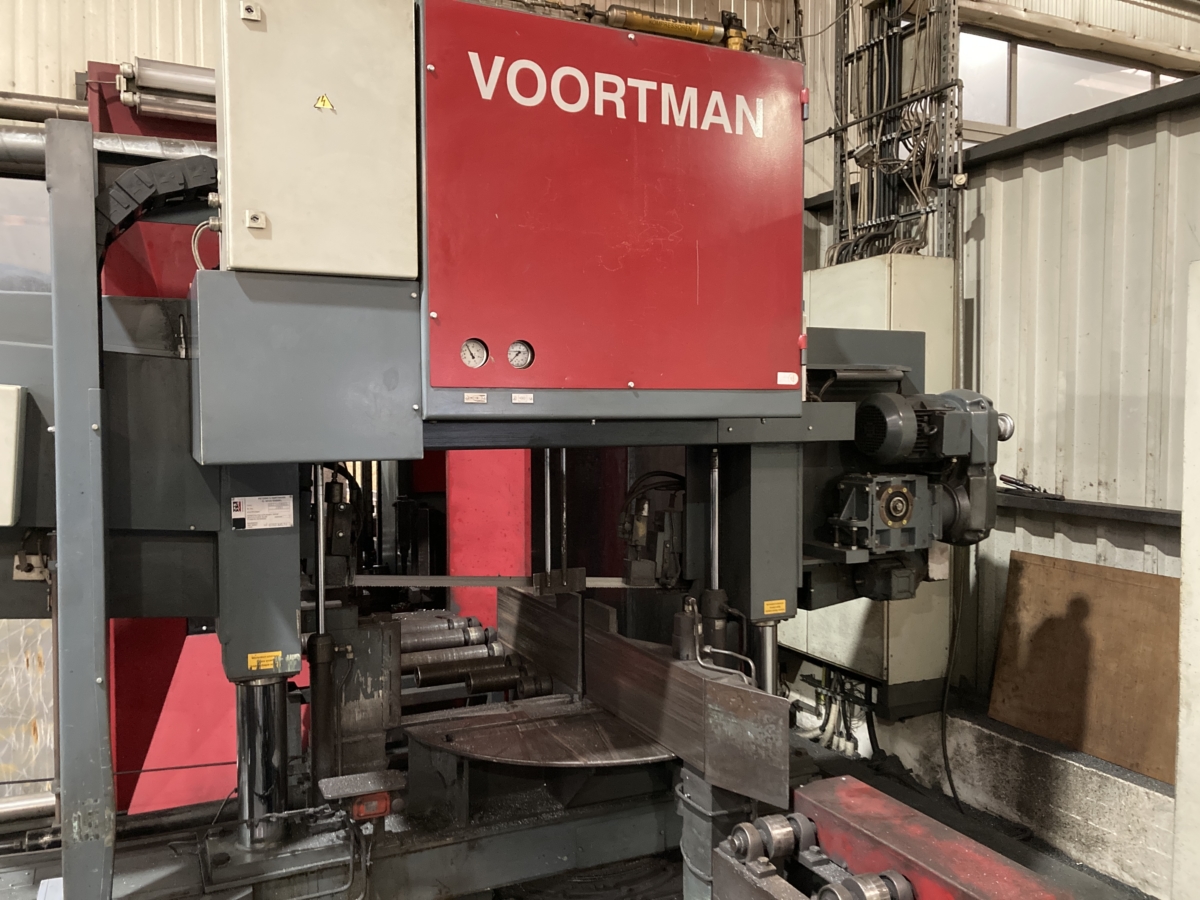

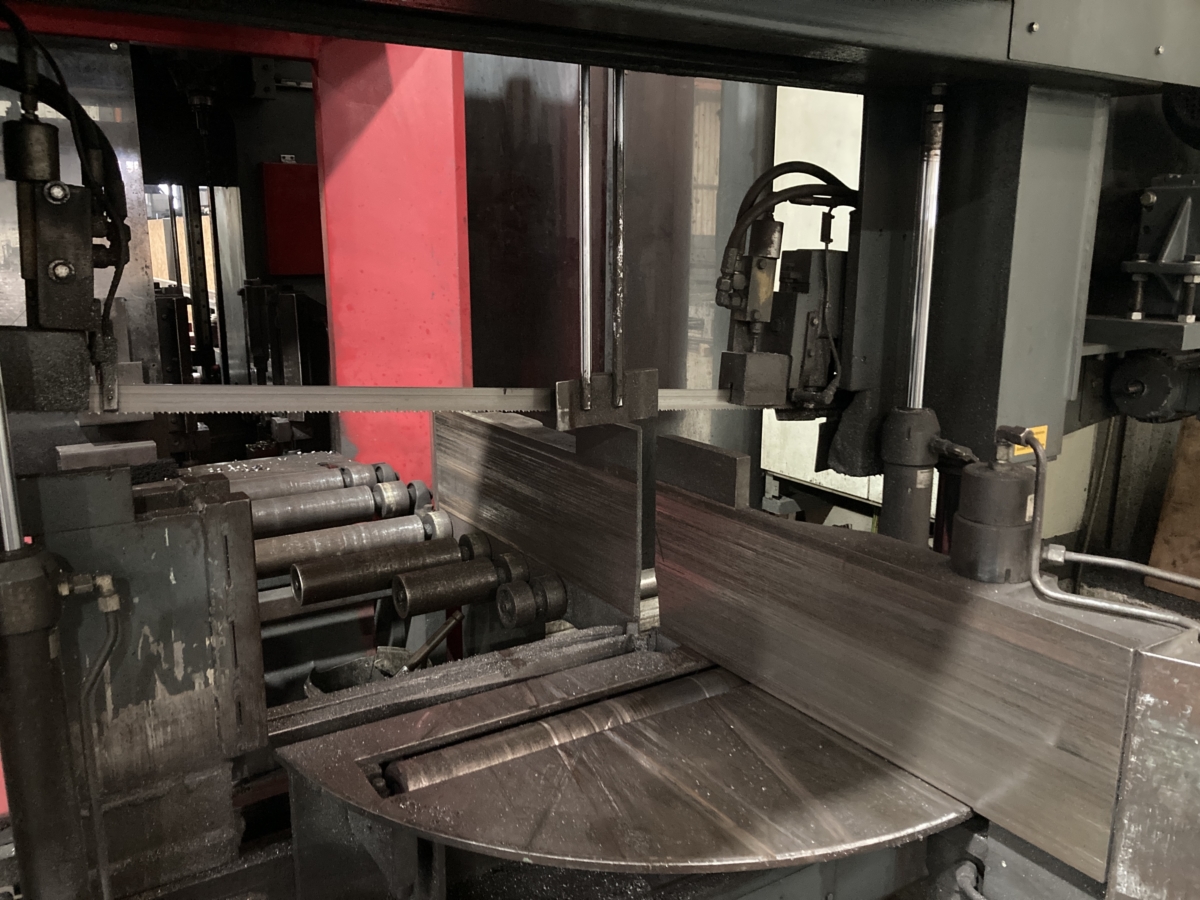

BAND SAW (Type HS 310/620 GBS)
Cutting area flat (HxW)310 x 620 mm
Mitre cuts up to +/- 75° (15°) 310 x 575 mm
Mitre cuts up to +/- 60° (30°) 310 x 490 mm
Mitre cuts up to +/- 45° 310 x 375 mm
Mitre cuts up to - 30° (60°) 310 x 230 mm
Infinitely variable control range 20-120 m/min
Saw motor 4 KW
Saw blade dimensions 6,850 x 34 x 1.1 mm
Hydraulic band tension 18,000 N
Material tension 1,500-10,000 N
Infinitely adjustable cutting force 500 - 1500 N


-Signing unit
Number of slices 1 piece

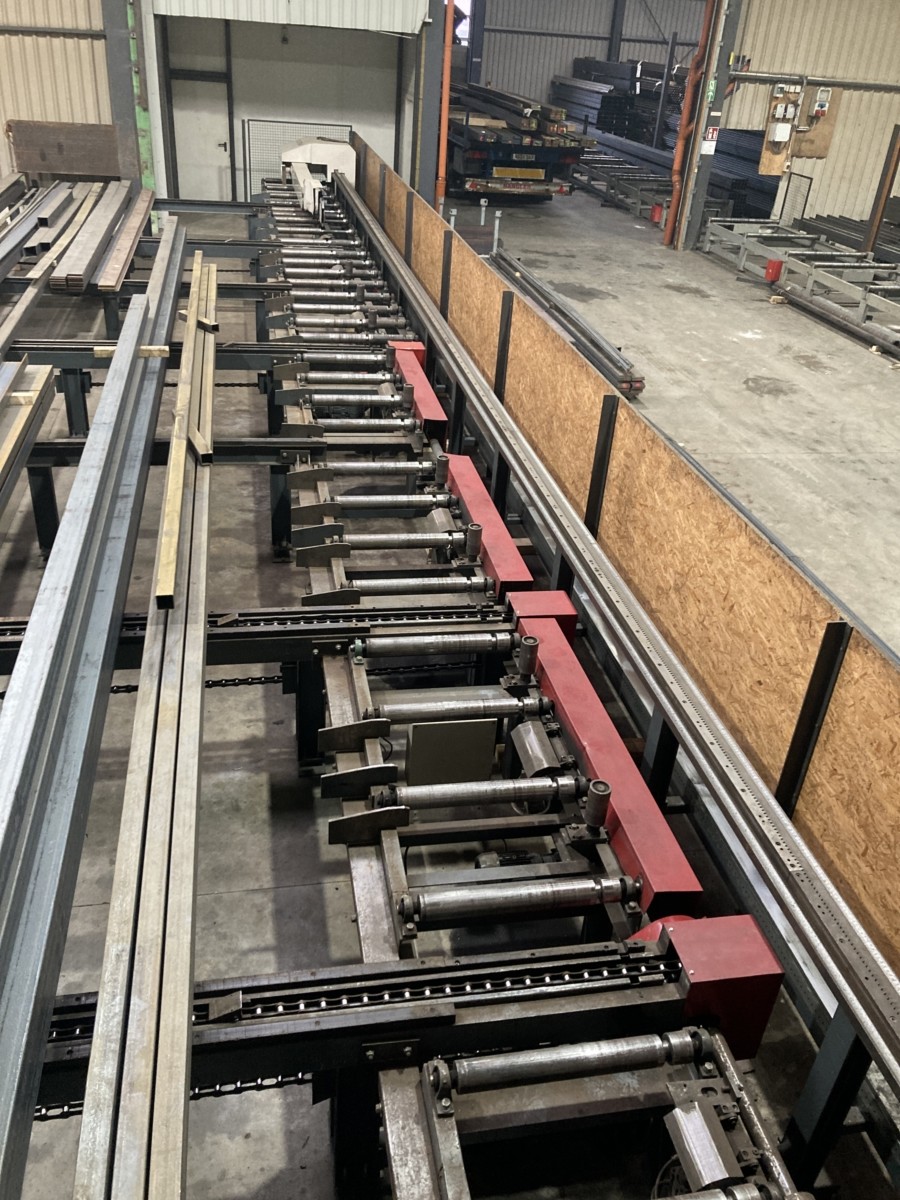

-feed system
Effective web length 19,000 mm
Effective web width 620 mm
Max. Load 290 kg/mtr
-Drag chains Cross transport
Track length 5,000 mm
Number of drag chains 5 pieces
-Length measuring system
Length of measuring track 18,000 mm
-Discharge system
Effective web length 13,000 mm
Effective web width 620 mm
Max. Load 290 kg/mtr
-Drag chains Cross transport
Web length 5,000 mm
Number of drag chains 4 piece translator

INTENDED USE
Minimum and maximum material dimensions (Fe37)
Flat steel Width 80-1,000 mm
Thickness 10-50 mm
Angle steel (HxW) 80x80 - 240 x 240
U-profiles UNP 80- UNP 400
I-profiles IPE 80 - IPE 600
H-profiles HEA 100 - HEM 600
Rectangular tube (HxW) 80 x 80 - 300 x 300
Max. Profile length 18,000 mm
Max. Weight 290 kg/m
Working height 850 mm






Cambios y errores en los detalles técnicos y la información reservada.
