HOJA DE DATOS

DESCRIPCIÓN DE LA MÁQUINA

Número de stock
1022-2428
Tipo de máquina
CNC Turning- and Milling Center
Marca
GILDEMEISTER
Modelo
TWIN 32
Año de fabricación
2007
Control
CNC
Ubicación
Monheim (Germany)
País de origen
Germany
Tiempo de entrega
Immediately
Condición de entrega
Ex warehouse, loaded on truck
Precio

DETALLES TÉCNICOS



turning diameter
100 mm
turning length
320 / 345 mm
control
Siemens 840 D
swing diameter
145 mm
spindle distance
580 mm
slide I:
slide I - cross travel
(X1) 220 mm
slide I - longitudial travel
(Z1) 320 mm
y-axis
+/- 30 mm
rapid traverse
(X/Y/Z) 30/15/30 m/min
slide II:
slide II - cross travel
(X2) 120 mm
slide II - longitudial travel
(Z2) 345 mm
rapid traverse
(X/Z) 30 m/min
Subspindle:
Travel subspindle
(Z3) 380 mm
vertical stroke
(X3) 145 mm
bar material dia.
max. 36 mm
rapid traverse
(X/Z) 20/30 m/min
power capacity
(40/100 % ED) 26/21 kW
spindle turning speed range
40 - 7200 U/min
total power requirement
42 kVA
weight of the machine ca.
5,3 t
dimensions of the machine ca.
m



DESCRIPCIÓN

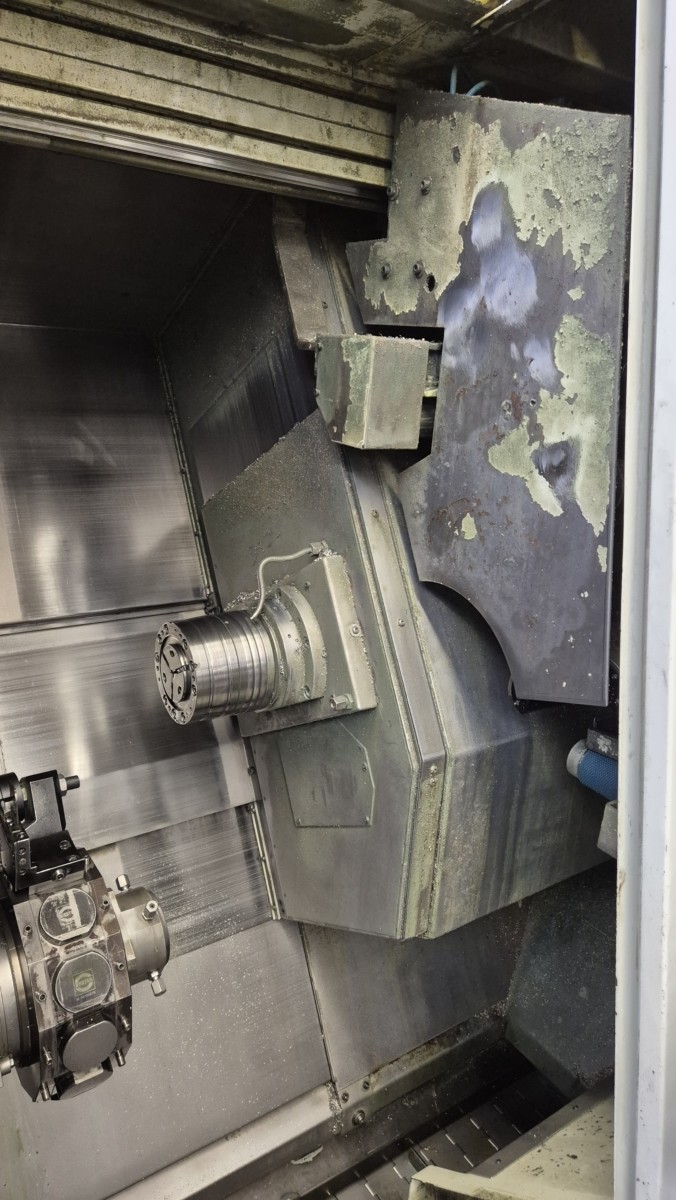

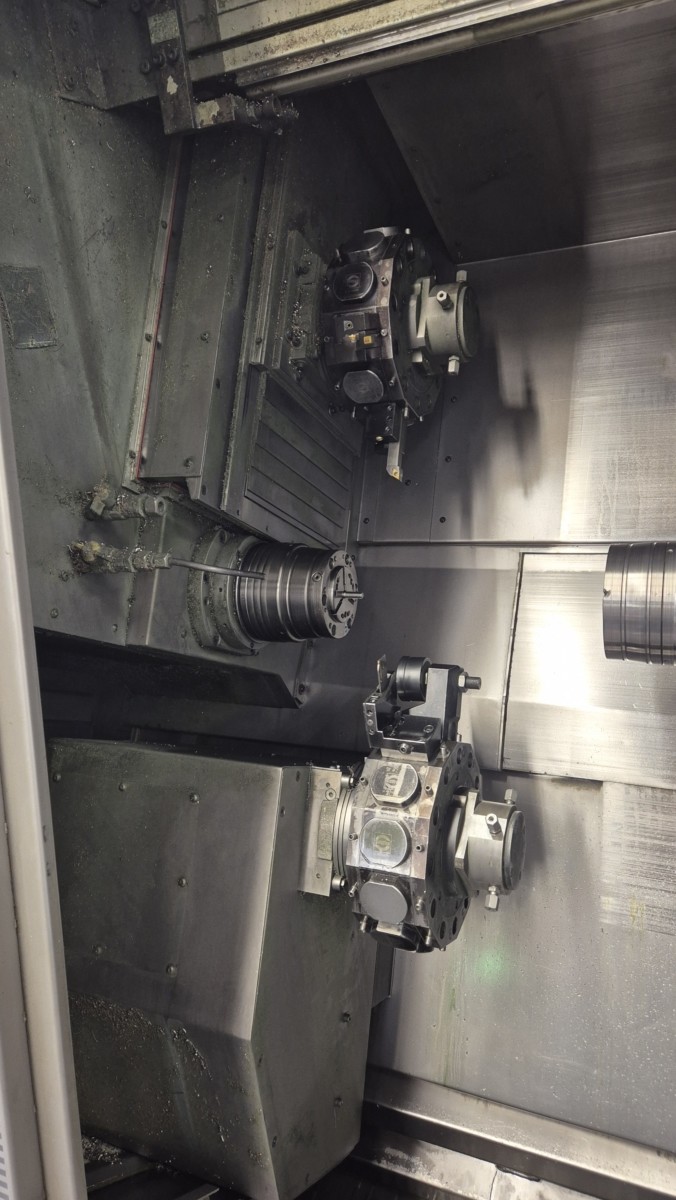

CNC turning and milling centre with Y-axis, 2 turrets, subspindle and
bar feeder.

A total of over 44,000 EUR has been invested in necessary
repairs and maintenance over the last 5 years by DMG MORI (replacement of the main spindle S4, ball-screws, etc.).


Equipment:

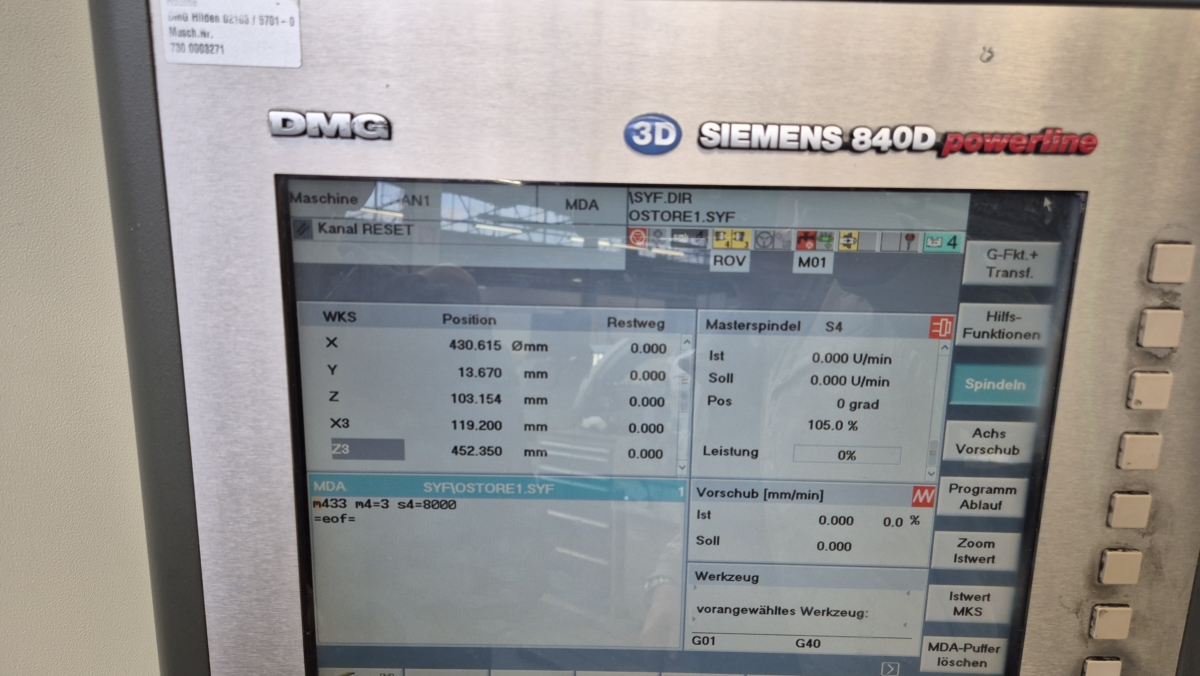

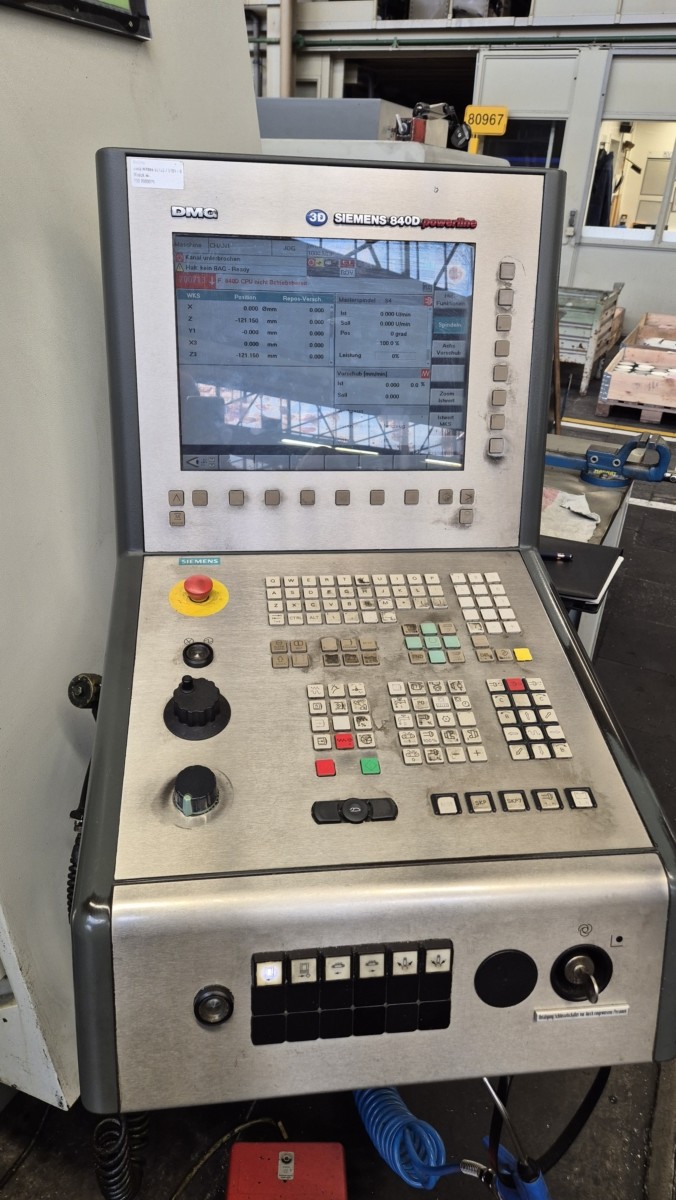

- SIEMENS 840 D powerline CNC control
- Number of controlled axes: 9
- 2 x C-axis
- Y-axis in upper turret
- Pick-up device with gripper

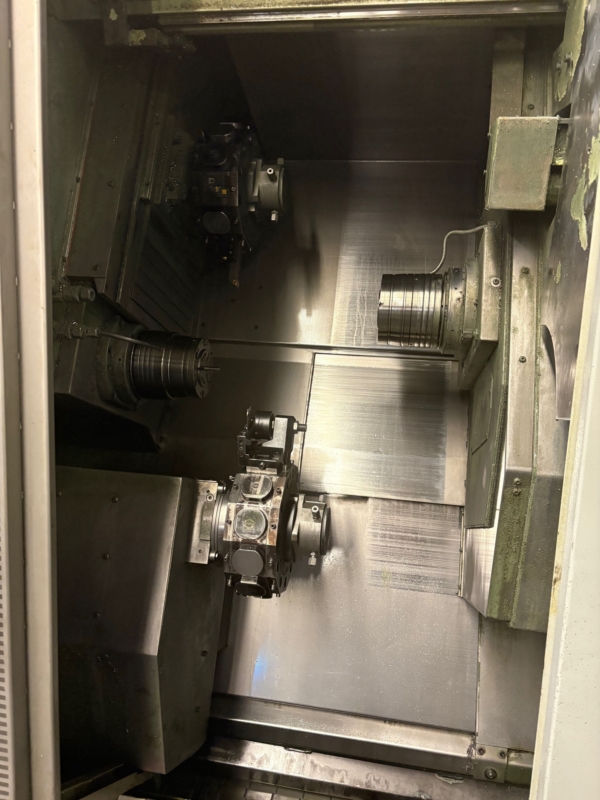

- 2 SAUTER turrets with 12 tool positions (driven), VDI 25
- Tool drive with a speed range of 30 to 6000 rpm

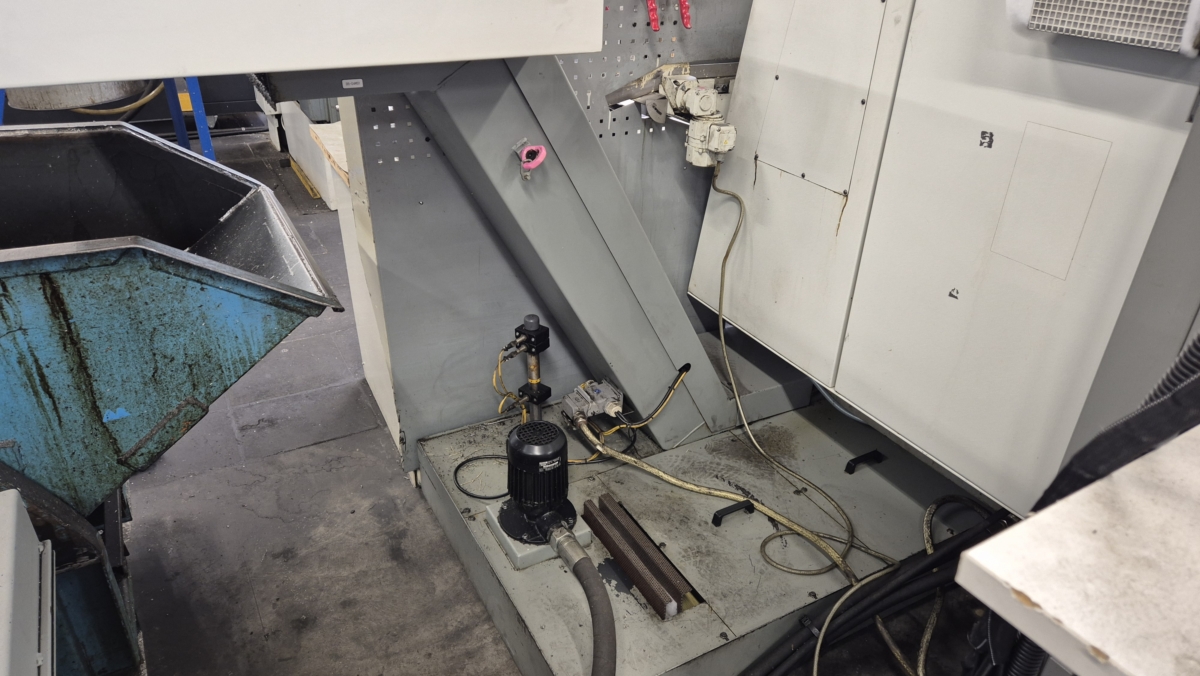

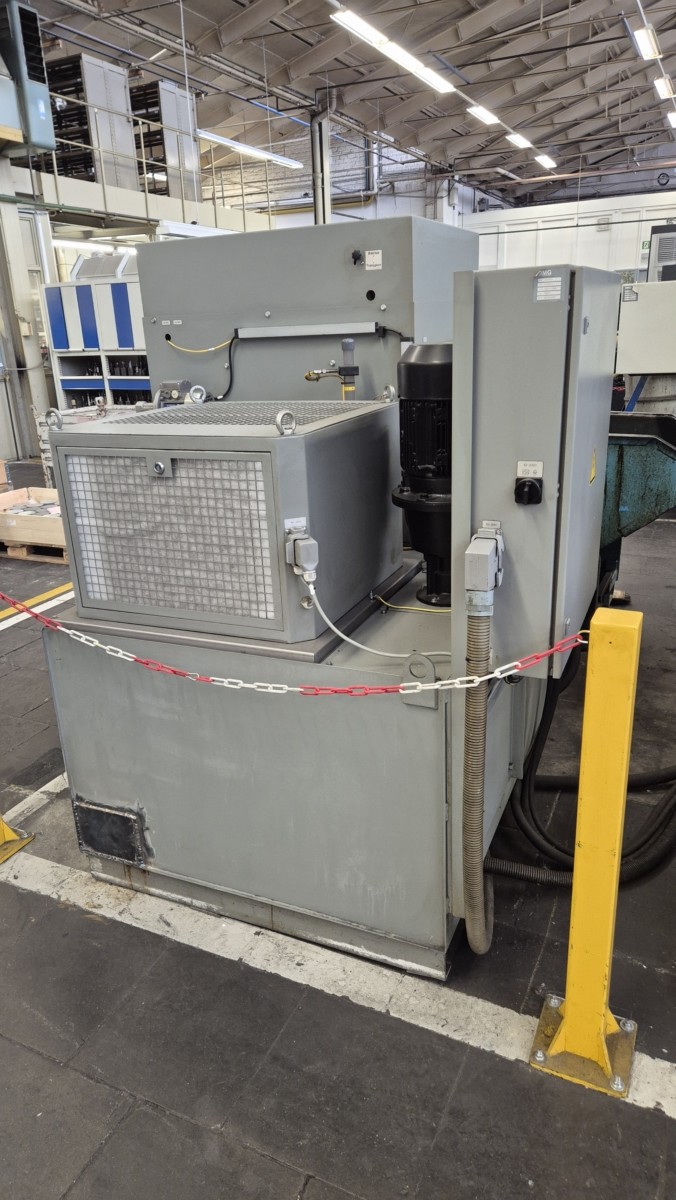

- Coolant system with paper band filter
- Chip conveyor
- Collet chuck on main and subspindle

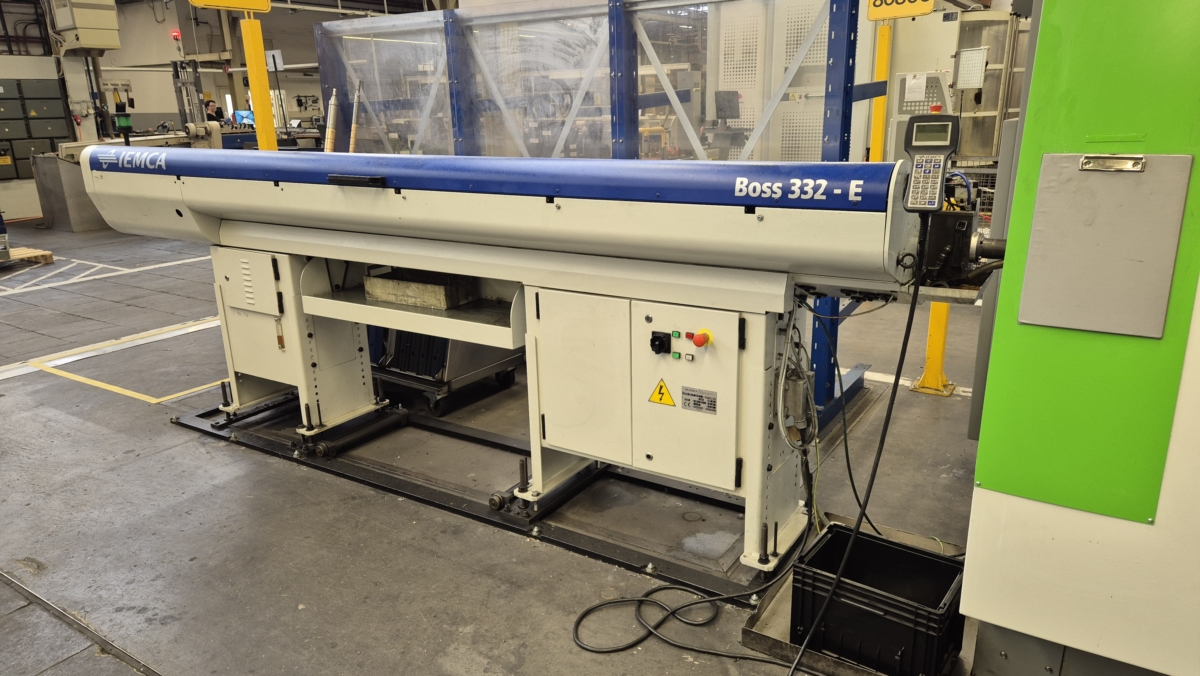

- Bar loading magazine, make: IEMCA BOSS 332 E 32 L, max. bar length 3180 mm




Cambios y errores en los detalles técnicos y la información reservada.
