HOJA DE DATOS

DESCRIPCIÓN DE LA MÁQUINA

Número de stock
1022-2381
Tipo de máquina
Machining Center - Vertical
Marca
DECKEL- MAHO DMG
Modelo

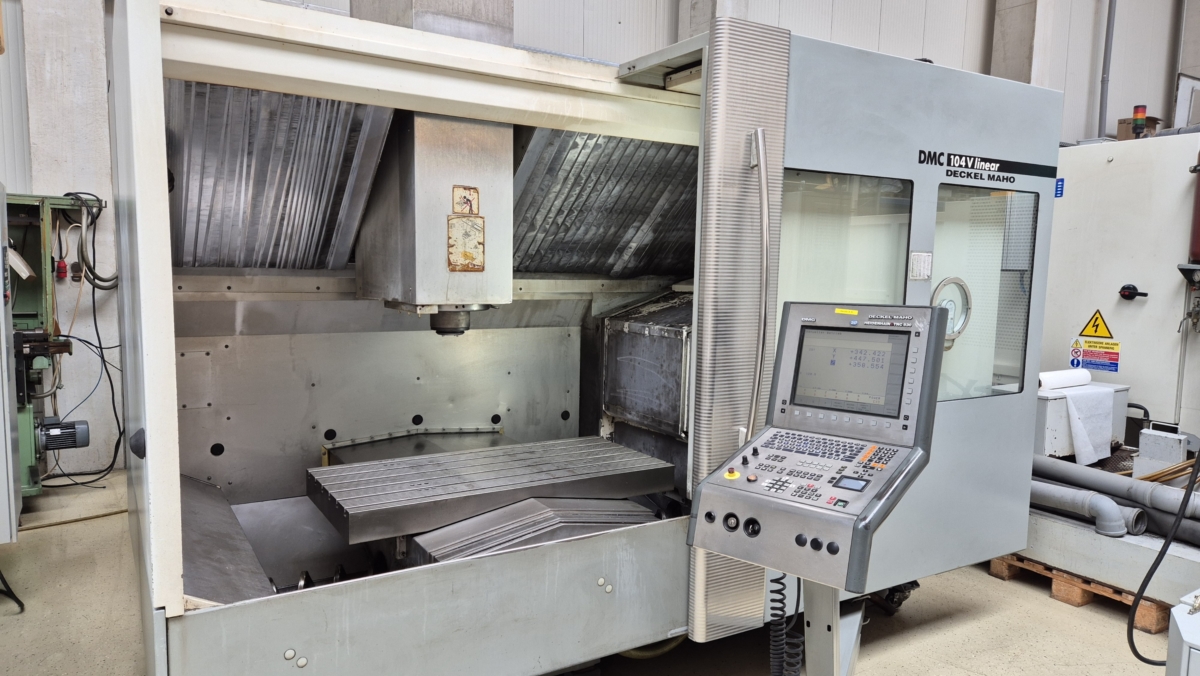

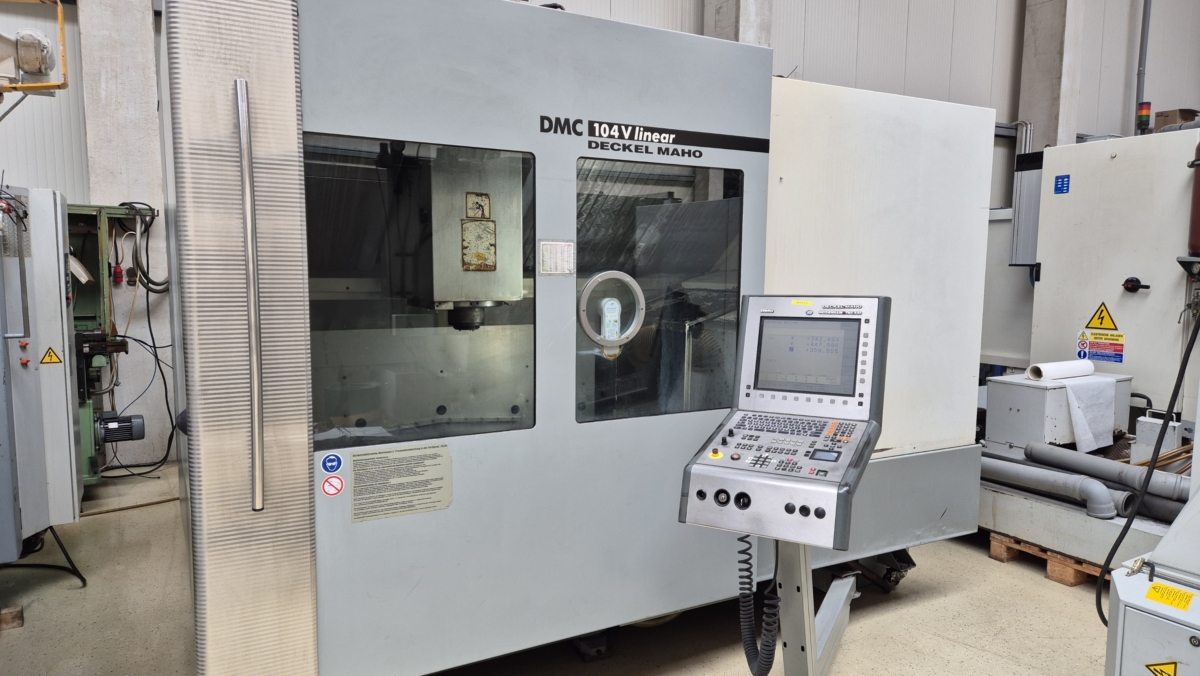

DMC 104 V linear
Año de fabricación
2005
Control
CNC
Ubicación
Monheim (Germany)
País de origen
Germany
Tiempo de entrega
Immediately
Condición de entrega
Ex warehouse, loaded on truck
Precio

DETALLES TÉCNICOS



x-travel
1040 mm
y-travel
600 mm
z-travel
500 mm
Control
Heidenhain iTNC 530

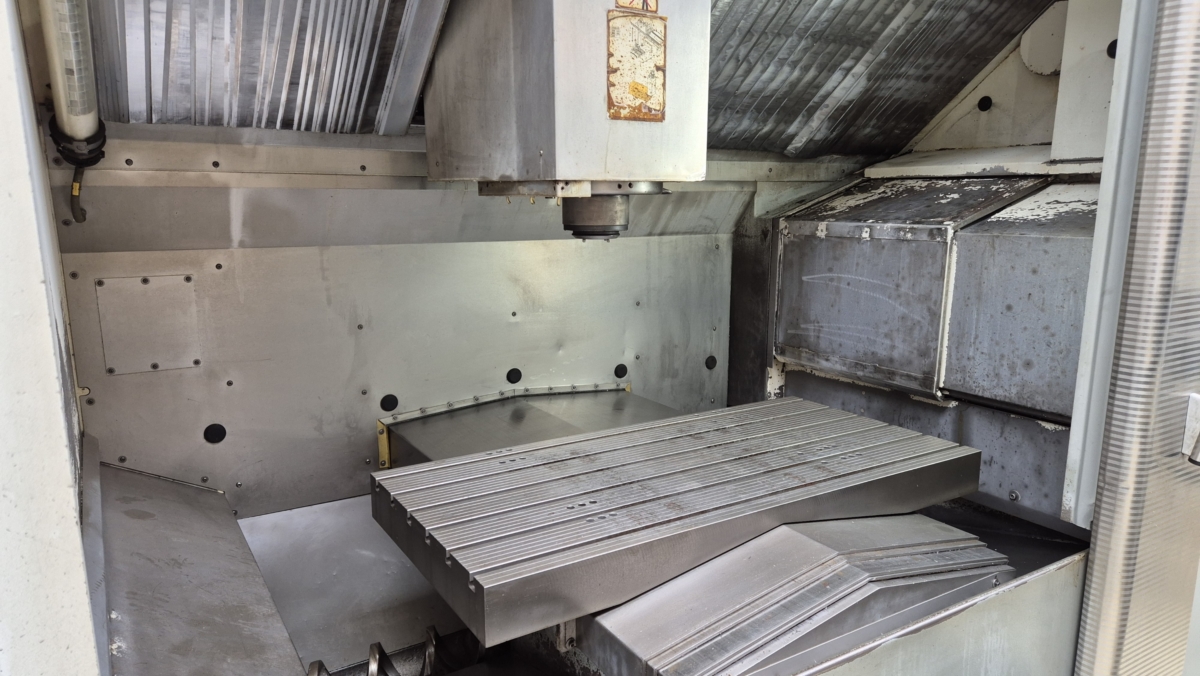

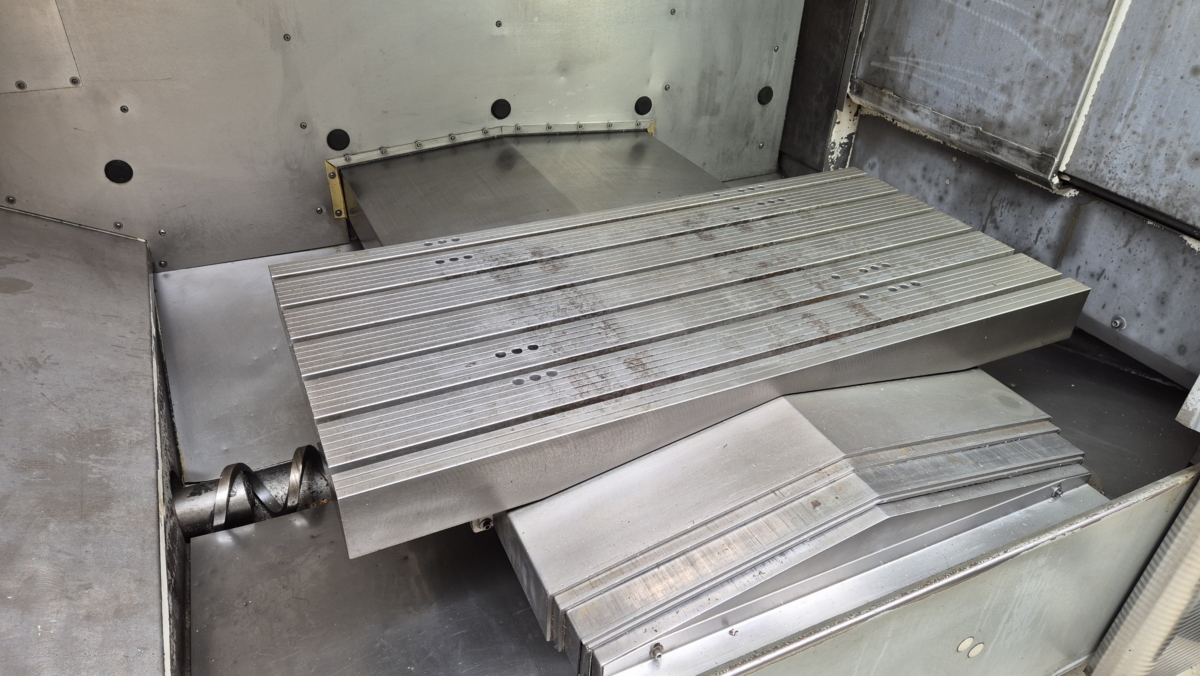

table surface area
1250 x 600 mm
table load
600 kg
tool taper
SK 40
spindle turning speed range
1 - 8000 U/min
max. torque on the spindle
(S1/S6) 140/200 Nm
feed range
40000 mm/min
rapid power traverse in X-and Z direction
70 m/min
rapid motion - y-axis
40 m/min
spindle drive
(100/40 % ED) 13/19 kW
total power requirement
39 kVA
weight of the machine ca.
8,9 t
dimensions of the machine ca.
m


DESCRIPCIÓN

Operating hours 70278
Spindle hours 23335

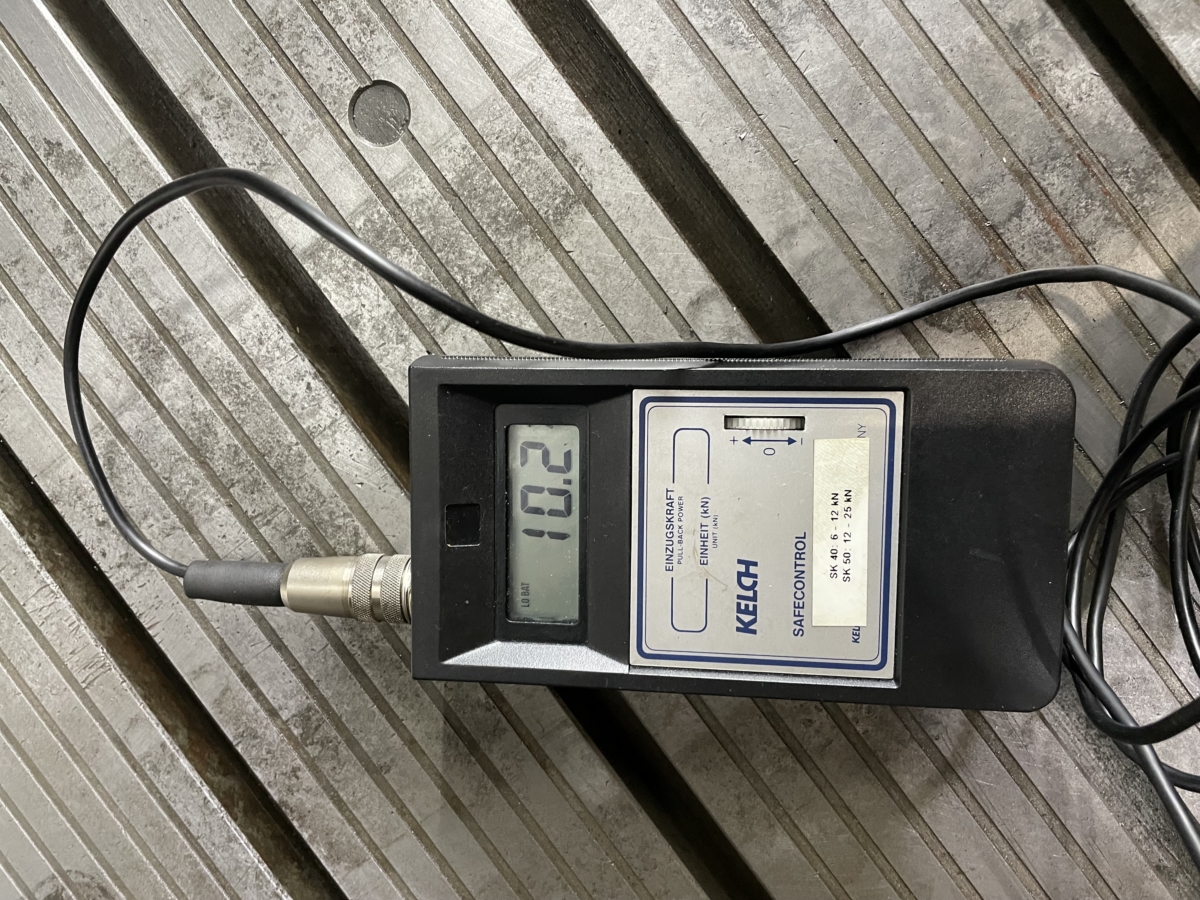

Please note the enclosed geometry measurement report
with the tool pull-in force measurement.


Equipment:

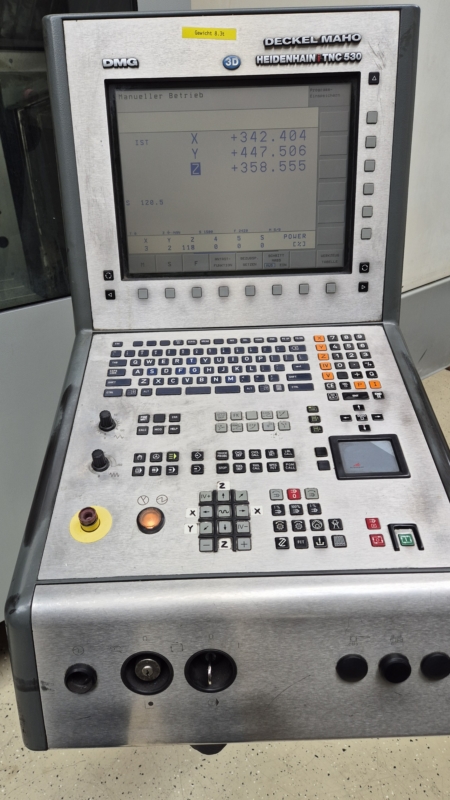

CNC control Heidenhain iTNC 530

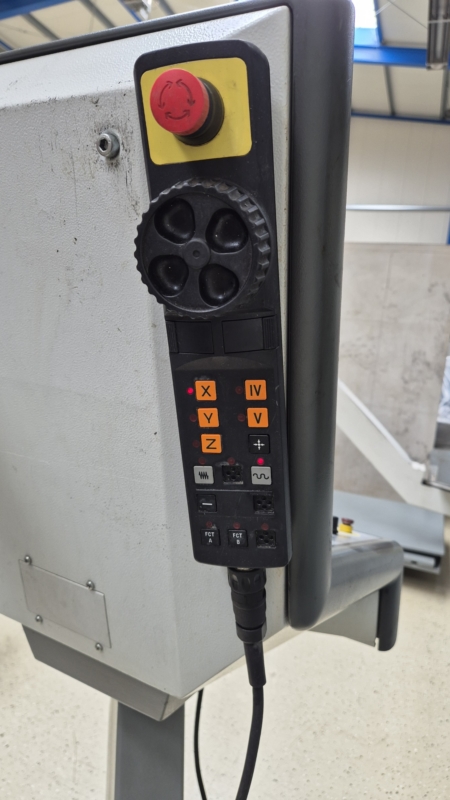

Electronic handwheel Heidenhain HR 410
Motor spindle with increased torque
Direct path measuring system in Y-Z axis
Preparation for measuring probe
30-station tool changer, tool diameter 100/140 mm, length 300, weight 7 kg
ROTOCLEAR
Production package 2
Internal coolant supply through the spindle 20 bar
Coolant system with paper belt filter
Cooling device blown air through the spindle center selectable via M function

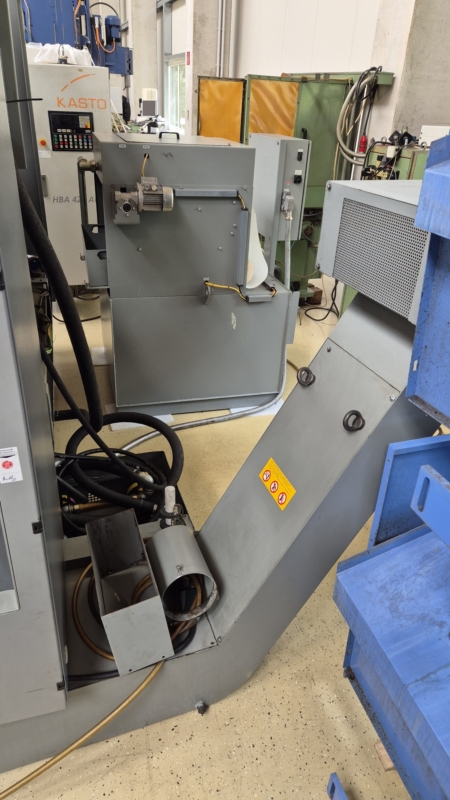

Chip conveyor
Bed flushing
Linear drive in the X-axis
Operating mode 4 Program check with extended manual intervention
Machine documentation

Transport dimensions: 4100 x 2500 x 3000 mm




Cambios y errores en los detalles técnicos y la información reservada.
