HOJA DE DATOS

DESCRIPCIÓN DE LA MÁQUINA

Número de stock
1022-2378
Tipo de máquina
Band Saw - Automatic - Horizontal
Marca
KASTO
Modelo
HBA 420 AU
Año de fabricación
1986
Control
conventional
Ubicación
Monheim (Germany)
País de origen
Germany
Tiempo de entrega
Immediately
Condición de entrega
Ex warehouse, loaded on truck
Precio

DETALLES TÉCNICOS



cutting diameter
420 mm
saw band length
6300 mm
cutting width
420 mm
capacity 90 degrees: square
420 x 420 mm
cutting speed
20 - 130 m/min
dimensions of saw-band
6300 x 38 x 1,3 mm
sawing motor
4,0 kW
Dimensions (LxWxH)
2420 x 3050 x 2150 mm
total power requirement
6,5 kW
weight of the machine ca.
2,9 t


DESCRIPCIÓN

Used fully automatic band sawing machine

Smallest cut-off length 6 mm
Automatic feed length single 600 mm
Feed length multiple 5400 mm
Minimum offcut length single cut 75 mm
Automatic operation 115 mm

* Hydraulic saw blade tensioning
* Infinitely variable cutting feed
* Hydraulic material feed
* Automatic feed with horizontal vice, hydraulic material clamping, infinitely variable
* Coolant device
* Chip conveyor

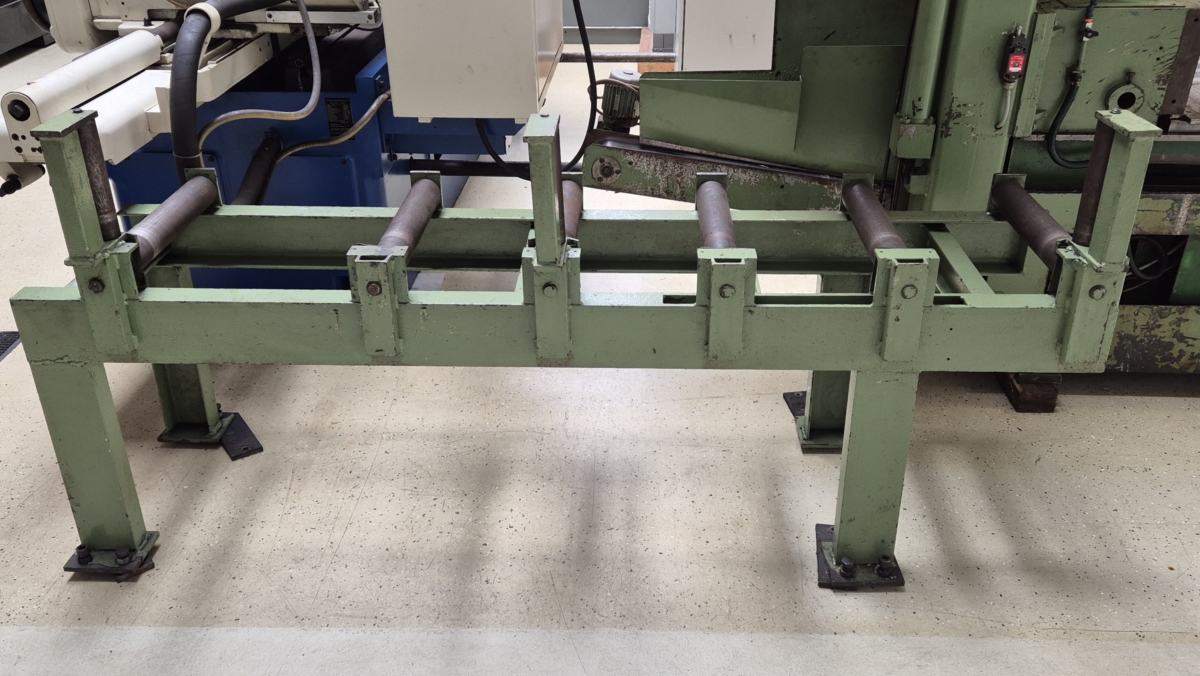

* Roller-type conveyor, approx. 2500 x 500 mm




Cambios y errores en los detalles técnicos y la información reservada.

Documentos y videos

#1022-2378 - Band Saw - Automatic - Horizontal KASTO HBA 420 AU
