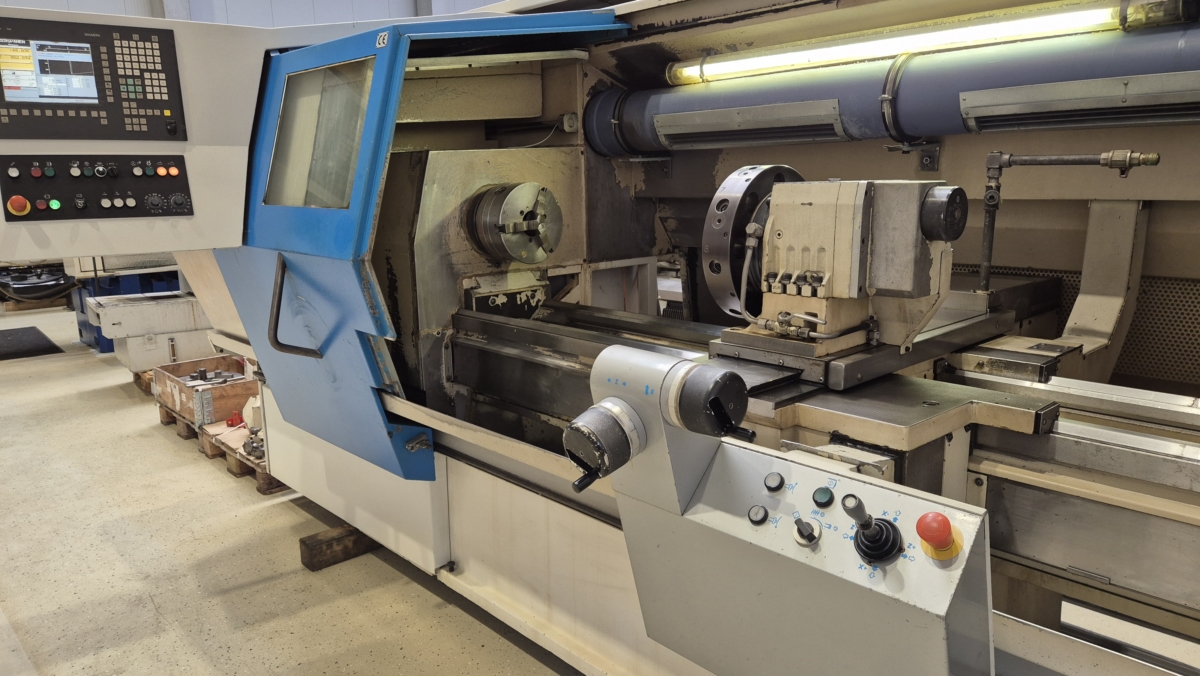

DESCRIPCIÓN DE LA MÁQUINA

Número de stock
1022-2365
Tipo de máquina
Lathe - cycle-controlled
Marca
VDF-BOEHRINGER
Modelo
DUS 560 ti x 1500
Año de fabricación
2006
Control
CNC
Ubicación
Monheim (Germany)
País de origen
Germany
Tiempo de entrega
Immediately
Condición de entrega
Ex warehouse, loaded on truck
Precio

DETALLES TÉCNICOS



turning diameter
570 mm
turning length
1500 mm
control

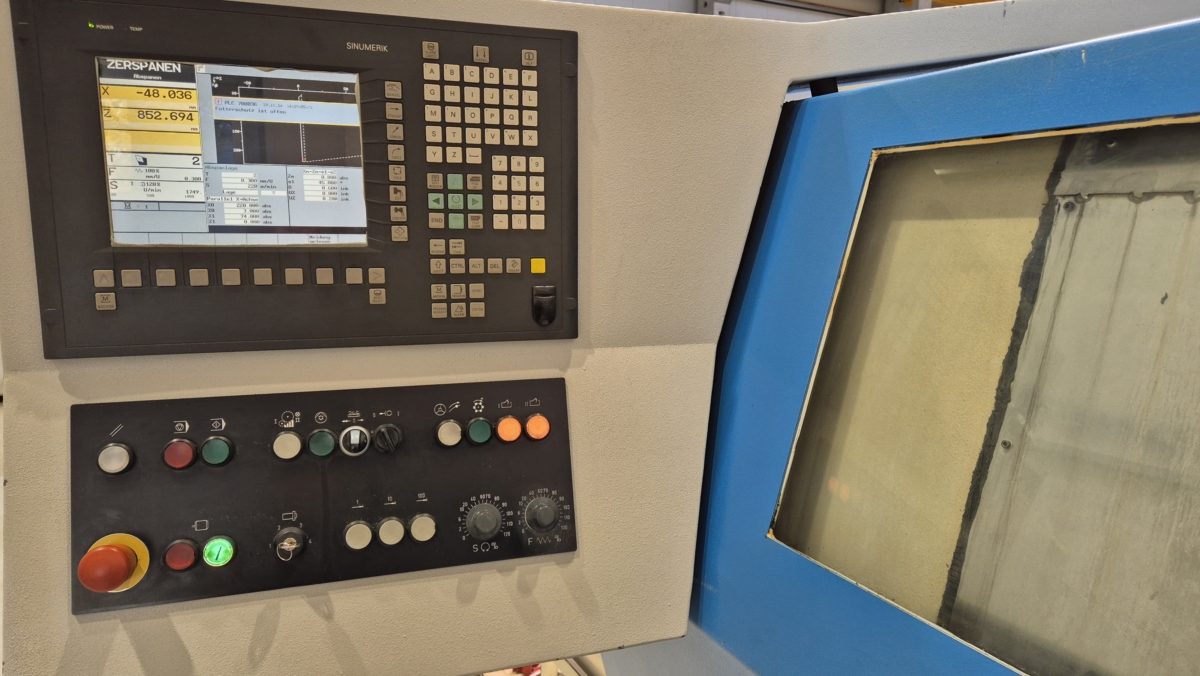

Siemens SINUMERIK 810D
total power requirement
kW
weight of the machine ca.
5,2 t
dimensions of the machine ca.
6648 x 2735 x 1973 mm



DESCRIPCIÓN

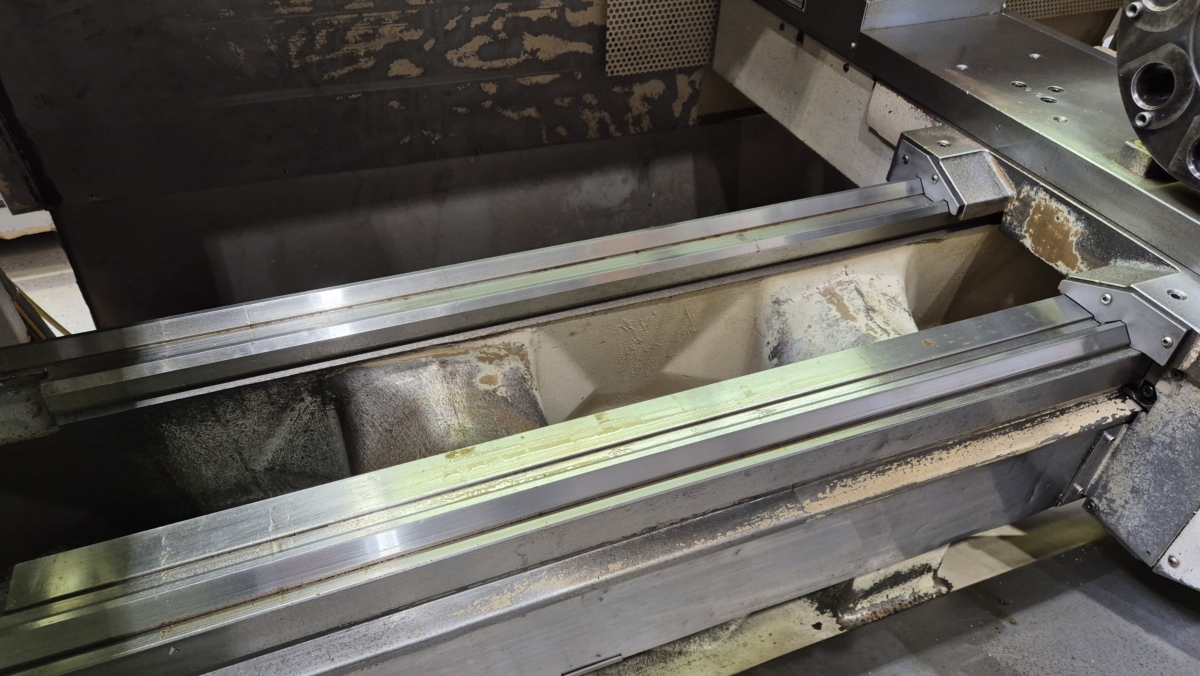

Centre height 570 mm
Centre height over flat track 280 mm
Diameter over bed 570 mm

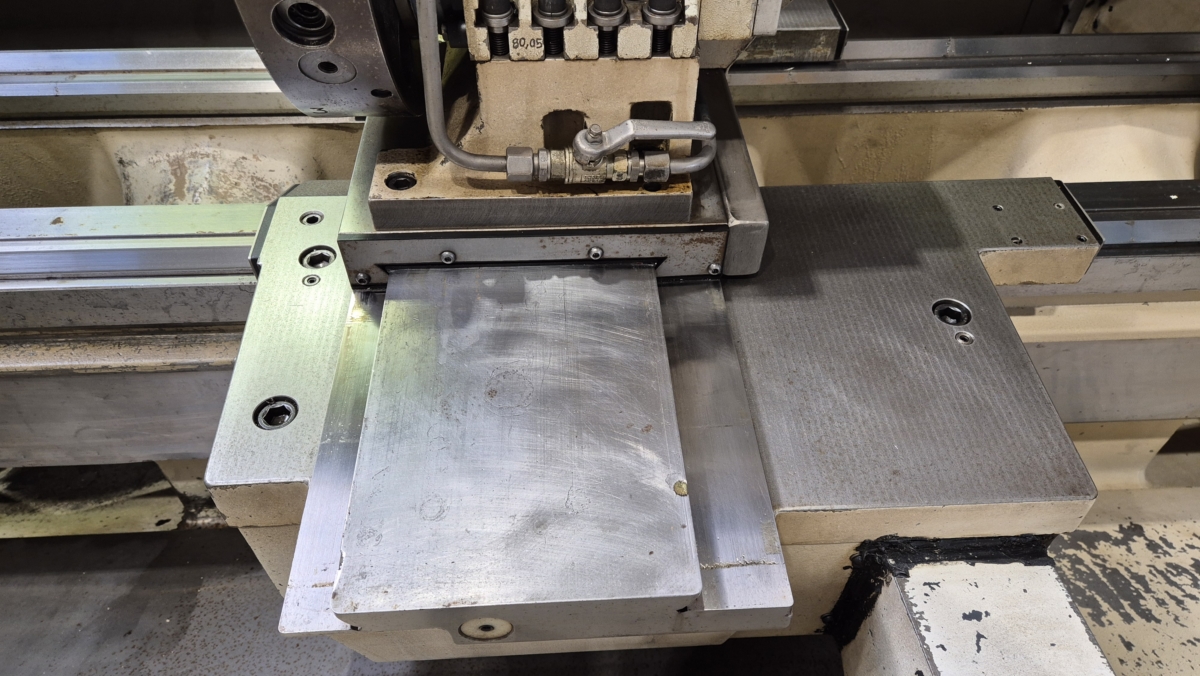

Diameter over cross slide 365 mm
x-axis 345mm
x-axis feed max. 2500 mm/min
z-axis feed max. 5000 mm/min
x-axis rapid traverse max. 5000 mm/min
z-axis rapid traverse max. 10000 mm/min
x-axis feed force 7,100 N
z-axis feed force 12500 N
Feed control 0% - 120%
max. workpiece weight from front edge of clamping device 400 kg
with tailstock 1000 kg
with tailstock and 1 steady rest 1300 kg
with tailstock and 2 steady rests 1600 kg

Main spindle:
Spindle / bore / spindle Ø in the front bearing DIN 52027 - A 8 / Ø62 / Ø100
Inner taper of the main spindle metric 70
Drive power 25 kW 60%; 20 kW 100% ED
Torque max. 1800 Nm / 1400 Nm
2 gear stages
Speed range 3-2500 rpm
Speed range gear step 1: 3-500 rpm
Speed range gear step 2: 15-2500 rpm

Tool:

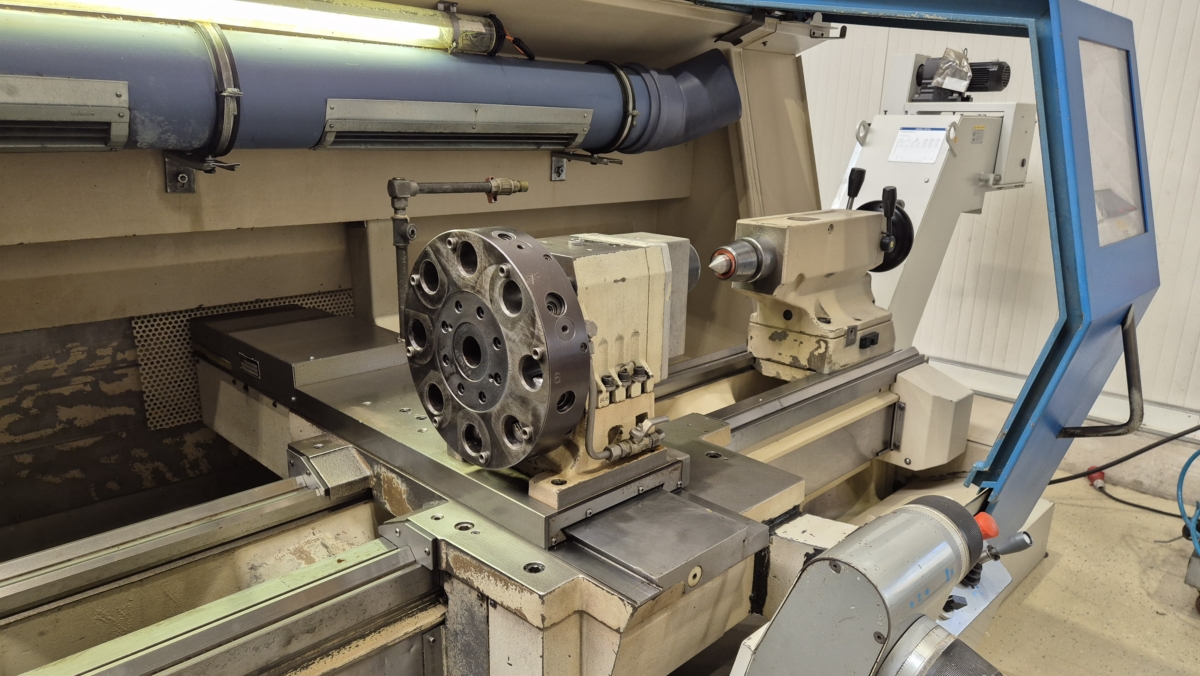

SAUTER 8-station turret: Ø40
Turret no.: 0.5.480.516-089768 ComNo. 06.09216
Tool holders DIN 69880 / Ø50
Lathe tool - cross-section according to DIN 770 h x w 32 x 25

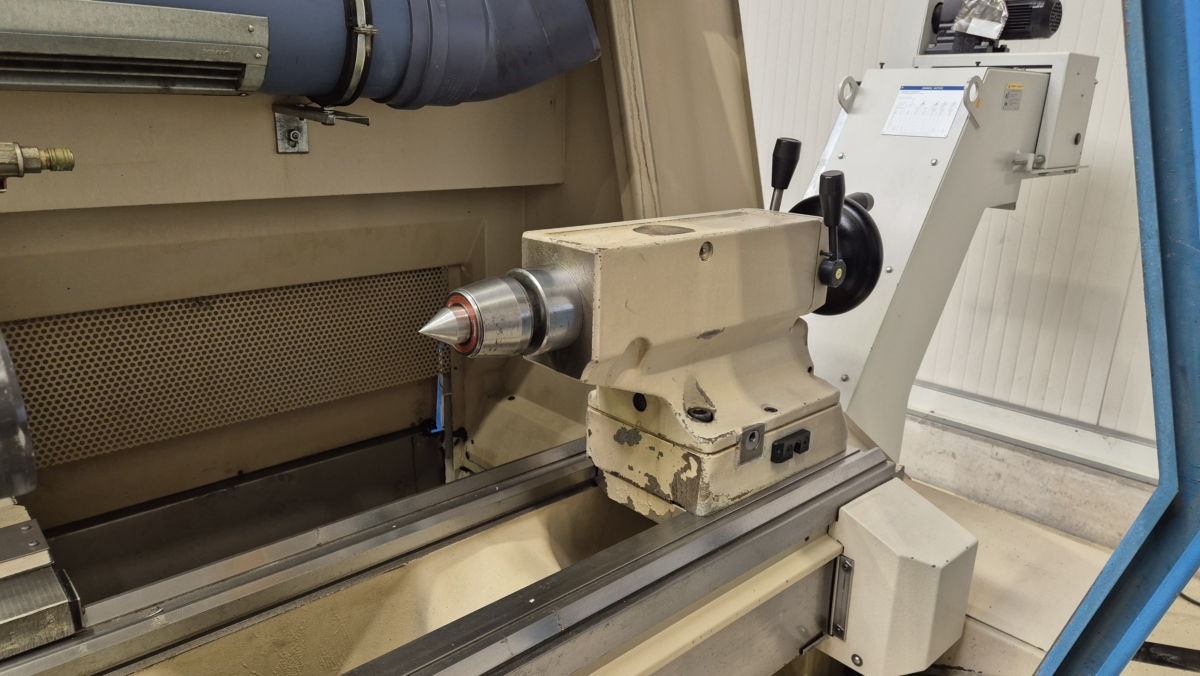

Tailstock:
Quill diameter 100 mm
Inner taper quill MK 5
Quill travel 190 mm

Cooling:
frequency controlled 1 bar/10 ltr - 4 bar/20 ltr; 2-stage programmable

Dimensions:
max. machine size (without chip conveyor) 4300 x 2131 x 1973 mm
Space requirement (incl. chip conveyor) 6648 x 2735 x 1973 mm

Accessories:
3-jaw chuck, diameter 250 mm
chip conveyor, make KNOLL, built 2015

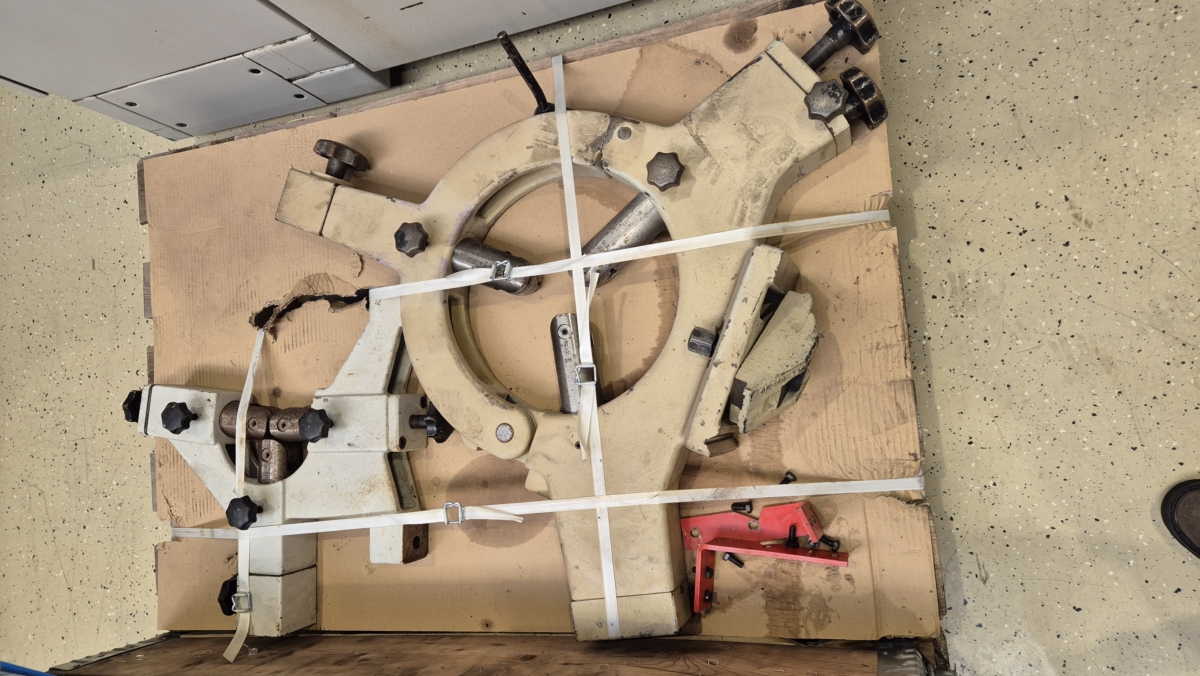

fixed steady rest
moving steady rest
various tool holders
