HOJA DE DATOS

DESCRIPCIÓN DE LA MÁQUINA

Número de stock
1022-H08970
Tipo de máquina

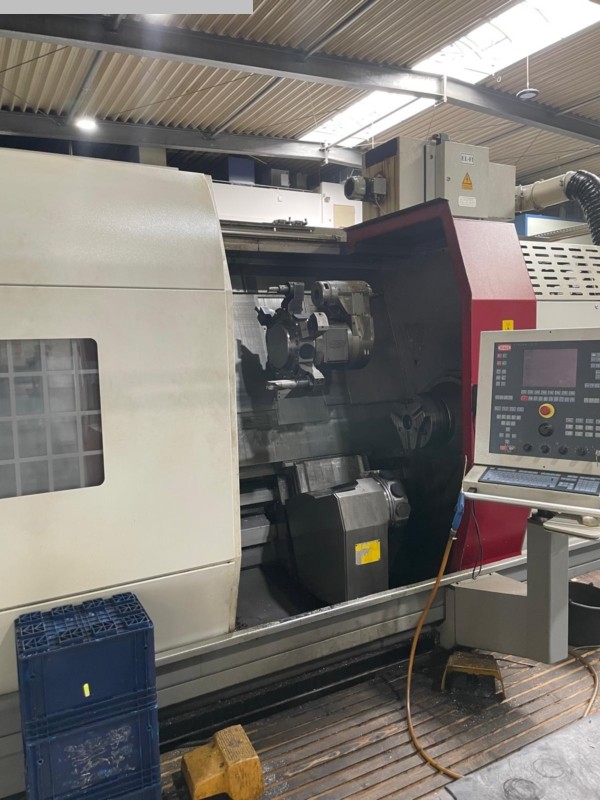

CNC Turning- and Milling Center
Marca
TRAUB
Modelo
TNA 700 Flex
Año de fabricación
2006
Control
CNC
Ubicación
Germany
País de origen
Germany
Tiempo de entrega
to be discussed
Condición de entrega
Ex Works
Precio

DETALLES TÉCNICOS



turning diameter
700 mm
turning length
1250 mm
control
TX8_i
total power requirement
kW
weight of the machine ca.
15 t
dimensions of the machine ca.
6,0 x 2,5 x 2,2 m


DESCRIPCIÓN

CNC control TX8_i
9 CNC axes (X1, X2, Z1, Z2, Y1, B1, B2, C1, C2)
Software functions:
Tool life monitoring,
Polyform, 3D-Helical IP, synchronous threads without L compensation,
WOP Traub Win_Flex IPS incl. Mouse,
MAIN SPINDLE (direct drive, adjustable hollow shaft motor)
Spindle connection A-11 > DIN 55026/ 55021
Alignment and switching device
Hollow clamping cylinder > spindle passage max. 102 mm speed max. 3,000 rpm
Front bearing dm170 mm
Drive power 100/40% ED 53 / 68 kW, torque 675 / 900 Nm
C-axis resolution 0.001 °
Spindle locking for extreme roughing work 2.5 °
Counter spindle (direct drive, adjustable hollow shaft motor)
Spindle connection A-11 > DIN 55026/ 55021
Alignment and switching device
Full clamping cylinder SINS-140 > Spindle passage max. 102 mm Speed ??max.
3,000 1/min
Drive power 53 KW
Front bearing dm170 mm
Power 100/40% ED 53 / 68 kW Torque 675 / 900 Nm
C-axis resolution 0.001 °
12-way TOOL CARRIER Top
(X1, Z1, Y1, B1, B2, C1, C2)
All stations with milling drive
Driven speed Tools 6,000 rpm, torque 35 Nm
X-axis travel (glass scale) 320 mm
Z-axis travel (encoder) 1,250 mm
Rapid traverse X/Z 15 / 30 m/min
Feed force X 12 / Z 15 KN
Ball screw Ø in X-axis 40 mm
Ball screw Ø in Z-axis 50 mm
10-way TOOL CARRIER Below
(X2, Z2, B2, C1, C2)
All stations with milling drive
Driven speed Tools 6,000 rpm, torque 35 Nm
Working path X-axis (glass scale) 212 mm
Working path Z-axis (encoder) 1,250 mm
Rapid traverse speed X/Z 20/ 40 m/min
Feed force X 8.6 / Z 14 KN
Tool holder system DIN 69880-40x63
Ball screw Ø in X-axis 40 mm
Ball screw Ø in Z-axis 50 mm
Dimensions: L=6,000mm, D=2,500mm, H=2,200mm
Weight 15 t
Accessories:
Automatic sliding door with protective strip, hydraulic. Activated
Clamping device flushing function from the outside
2 3-jaw chucks dm 315mm on main and counter spindle
High-pressure flushing and fine filter
Oil mist extraction and filter system SH 2000 PEV
Hinge belt chip conveyor
WZG package
5 pcs. WZG holders HSK-63 for milling spindle,
3 pcs. fixed turning holders VDI-40, for each turret,
2 pcs. AGWs Axial VDI-40, for each turret,
2 pcs. AGWs Radial VDI-40, for each turret,




Cambios y errores en los detalles técnicos y la información reservada.
